Take Control of Reason 6 with the Panorama P4!

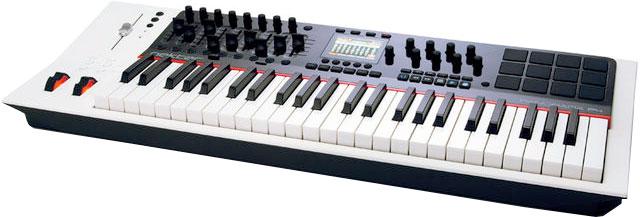

Take control of Reason 6 like never before with the Nektar Panorama P4 control surface. Created especially for Reason 6, the Panorama P4 is ready take your music creation to another level. Every control feature in Reason 6 is accessible via a large selection pads, faders, encoders, and buttons on this 49-key portable keyboard. A built-in LCD screen even shows you what parameter you are controlling in real time. Take control of Reason 6 like never before with the Nektar Panorama P4 control surface.

Command Reason from a single device

Channel strip control

Reason instruments at your fingertips

Command Reason from a single device
The Nektar Panorama P4 was designed to be the ultimate controller for Reason 6. Every function is accessible from the Panorama P4. This isn't a generic controller, this is hardware built just for Reason. A custom communication protocol was designed to give you unlimited access to Reason 6. From mixer to channel strip to transport controls and instruments, the Nektar Panorama P4 is your complete control surface solution.

Channel strip control
Complete channel strip control is built into the Nektar Panorama P4. Reason 6's channels trip is quite long, but the Panorama P4 covers the entire thing. You have access to dynamics, EQ, inserts, sends, and more. A large LCD screen lets you see what functions you are using and what the settings are in real time. You also get a single motorized fader that can be used to control and set your channel automation.

Reason instruments at your fingertips
Take control of Reason 6's vast collection of virtual instruments with the Nektar Panorama P4. The 49-key keyboard lets you play synths like a pro, and the 12 pads give you command of percussion patches, loops, and more. Create, record, and perform all the parts of your tunes with the Nektar Panorama P4 control surface.

Keyboard

49 or 61 note weighted (semi-) velocity-sensitive keyboard w/aftertouch

5 velocity curves plus fixed

Pitch bend & Modulation assignable wheels

Octave shift buttons

PB1/2 buttons

4 keyboard zones programmable with controller filters and program changes

5 keyboard maps store all settings

Preset Controls

16 encoders

9 45mm faders

10 assignable LED buttons

11 dedicated transport buttons

20 preset locations store all settings including links to keyboard, pad and F-keys maps

System Requirements

Mac OS X 10.6 or higher, Windows Vista, 7 & 8 compatible (Windows XP is not supported at this time).
Reason 5, 6 and 6.5 supported

*Two USB ports or external USB power supply required to power entire unit. One USB port powers entire unit with the exception of the motorized fader

Pads

12 pads with velocity and pressure sensitivity

7 velocity curves

Note-learn,

Scale mode with 30+ scales and interval setting

Velocity spread functions spreads the selected pad assignment over all 12 pads, at different velocity levels

Transpose and Octave shift in both pad-map and scale mode

Pads freely assignable in Reason mode

Load or Save to any of 20 pad maps

F-Keys

11 assignable Function Keys (accessible using shift and tranport keys)

Load or Save to any of 10 F-Keys maps

F-Keys assignable even in 3 Reason modes

Weight & Dimensions

Panorama P4

Dimensions: 33 2/8"(L) x 13"(D) 3 6/8"(H)

Weight: 14 Lbs

Panorama P6

Dimensions: 39 5/8"(L) x 13"(D) 3 6/8"(H)

Weight: 17 Lbs

Additional

100 mm ALPS motorized fader*

6 dedicated assignable navigation buttons

ASCII/QWERTY macros assignable to buttons and pads

3.5" high-resolution TFT display provides incredible navigation and user visibility

Incredible Reason implementation that lets you use Reason, as if it's hardware

4 modes when used with Reason switch between Mixer, Instrument, Transport and Internal

Presets and setup files for major DAW's and VIs

Connections

Expression pedal 1/4" jack input (pedal not included)

Foot switch (sustain) 1/4" jack input (pedal not included)

MIDI output

USB port for communication with computer

USB Micro B connector for extra and external power*
