UPC/EAN #615104085893     MPN #008589

$1674.00

Save 20.2%, MSRP $2099.00
Financing available
Free shipping in Canada. Conditions

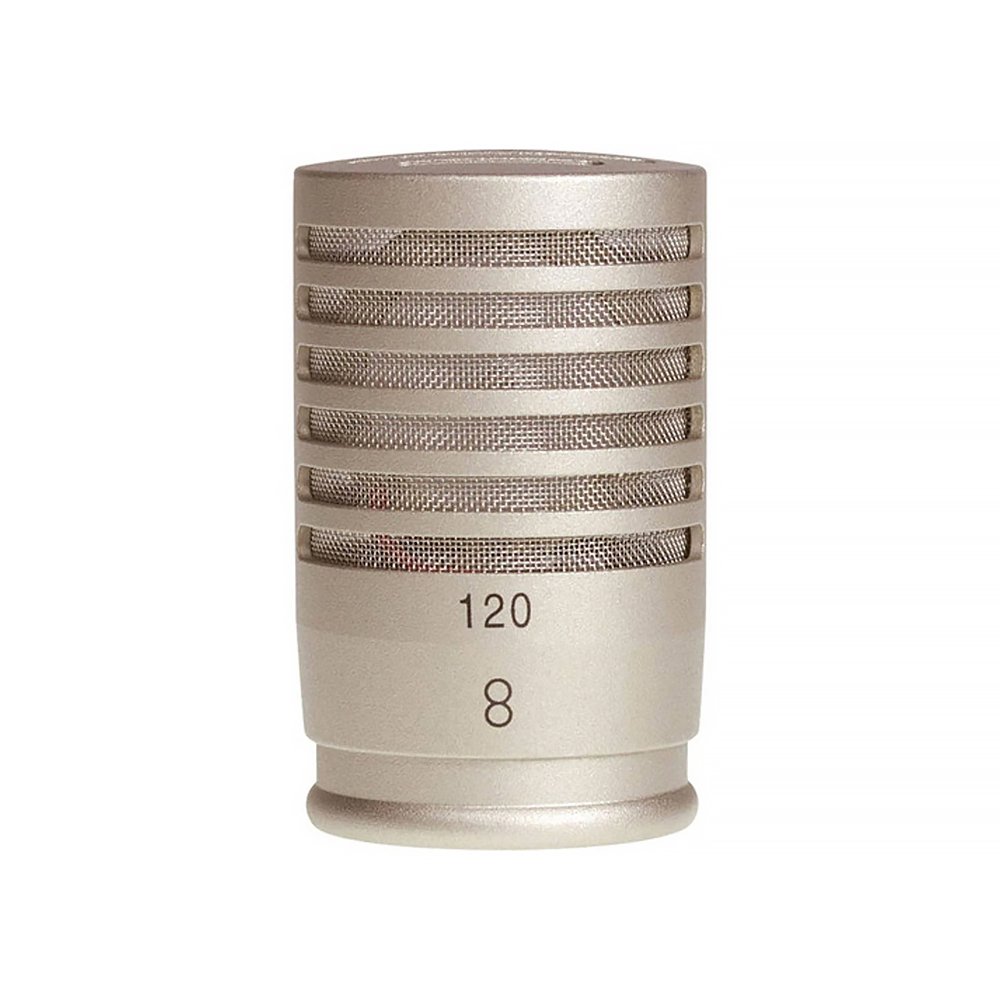

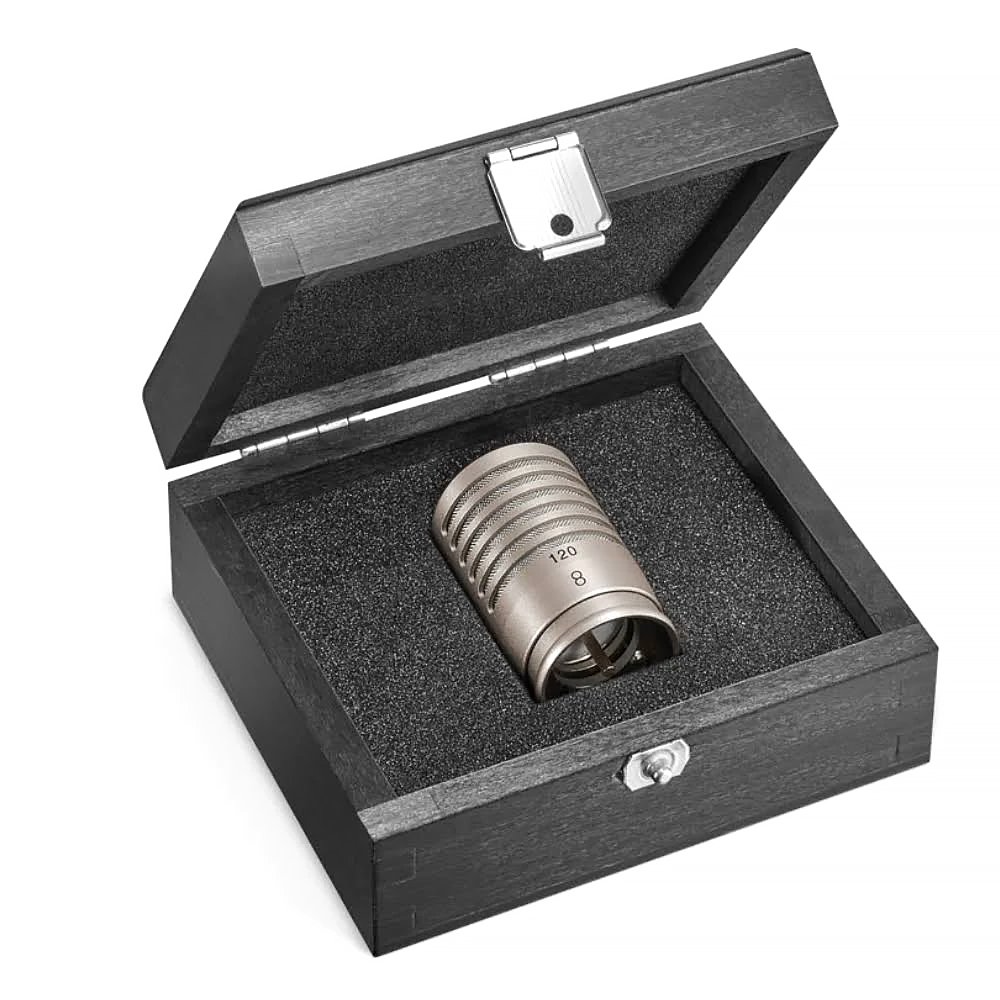

The KK 120 output stages capsule is a Figure 8 Capsule Head intended for use with the Neumann KM D and KM A series modular output stages. Available in nickel or nextel black colors



CAPSULE KK 120
The KK 120 is a pressure gradient transducer with figure-8 characteristic, side-addressed. The figure-8 pattern is realized with a single 16 mm diaphragm. Thus, all sound field components reach the diaphragm directly. As a result, the frequency response curves and sensitivities for 0° and 180°are identical. The KK 120 capsule may be combined with other capsules/microphones for MS-stereo recording.
Acoustical operating principle: Pressure gradient transducer
Directional Pattern: Figure-8, side-fire
Frequency Range: 20 Hz...20 kHz
Sensitivity at 1 kHz into 1 kohm: 12 mV/Pa
Rated Impedance: 50 ohms
Rated load impedance: 1000 ohms
Equivalent noise level, CCIR 1: 25 dB
Equivalent noise level, A-weighted 2: 15 dB-A
Maximum SPL for THD 0.5% 3: 140 dB
Maximum SPL for THD 0.5% with preattenuation 4: 150 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5: 69 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6: 79 dB
Supply voltage (P48, IEC 61938): 48 V
Current consumption (P48, IEC 61938): max. 3.5 mA
Matching connector: XLR 3 F
Weight (output stage): 70 g
Weight (capsule only): 37 g
Diameter: 24 mm
Length (capsule only): 40 mm
Length (microphone): 130 mm
