Neumann KM 183 Stereo Set

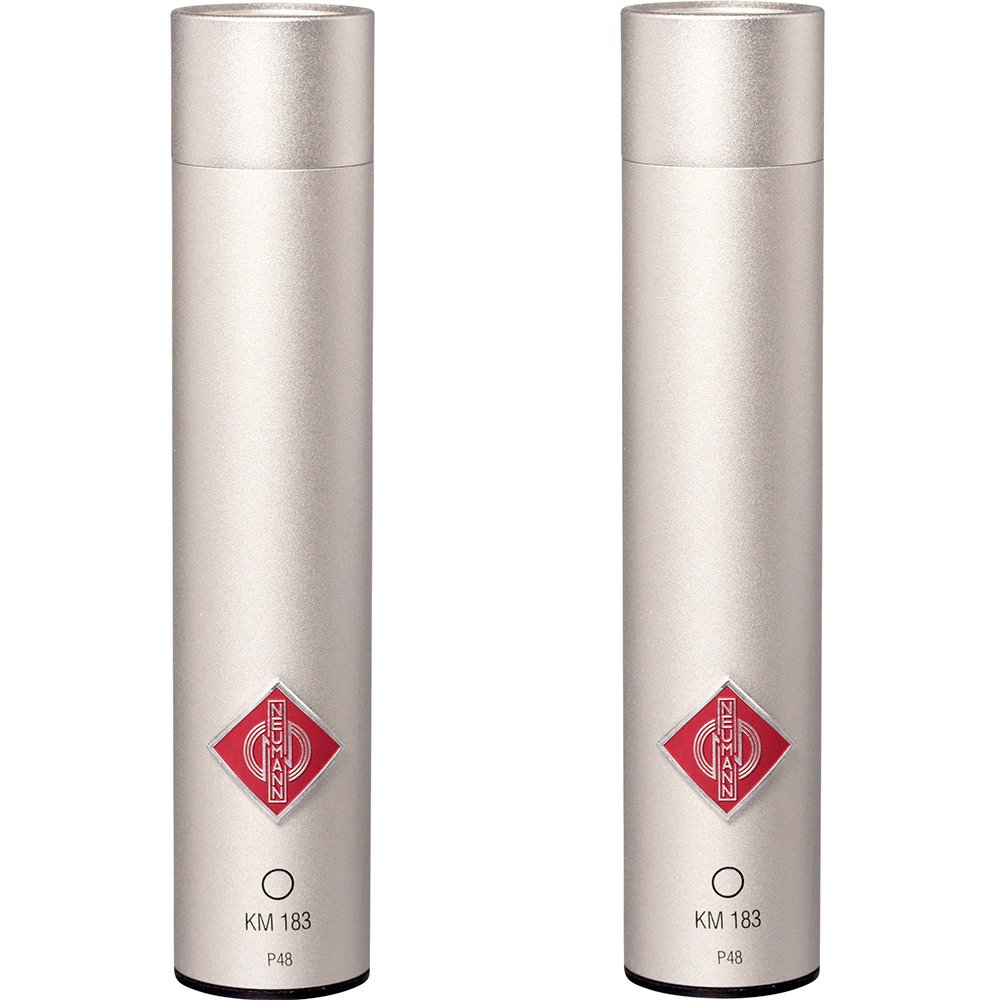

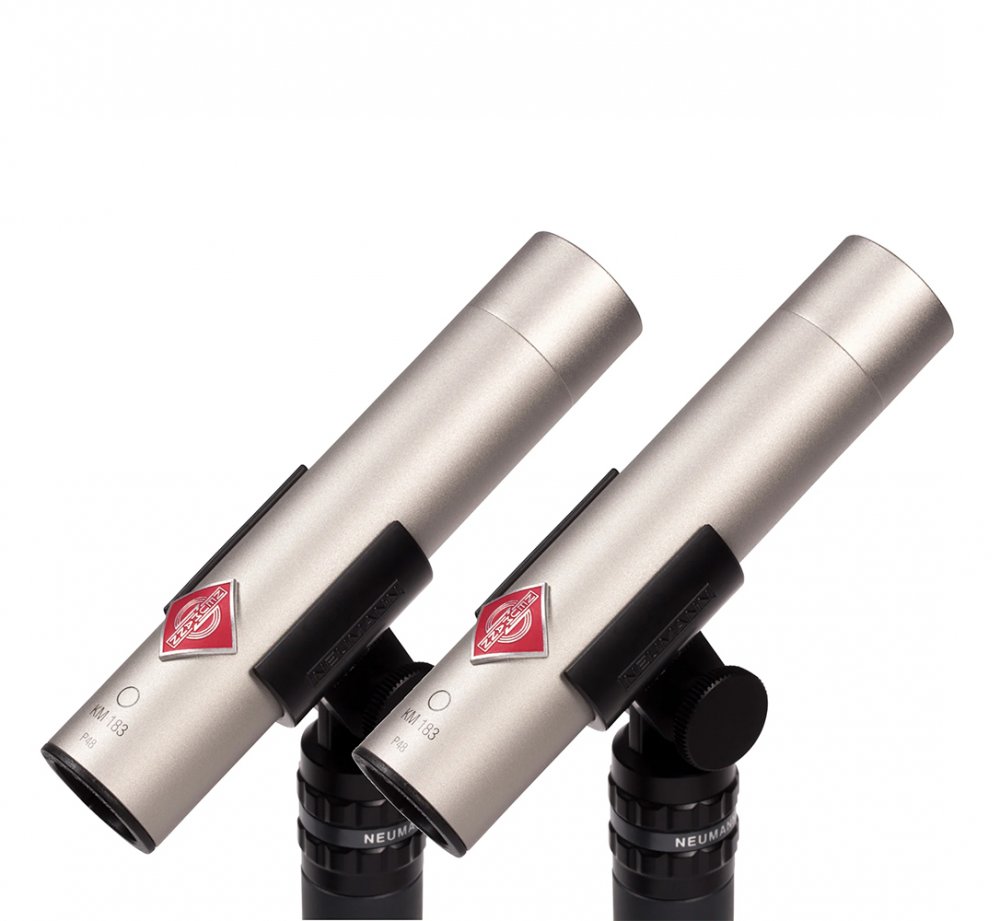

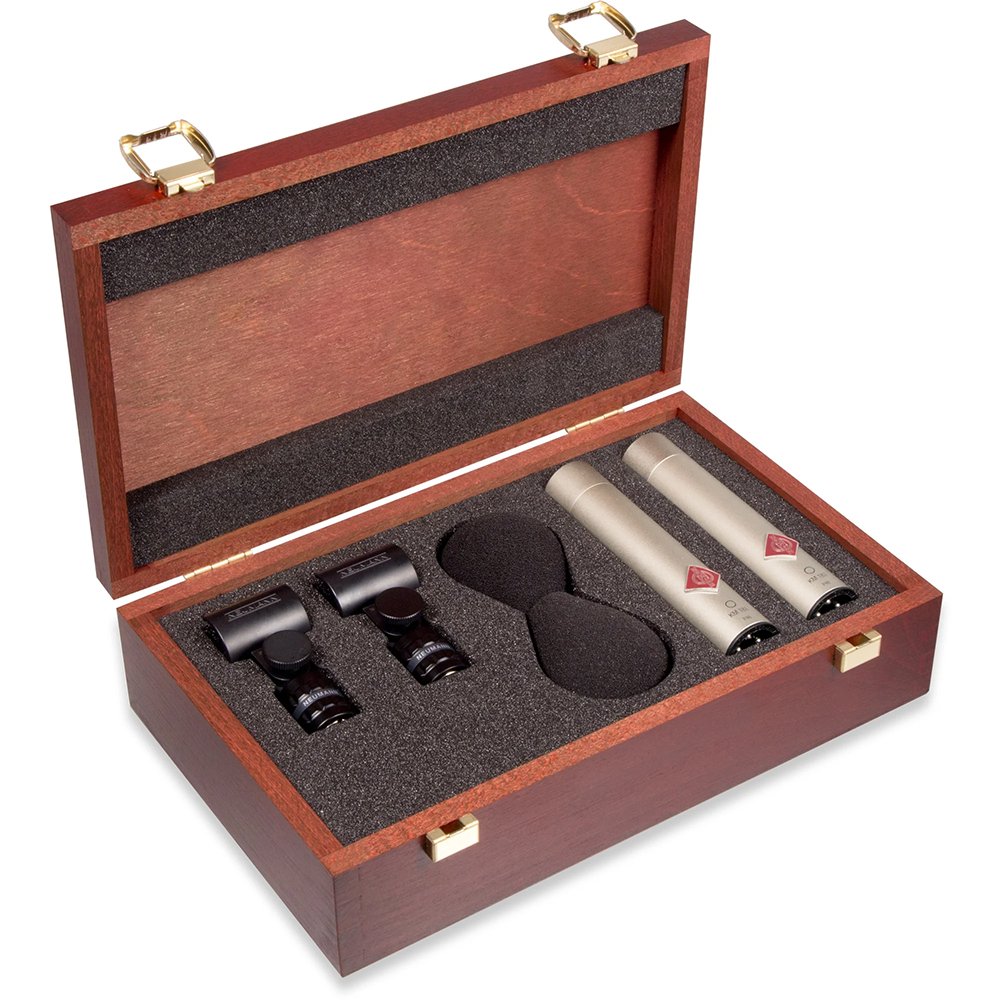

A matched pair of the famous Neumann KM 183 omnidirectional microphone offered in a wooden case with swivel clips and windscreens.

The "Series 180" consists of three compact miniature microphones with patterns that satisfy the demands of all common studio applications.

Because of its optimized mechanical construction and conscious omission of modularity, which is unnecessary in many cases, the "Series 180" is predestined for economy-minded production and home recording studios.

Applications
Their slender shapes and the transmission characteristics described below make the "Series 180" especially suitable for a very wide range of tasks in the radio and television sector.

Acoustic features
The KM 183 is a pressure transducer with a boost of approximately 7 dB at 10 kHz in the free field. In the diffuse sound field it has a flat frequency response. The pressure gradient transducers KM 184 and KM 185 feature very smooth frequency responses not only for the 0° axis, but also for lateral (off-axis) sound incidence. In typical usage, there is no coloration of sound over a wide pickup angle.

Electrical features
The "Series 180" microphones have the same transformerless circuitry as is used in the KM 100 system, resulting in excellent technical specifications:

Compared to the KM 84 the dynamic range of the KM 184 increased by 24 dB mainly through the reduction of self-noise level to only 22 dB (CCIR) and an increased sound pressure handlingcapability of up to 138 dB.

The microphones operate without any problems, even if the input of following equipment happens to be unbalanced, for example as in some DAT recorders.

The output of the "Series 180", as in all Neumann microphones, is balanced and phantom (48V) powered.
Features
  • Three different miniature microphones for all typical studio applications
  • Successor of the worldwide successful KM 83/84
  • Transformerless circuitry
  • Specifications
  • Acoustical operating principle : Pressure transducer
  • Directional pattern : omnidirectional
  • Frequency range : 20 Hz ... 20 kHz
  • Sensitivity at 1 kHz into 1 kohm : 12 mV/Pa
  • Rated impedance : 50 ohms
  • Rated load impedance : 1000 ohms
  • Equivalent SPL CCIR 468-3 : 24 dB
  • Equivalent SPL DIN/IEC 651 : 13 dB-A
  • S/N ratio CCIR 468-3 : 70 dB
  • S/N ratio DIN/IEC 651 : 81 dB
  • Maximum SPL for THD 0.5% : 140 dB
  • Maximum output voltage : 10 dBu
  • Supply voltage : 48 V ± 4 V
  • Current consumption : 3.2 mA
  • Matching connectors : XLR 3F
  • Weight approx. : 80 g
  • Diameter : 22 mm
  • Length : 107 mm
  • Reviews
    Price *
    $2550.00
    $2040.00
    Used
    $1495.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the KM 183 Stereo Set, please visit the website of Neumann
