| Neumann KM 184 mt |
|

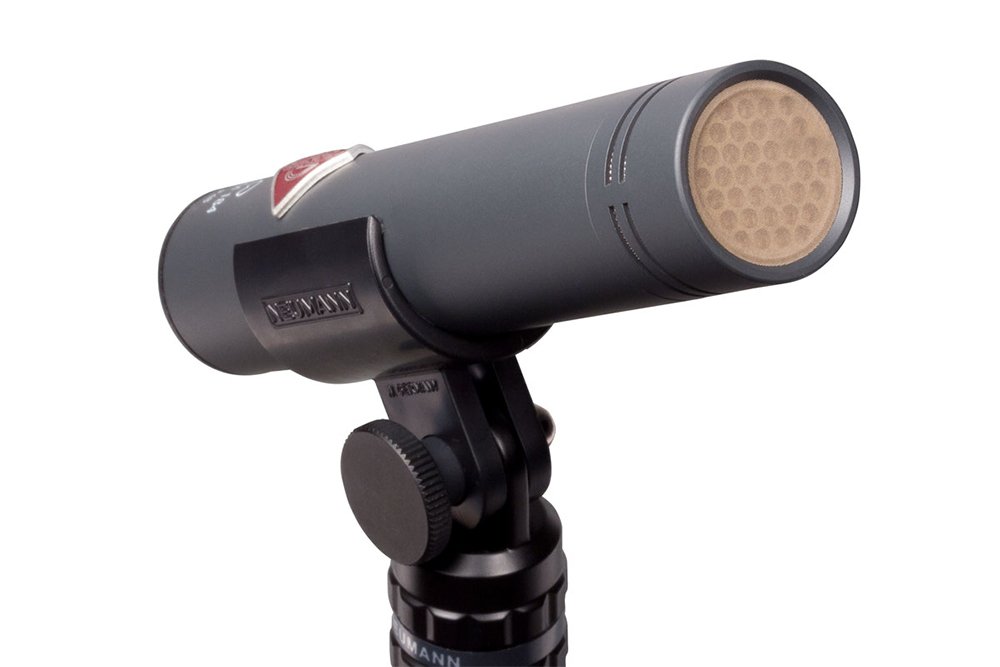

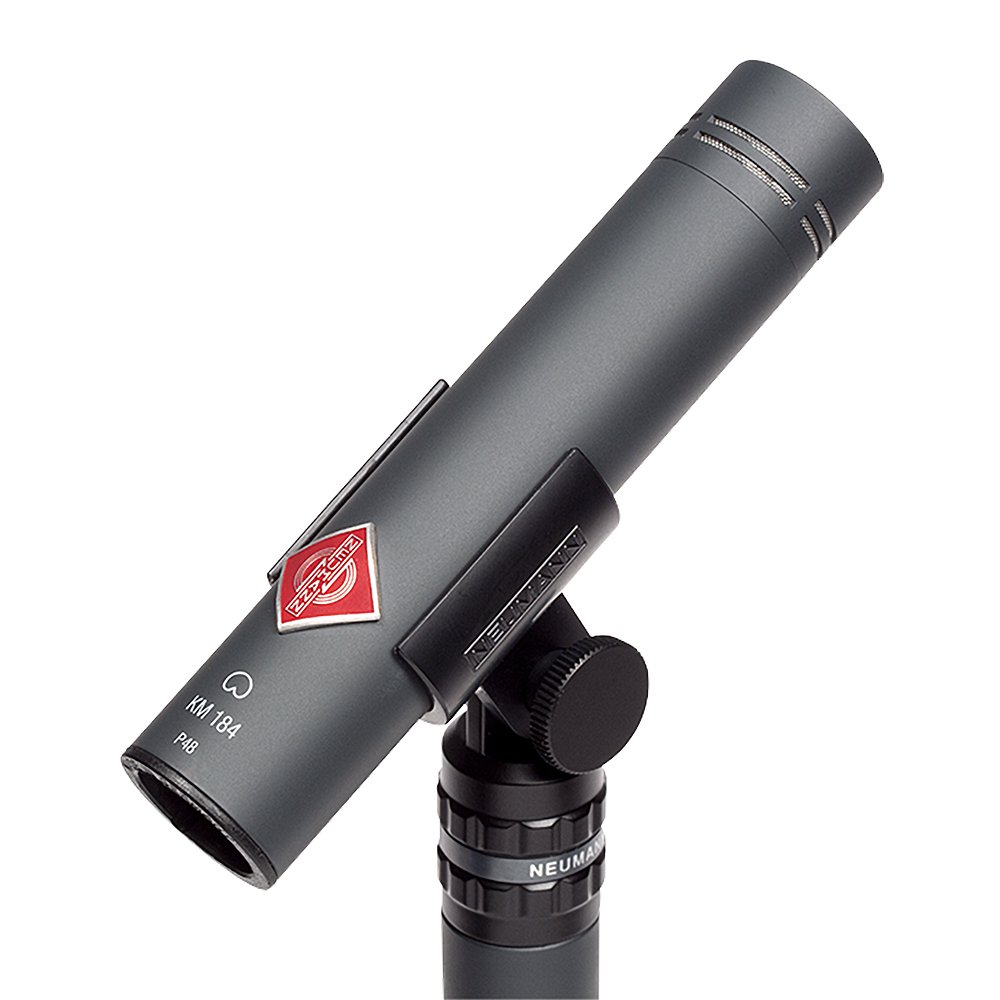

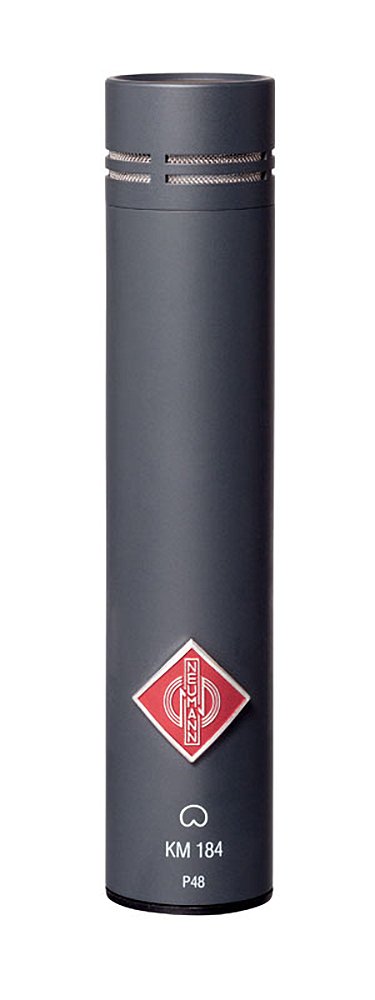

Neumann KM 184 mt
Black edition of the Neumann KM 184. Limited quantity!
The KM 184 (cardioid) in particular has become the classic high-quality miniature microphone. Now also available in attractive stereo sets, with cardioid, hypercardioid or omni directional characteristics.
The "Series 180" consists of three compact miniature microphones with patterns that satisfy the demands of all common studio applications.
Because of its optimized mechanical construction and conscious omission of modularity, which is unnecessary in many cases, the "Series 180" is predestined for economy-minded production and home recording studios.
Applications
Their slender shapes and the transmission characteristics described below make the "Series 180" especially suitable for a very wide range of tasks in the radio and television sector.
Acoustic features
Although the KM 184 has the same capsule as the KM 84, the microphone differs slightly on the 0° frequency response: The KM 184 has a gentle rise at about 9 kHz, a characteristic that was introduced very successfully with the KM 140. The result is a tonal balance that is fresher and livelier when compared to the KM 84 with its flat frequency response in that band.
Electrical features
The "Series 180" microphones have the same transformerless circuitry as is used in the KM 100 system, resulting in excellent technical specifications:
Compared to the KM 84 the dynamic range of the KM 184 increased by 24 dB mainly through the reduction of self-noise level to only 22 dB (CCIR) and an increased sound pressure handlingcapability of up to 138 dB.
The microphones operate without any problems, even if the input of following equipment happens to be unbalanced, for example as in some DAT recorders.
The output of the "Series 180", as in all Neumann microphones, is balanced and phantom (48V) powered.
Features

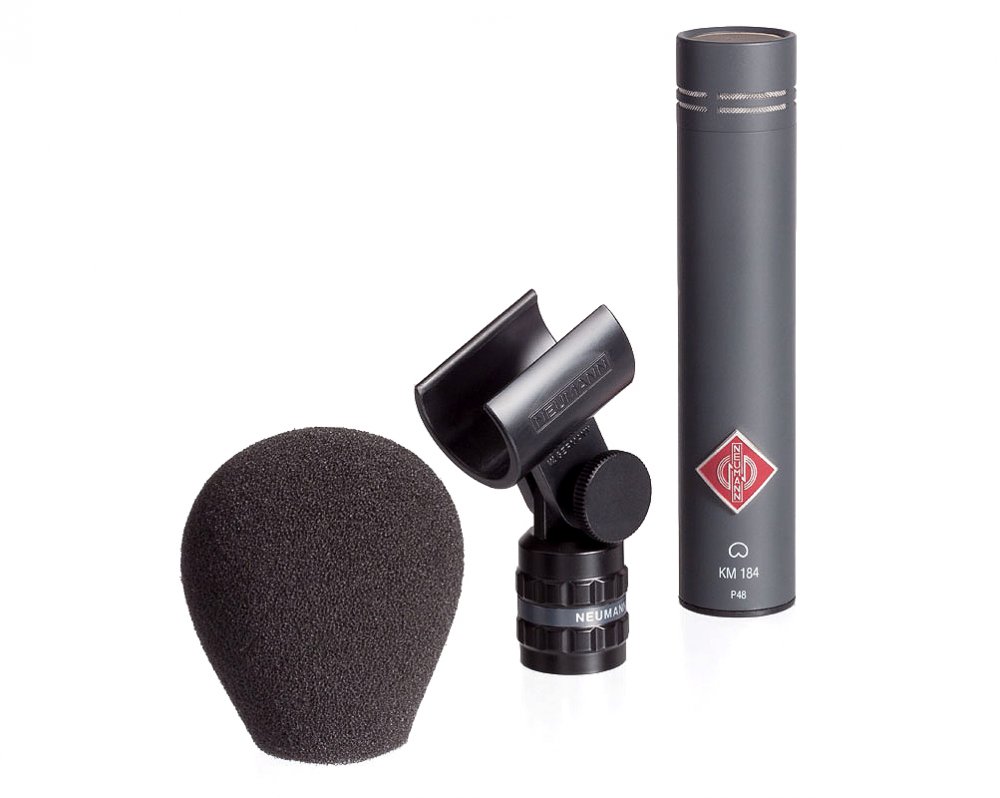

Three different miniature microphones for all typical studio applicationsSuccessor of the worldwide successful KM 83/84Transformerless circuitryTrouble-free operation also with unbalanced equipment (e.g., DAT recorders)Set includes windshield and two different microphone clamps
Features
Acoustical operating principle
Pressure/Pressure gradient transducer
Directional pattern
cardioid
Frequency range
20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm
15 mV/Pa
Rated impedance
50 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR1)
22 dB
Equivalent noise level, A-weighted1)
13 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)
72 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)
81 dB
Maximum SPL for THD 0.5%2)
138 dB
Maximum output voltage
10 dBu
Supply voltage (P48, IEC 61938)
48 V ± 4 V
Current consumption (P48, IEC 61938)
3.2 mA
Matching connectors
XLR 3F
Weight
approx. 80 g
Diameter
22 mm
Length
107 mm
|
|
|
