The TLM 102 defines a new generation of Neumann studio microphones. This applies not only to the design of the microphone but also to the price.
The reduced overall size contributes to an exceptionally compact appearance, which unites all of the typical design components of a Neumann microphone. The harmonious proportions and gleaming grille ring ensure that even at first glance, the TLM 102* attracts attention.
The TLM 102 is impressive in terms of sound: In the interior is a newly developed large-diaphragm capsule (cardioid) with a maximum sound pressure level of 144 dB, which permits the recording of percussion, drums, amps and other very loud sound sources, for example. Instruments that are not especially loud also benefit from the very fast transient response of the TLM 102. However its most important applications are in the realm of vocals and speech; a slight boost above 6 kHz provides for excellent presence of the voice in the overall mix. Up to 6 kHz the frequency response is extremely linear, ensuring minimal coloration and a clearly defined bass range. The capsule has an elastic suspension for the suppression of structure-borne noise. A pop screen integrated into the grille serves to suppress plosives in vocal and speech recording.
Due to its price and flexible field of application, the TLM 102 is ideal for the home recording and project studio sector, as well as for the broadcasting area, especially when clear lines of sight to the speakers are a priority.

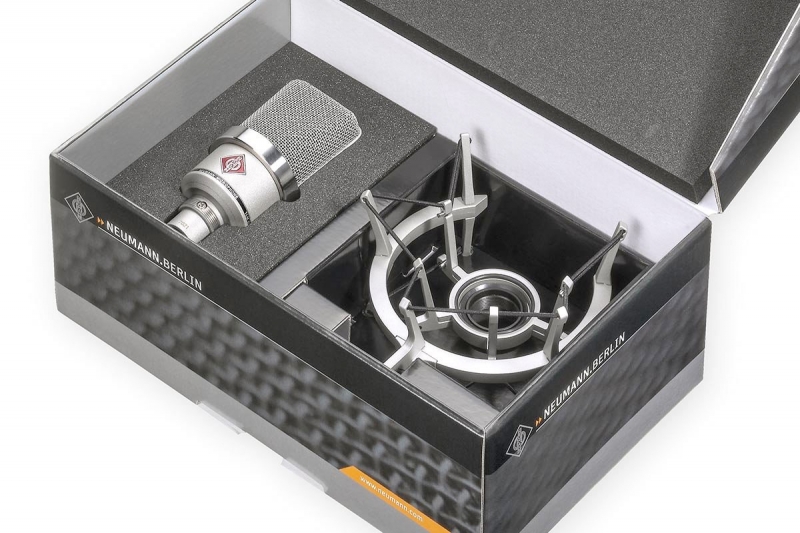

The TLM 102 is available in black and nickel; a stand mount is included.
Large-diaphragm microphone with cardioid directional characteristic (pressure gradient transducer)Compact, characteristic but smaller-scale Neumann designVery high maximum sound pressure levelSlight presence boost above 6 kHzTransformerless circuitry
Acoustical operating principle: Pressure gradient transducer
Directional pattern: Cardioid
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 11 mV/Pa
Rated impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR1): 21 dB
Equivalent noise level, A-weighted1): 12 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 73 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 82 dB
Maximum SPL for THD 0.5%2): 144 dB
Maximum output voltage: 13 dBu
Supply voltage (P48, IEC 61938): 48 V 4 V
Current consumption (P48, IEC 61938): 3.5 mA
Matching connector: XLR3F
Weight: approx. 260 g
Diameter: 52 mm
Length: 116 mm
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
2) measured as equivalent el. input signal
