Multi-faceted versatility, no-compromise sound. With five directional characteristics and a novel operating concept, the TLM 107 provides sound without any coloration

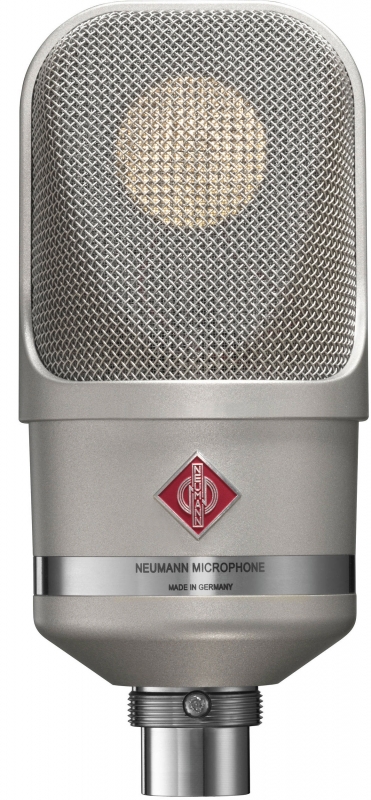

Classic proportions combined with attractive styling and fresh ideas - the Neumann TLM 107 perfectly embodies the Neumann philosophy: Innovation based on tradition. Far from evoking vintage or retro nostalgia, the standard-setting TLM 107 represents an impressive, modern studio microphone. Its extensive performance spectrum and high-precision reproduction, very close to the original, make the TLM 107 universally applicable, opening up the widest freedom in mixing and post-production.
The newly developed sound transducer, inspired by one of Neumann's top-of-the-line microphones, the D-01, is impressive with its outstanding impulse fidelity. The great consistency of the five polar patterns, omnidirectional, cardioid and figure-8, with the intermediate patterns wide-angle cardioid and hypercardioid, is also unusual for a large-diaphragm capsule. The TLM 107 provides optimal sound not only for the cardioid setting; it also ensures maximum precision over the entire frequency range for all of the other directional characteristics. The sound always remains balanced, with an almost linear reproduction up to 8 kHz, and a slight boost in the highest frequencies that lends presence and freshness to the voice. Here particular attention has been paid to the natural reproduction of speech sounds, especially the critical "s" sound. The grille is acoustically optimized for low sensitivity to pop sounds. In addition, the sound transducer is edge-terminated, with both diaphragms at ground voltage. Specifically, this ensures considerably reduced sensitivity to dust and humidity.
No-Compromise Sound Design
Transformerless circuitry permits a high degree of linearity and a large dynamic range. The self-noise of only 10 dB-A is practically inaudible, while at the same time, the TLM 107 features high level handling. The maximum sound pressure level of 141 dB SPL can be increased to 153 dB SPL via pre-attenuation (Pad). This enables the TLM 107 to transmit the sound of even the loudest instruments without distortion. The Low Cut settings of Linear, 40 Hz, and 100 Hz are precisely adapted to practical recording situations. Without side effects, the 40 Hz setting cuts interference noise below the range of fundamental tones (where 41 Hz is the frequency of the double bass open E string), while the 100 Hz setting is optimized for speech and vocals (where 100 Hz corresponds to the lowest notes of a baritone).
Innovative Operating Concept
For the first time, all of the microphone switch functions are controlled intuitively via a navigation switch. A visual highlight is the illuminated pattern display in the chrome ring, while the Pad and Low Cut status is displayed by LEDs to the left and right of the switch. In order not to distract singers, the switch and display are located on the back of the microphone. After ten seconds, the displays are turned off automatically.
Multipattern large diaphragm microphone with 5 polar patterns (omni, wide cardioid, cardioid, hypercardioid, figure-eight)Navigation switch with LED illuminated display for polar pattern, PAD and low cutSound characteristics: transparent, natural reproduction of human voice, outstanding transient responseBalanced sound in all 5 polar pattern settings
Acoustical operating principle: Pressure gradient transducer
Directional pattern: Omni, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohms: 11 mV/Pa
Rated impedance: 50 ohms
Rated load impedance: 1000 ohms
Equivalent noise level, CCIR1): 22 dB
Equivalent noise level, A-weighted1): 10 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 84 dB
GTIN (UPC/EAN) : 615104086661
Manufacturer Part Number : 008666
St-Jean Sur Richelieu
May 24, 2016
Micro Neumann TLM 107
Tres bon micro!
J'enregistre la guitare classique avec ce micro et je suis tres content du resultat obtenu.
Mont St Gregoire, Qc
May 7, 2016
Micro Neumann TLM 107
C'est vraiment un bon micro, il vaut son prix. Je l'utilise pour enregistrer la guitare classique mais je suppose qu'il serait aussi performant pour toute autre instrumentation.
