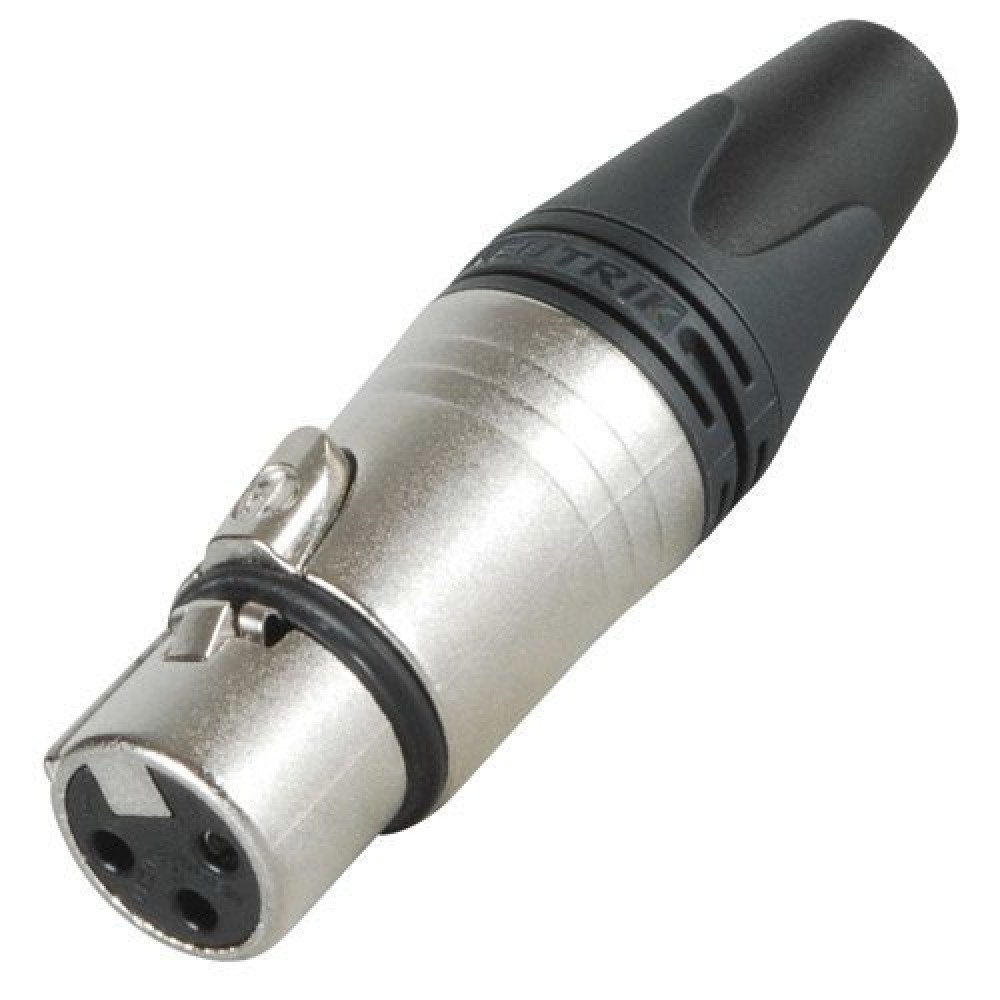

Neutrik NC3FXX
3 pole cable connector, female. Nickel housing and silver contacts.

TECHNICAL DATA

Electrical
Number of contacts: 3
Contact resistance: 3 m Ohm
Insulation resistance
- initial: > 2 G Ohm
- after damp heat test: > 1 G Ohm
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm²/14 AWG
Capacitance between contacts: 4 pF

Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: 20 N
Cable O.D. range: 3.5 mm - 8.0 mm

Materials
Shell: Zinc diecast ZnAl4Cu1, gal Ni over Cu plating
Insert: Polyamide PA 6.6 30% GR (glass reinforced)
Contacts: Bronze CuSn8
Contact surface: gal 2 µm Ag silver
Latch lock: ZnAl4Cu1
Strain-relief clamp: POM
Antikink bushing: PA + PU

Environmental
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20

Compatibility:
IEC 61076-2-103 standard
Reviews
Price *

$4.80
Eligible for free shipping in Canada. Learn more
Additional information
For more information about the NC3FXX, please visit the website of Neutrik
