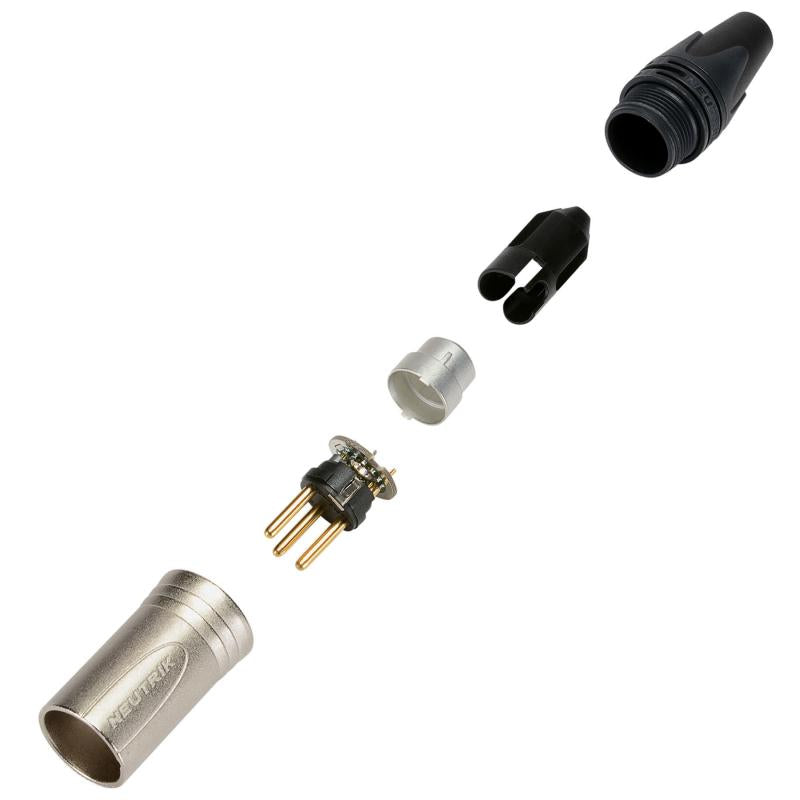

3-pin nickel male EMC-XLR cable connector.
3 pole male EMC-XLR cable connector
The EMC-XLR Series is a specifically designed version of the XX series to give enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones. The design guarantees a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The circular capacitors act as high-pass filter with a cut-off frequency around 10 MHz.
An EMI suppression ferrite bead with 24 Ohm at 1 MHz between pin 1 and the cable screen provides a low-pass filter for improved RF rejection.
3 pole male and female XLR cable connector with integrated capacitive shield to shell connectionCircular capacitor around the cable shield enables low-inductive shield connection to connector housingCable shield - Pin 1 connection includes EMI suppression bead to block high frequenciesAvoid ground loops as there is no LF-shield connection to groundRugged zinc diecast shell, long lasting and durableChuck type strain relief system for secure clamping of cablesBoot with rubber gland gives high protection against bending stressesBranded with unique hologram - guarantees genuine and authentic Neutrik product
