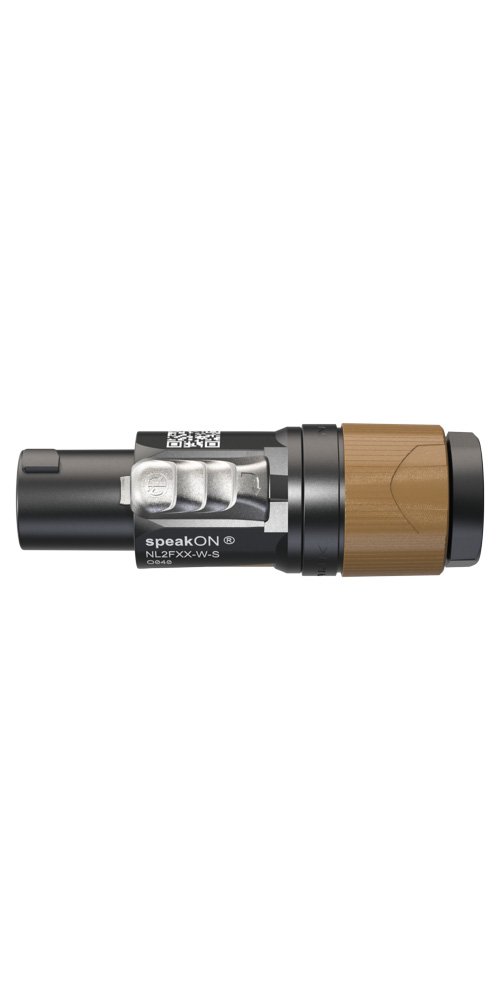

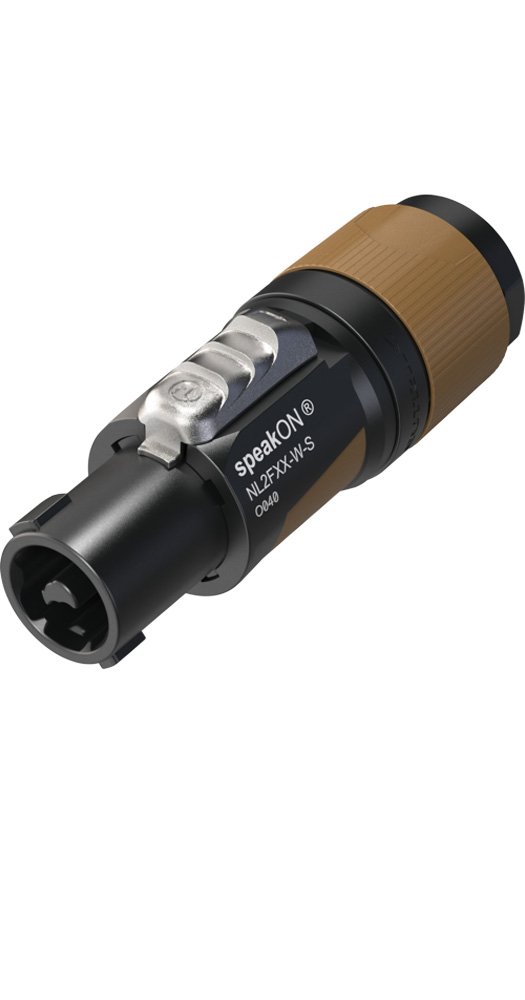

Neutrik NL2FXX-W-S
MPN #NL2FXX-W-S
2 pole speakON cable connector with screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm
speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection
Features
Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)Ergonomic design with slip-proof two-component molded housingUp to 37 A rms current ratingUnique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mmIEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1Superior NEUTRIK quality standard, extremely robust and reliableEasy and reliable twist lock systemEasy to assemble because the strain relief locks with the insert mechanically and aligns with the housing Improved kink protection by two-component bushing
Specifications
Connector series: speakON 4 pole
Contact resistance: ? 2 m?
Dielectric strength: 2.8 kVac
Insulation resistance: > 10 G? (initially)
Number of electrical contacts: 2
Rating Europe: IEC 61984: 37 A 250 V AC
Rating USA: UL1977: 35 A 250 V AC
Rating Canada: CSA C22.2 No.182.3: 24 A 250 V AC
