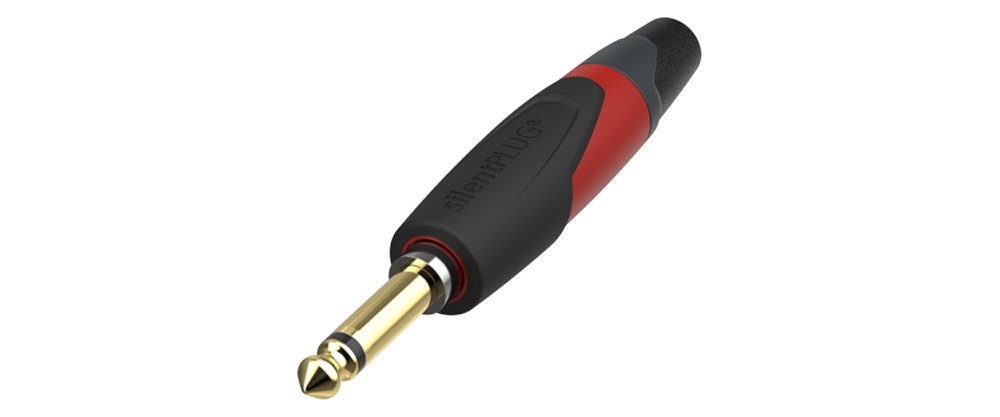

Neutrik NP2XX-SILENT
MPN #NP2XX-SILENT
1/4" TS Silent Phone Plug
2 pole 1/4" (6.35 mm) professional phone plug, gold plated contacts, rubberized surfaces for best haptic experience, "silent switch"
The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 1'000 mating cycles.
Features
Avoid pops and squealsHermetically sealed switching contactsLifetime beyond 1'000 mating cyclesSlim plug with industry proven and reliable chuck type cable strain reliefRubberized surfaces for best haptic experience
Specifications
Electrical
Contact resistance: depends on mating connector m?
Dielectric strength: 0.2 kVdc
Insulation resistance: > 2 G? (initial)
Rated current per contact: depends on mating connector A
Rated voltage: < 50 V
Mechanical
Cable O.D.: 4 - 7 mm
Lifetime: > 1000 mating cycles
Wiresize (mm / AWG): 1 mm² / 18 AWG
Wiring: Solder contacts
Material
Bushing: PP + PA6
Contact plating: 0.2 ?m Au
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: TPE + PA6
Strain relief: Polyacetal (POM)
