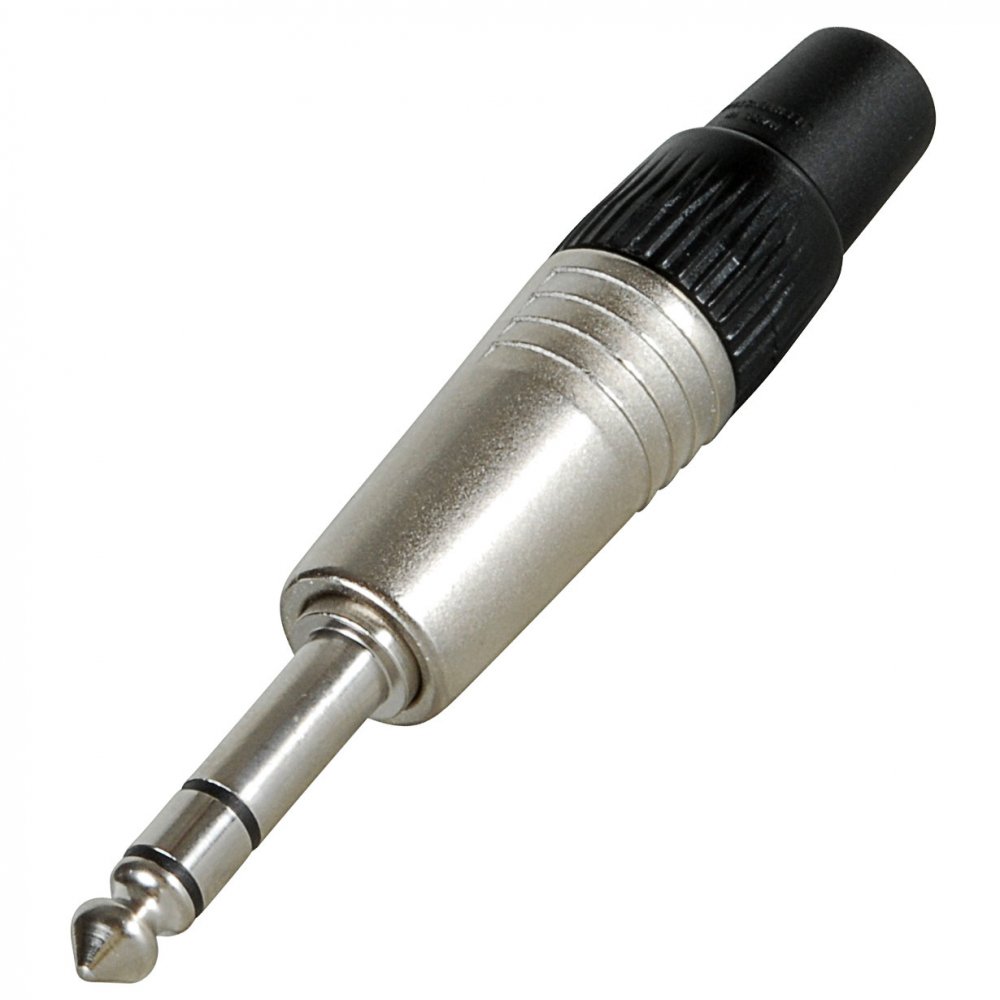

Neutrik NP3C
Plugs / 1/4" Prof. Phone Plugs, C-Series
`The lifetime plug` Diecast shell, Neutrik unique chuck-type strain relief with PU-sleeve for optimal cable protection. Right-angle version with super slim shape, sleeve contact and shell in one piece.

TECHNICAL DATA

Electrical
Rated current: depends on mating connector
Contact resistance: depends on mating connector
Insulation resistance - initial: > 2 G
- after damp heat test: = 1 G
Dielectric strength: 1 kV dc (NP2C-AU-SILENT: 250Vdc)

Mechanical
Wiring: solder terminals
Wire size: 1 mm² / AWG 18
Cable O.D.: 4 - 7 mm
Solderability: complies with IEC 68-2-20

Materials
Shell ZnAl4Cu1, Ni or black Cr plated
- NP2C-AU-Silent: only red plated
- RCS: only Ni plated / PA6 50% GR
Insulation: PA 6.6 30% GR
Contacts: CuZn39Pb3, 2 µm Ni (Su) or gold plated
Chuck: POM
Bushing: POM + PU
Temperature range: -20°C to +65°C

Compatibility / Remarks
NP2C with built-in 1:10 transformer to convert mic level to guitar inputs: add suffix "T10AA"
Compatibility:
EIA RS-453/IEC 60603-11
Reviews
Price *

$7.80
Eligible for free shipping in Canada. Learn more
Additional information
For more information about the NP3C, please visit the website of Neutrik
