MPN #NLT4MP-BAG
Neutrik NTL4MP-BAG

$11.75

Free shipping in Canada for orders over $200

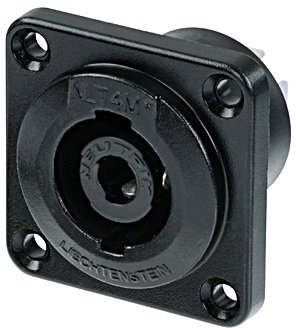

The Neutrik NLT4MP-BAG is a 4 pole male chassis connector, black-chrome metal housing, solder or ¼" flat tabs



The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
  • Extremely robust metal housing designed for harsh and demanding environmentIdeal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Uses precise "Quick Lock" system
  • Mates with all currently available speakON products
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition
  • 4 pole version has UL Recognized components, CSA listed
  • 4 type range - also male cable connector and female receptacle on 4-pole version
  • Title: NLT4MP-BAG
    Connection Type: speakON
    Gender: male

    Electrical
    Contact resistance: < 2 m (after lifetime)
    Dielectric strength: 4 kVdc (peak)
    Insulation resistance: > 10 G
    Rated current per contact: 40 A rms continuous
    Rated current per contact: 50 A audiosignal, duty cycle 50 %
    Rated voltage: 250 V ac
    Attention: speakON is NOT to be used as an AC mains or power supply connector!

    Material
    Contact plating: 4 µm Ag
    Insert: Polyamide (PA 6 30 % GR)
    Shell: Zinc diecast (ZnAl4Cu1) black chrome
    Contacts: Spring Copper (CuSn0.2)

    Environmental
    Flammability: UL 94 HB
    Protection class: IP 54 (mated condition)
    Solderability: Complies with IEC 68-2-20
    Temperature range: -30 °C to +80 °C
