MPN #OSC8F
Neutrik OSC8F


Free shipping in Canada for orders over $200

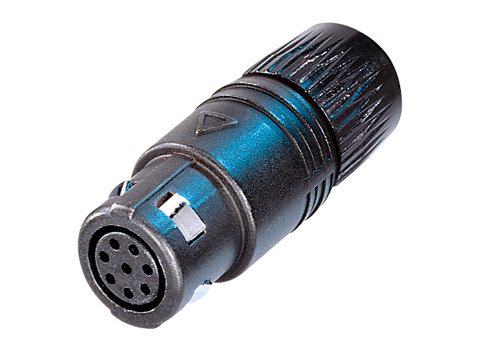

The Neutrik OSC8F is a 8 pole female cable connector, chuck type strain relief, solder contacts, 180° coding, black housing

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.
  • Contact configuration can be selected from 1 to 8 contacts.
  • Easy assembly: Contact soldering in disassembled condition avoids awkward wiring of high density contacts.
  • Precise and robust all metal housing.
  • Push-pull self-locking system.
  • Connection Type: neutriCON
    Gender: female

    Contact resistance: 5 m
    Dielectric strength: 1,5 kVdc
    Insulation resistance: > 0.5 G (after damp heat test IEC 68-2-30)
    Rated current per contact: 7,5 A
    Rated voltage: < 50 V

    Cable O.D.: 3 - 7 mm
    Cable retention: > 50 N
    Insertion force: < 25 N
    Lifetime: > 1000 mating cycles
    Wiresize: 1 mm²
    Wiresize: 18 AWG
    Wiring: Solder contacts
    Locking device: Push-Pull

    Contact plating: 0.3 µm Au hard alloy over 2 µm Ni
    Contacts: Brass (CuZn35Pb2)
    Insert: PBTP 15 % GR
    Shell: Zinc diecast (ZnAl4Cu1)
    Shell plating: Black chromium
    Strain relief: Polyacetal (POM)

    Flammability: UL 94 HB
    Protection class: IP 5X
    Solderability: Complies with IEC 68-2-20
    Temperature range: -30 °C to +80 °C
