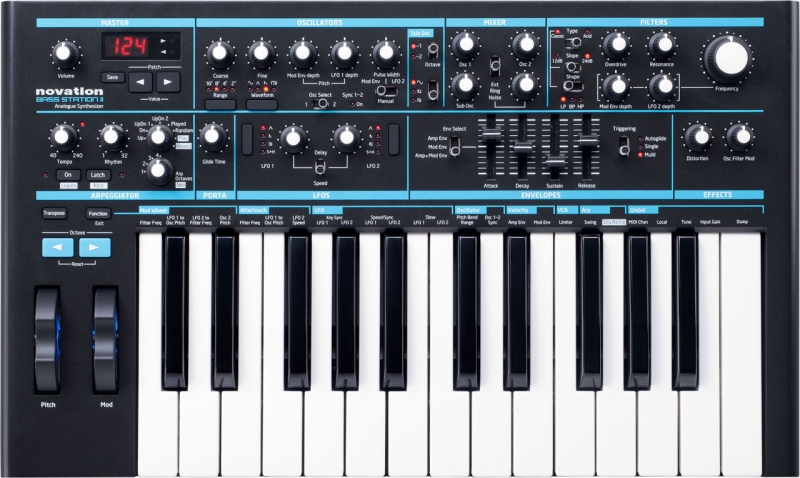

Novation Bass Station II
The Novation Bass Station II is an analogue mono-synth based on the classic original Bass Station but re-worked for the 21st century. 25 keys
Nothing out there sounds this warm, fat and dirty. Bass Station II is our pure analogue monosynth. We based it on our classic Bass Station, then enhanced every area to make it even bigger, angrier and more versatile.
It has two tuneable oscillators, a sub-oscillator for enormous bass, plus noise and ring modulation. It also gives you two distinct analogue filter types: the classic multi-mode filter and a new acid filter, for a massive variation in sonic possibilities.
Create a huge variety of sounds
Two pure analogue, sync-able and tuneable oscillators with four selectable waveforms, plus a third sub-oscillator, noise and ring modulation.
Enormous bass and shrieking leads
Switch the multi-mode Classic Filter between low, hi and band pass with 12 and 24dB slopes.
Improved analogue filter stage
A 24dB Acid Filter that is even darker, wetter and smoother than the Classic.
Turn Jekyll to Hyde
Create crunchy, aggressive sounds with fully analogue distortion, filter-modulation effects and a separate filter overdrive.
Easily load and save patches
Comes with 64 patches that cover a huge range of styles, but you can create, save, archive and swap 64 of your own too.
Get instant inspiration
Record notes, ties, rests and rhythms in real time using the step sequencer and arpeggiator, then easily store them, recall them and use them with any patch you like.
Get your hands on loads of controls, cleverly arranged for intuitive patch design and sound editing.
Triangle, sawtooth and square LFO waveforms, as well as sample and hold, and two ADSR envelopes for filter, pitch and pulse width modulation.
Connect to hardware and software
Connect and sync to your music software and MIDI-compatible hardware.
Full sized 25-note) velocity-sensitive keyboard, with a fast synth-action and aftertouch.
Store unlimited sounds
Keep as many patches as you like on your Mac or PC using the Librarian Software.
Hardware & controller assignment
25 note synth-action keyboard
Aftertouch can be assigned to modulate:
-LFO 1to Osc pitch
- Osc 2 speed
Modulation wheel can be assigned to:
- LFO 2 to filter frequency
- LFO 1 to Osc pitch
- Osc 2 pitch
Octave up/ down buttons
64 factory presets
64 slots for user patches (and patch dump facility for storing more)
Master volume dial
Inputs and Outputs
USB MIDI (for connecting & powering Bass Station II via host computer)
Mono output on 1/4" TRS jack
Headphone output on 1/4" TRS jack
External input on 1/4" TRS jack
Sustain pedal input on 1/4" TS jack
MIDI IN / MIDI OUT ports on 5 pin din
DC power input
Switch between power off / DC powered / bus powered
Sub Osc (3)
Osc 1 & 2
Select between waveforms:
square/variable pulse width
Sync 1 & 2
Pitch modulation from Mod Envelope and/or LFO 1
Pulse width modulation from Mod Envelope and/or LFO 2
Sub Osc (3) which is tracked to Osc 1
Select independently between waveforms:
All modulation and tuning tracked to Osc 1
Independent octave select
Osc 1 level
Osc 2 level
Sub Osc level
Noise generator level
Ring modulation depth
External signal level
Two filter types
Acid type (diode ladder filter design)
Classic type (derived from original Bass Station)
Filter frequency to Mod Envelope depth
Filter frequency to LFO 2 depth
Select 'Classic' filter between:
Two ADSR Envelopes (Attack/Decay/Sustain/Release)
Combined control of both Envelopes
Select triggering mode between:
Single trigger (holds envelope state when new note is played)
Multi trigger (re-triggers with every new note played)
Autoglide (engages portamento)
There is also a VCA limiter
Two LFOs each selectable between:
Sample and hold
Both LFOs independently adjustable between rate and delay time
Key sync LFO 1 & 2
LFO slew on LFO 1& 2 (low pass filter on the LFO waveform)
Oscillator filter mod amount (FM effect created by Oscillator 2 modulating filter freq)
Up to 32 different patterns
Select between 1-4 octave range
up / down 1
up / down 2
Latch (hold the arpeggiator)
Up to four sequences
Assign one of 32 preset rhythms or create your own
insert rests or legato (slide)
Sequencer re-trigger function
Adjust glide time
Single trigger or re-trigger modes
Integrate into step sequencer and arpeggiator
USB bus powered
9V DC power supply included
Maximum power consumption 9V DC 300mA
457mm (18") width x 273mm (10.75") depth x 76mm (3") height
OS compatibilty not relevant for this product range/type
