Novation Circuit Tracks
Standalone groovebox, all-in-one studio, two polyphonic digital synth tracks, two MIDI tracks and four drum tracks, SD card storage
Circuit Tracks is an extraordinary standalone groovebox for the modern producer. With two polyphonic digital synth tracks, four drum tracks, creative FX, and on-the-go capabilities, it's the perfect hands-on device for the agile music-maker.
Two synth tracks, two MIDI tracks and four drum tracks: everything you need to create and perform music
Expand your sonic capabilities with two refined polyphonic digital synth tracks. Load your own samples and shape them to perfection across drum tracks.
Connect to your studio with full-size five-pin MIDI in, out, and thru, and analogue sync out. Apply effects to two audio inputs, and listen through stereo out or with headphones.
The agile groovebox:
Lose yourself in a hands-on production workflow. Let your creativity thrive.
Total control of your setup:
Pilot your studio with two dedicated MIDI tracks, capable of sending notes and CC automation.
Never stop creating:
Insert a microSD card to save and recall thousands of synth patches, samples and projects.
Acclaimed, hands-on sequencer:
Create 32-step patterns, which can be chained to create sequences up to 256 steps in length, per track. Assign patterns to scenes to arrange and perform full-length songs. Go off-grid with microtiming, and keep your music evolving with probability and pattern mutate
FX on everything:
Douse synths, drums, and incoming audio in lush reverb and delay. Then make your mix pump with sidechain and punch with the master compressor.
The built-in rechargeable battery provides up to four hours of battery life, so you can make beats on the move.
Circuit Tracks is class compliant so it will work with any modern Mac or Windows PC.

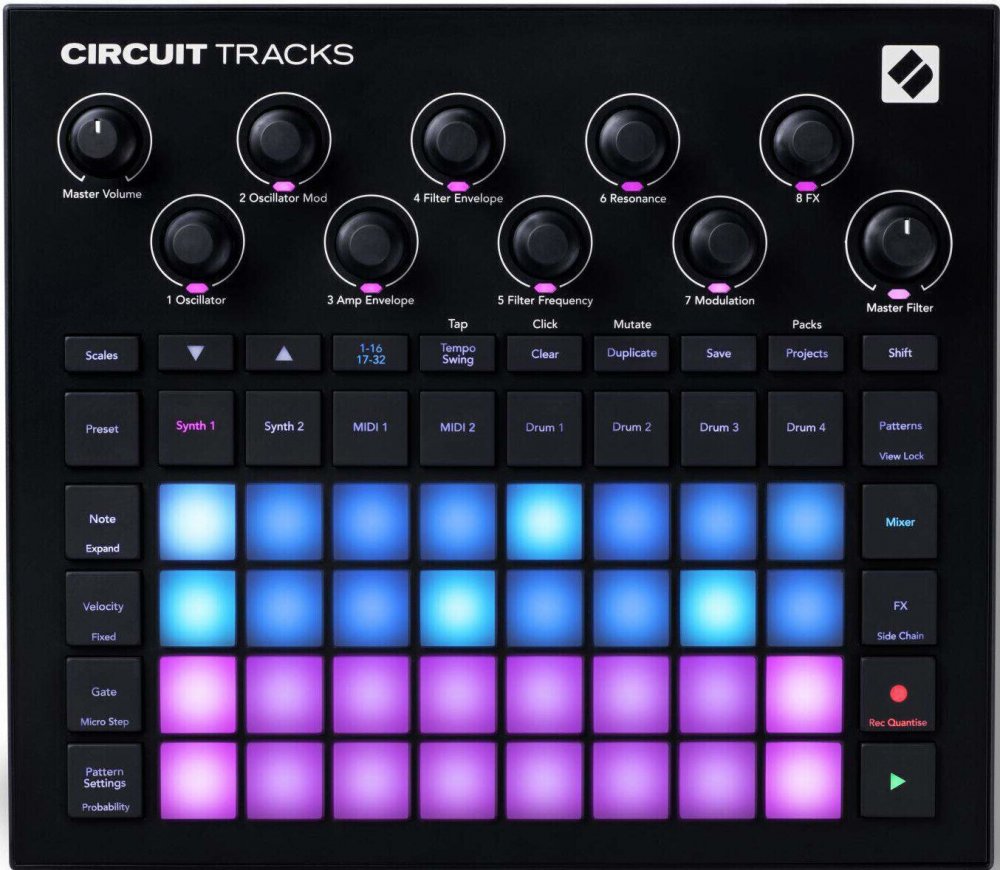

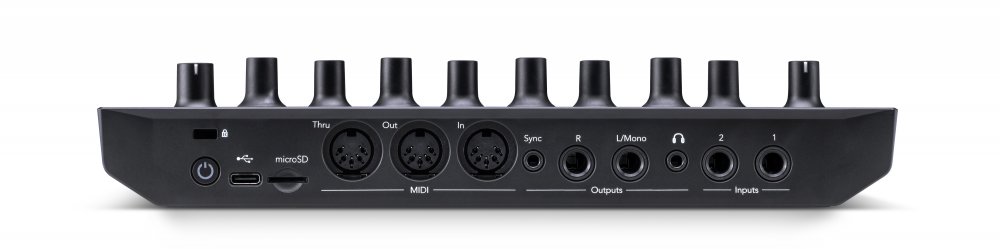

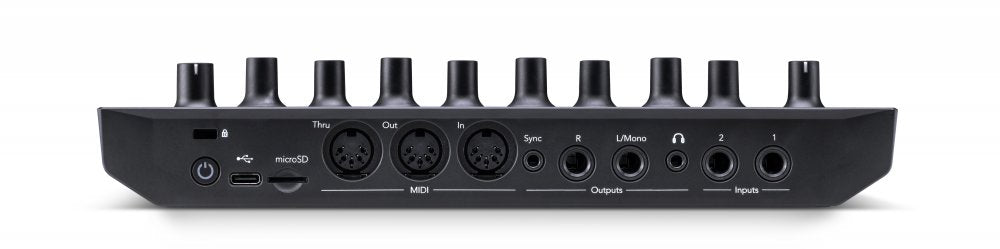

32 RGB backlit velocity sensitive pads28 RGB backlit tactile click buttonsPower button with charge status LEDUSB-C socketKensington MiniSaver slotMicroSD card slot3x MIDI DIN (In, Out, Thru)3.5mm sync out2x Mono audio inL/R Stereo outHeadphones out8x endless encoders with RGB indicatorsMaster volume potMaster filter pot with centre detent
Software Compatibility: Novation Circuit Tracks is class compliant so will work with any modern Mac or Windows PC.
Dimensions: 240mm length x 210mm depth x 30mm height (40mm height including knob caps)
March 12, 2021
Dawless power house
Really good device. Allows for 2 audio in, 3 midi configurable (either in, out or throughput), stereo audio out, headset out, usb. Plenty of packages for samples or synth patches. You get 2 synths tacks, 4 trum tracks and 2 midi tracks. Right now I am controlling 2 synths from this device and recording the audio with no issues. Read more
