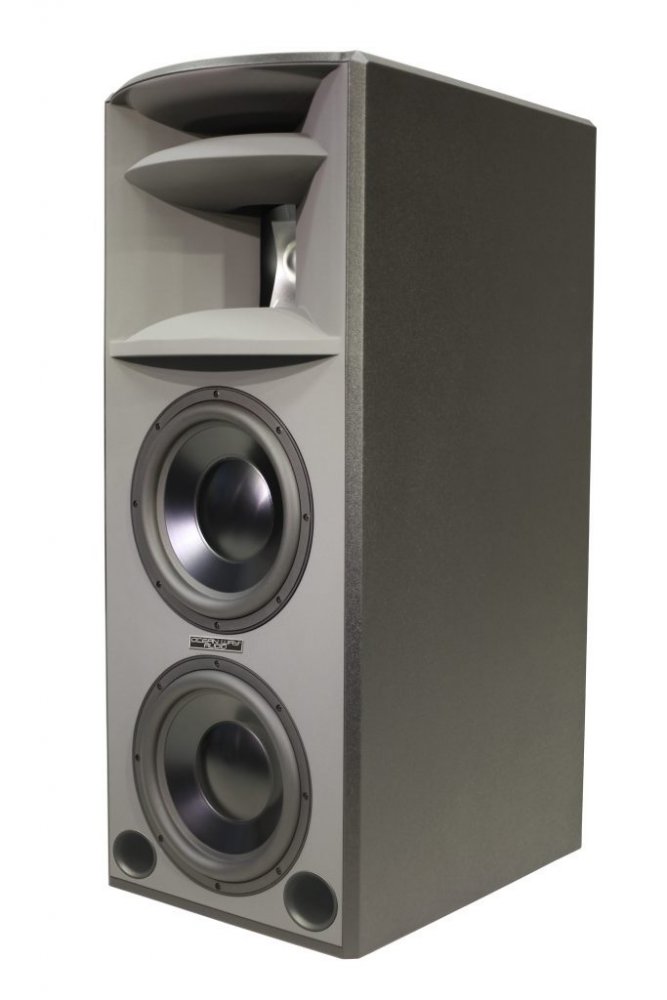

Ocean Way Audio HR3.5
Reference Monitor with 2-way dual-horn system, a 1" HF and 8" MF drivers, gray color
The Ocean Way Audio HR3.5 is based on the highly acclaimed HR4S studio monitor. This stand-alone or soffit-mounted monitor speaker delivers a frequency response of 20 Hz to 22 kHz. The HR3.5 Reference Monitor incorporates an integrated 2-way dual-horn system with a l" HF and 8 MF drivers, mechanically time-aligned with twin 12 sub-bass drivers per channel. State-of-the-art A-4100 amplifiers provided by OWA power this speaker with both analog and digital inputs, 96 kHz and 24 bit sampling, tri-amped delivering 3,400 watts per channel of pure power. At the heart of the acoustic design is OWA's geometrically-complex, CNC Composite dual/hybrid waveguide system.
The system delivers accurately-matched and detailed imaging with our signature unusually wide 100x40 degree horizontal and vertical dispersion, yielding a massive sweet-spot across a broad area of the listening environment. The consistency of its stereo image, even at the far corners of the room, is due to the highly-consistent directivity response of this unique speaker system.
Dimensions are 43H x 17.5 W x 25.5 D. Amplification is conveniently rack-mountable, allowing either soffit or free-standing installations. We carefully select and match each set of components, getting them as close as possible to achieve our high performance standards.
Our process could easily be compared to building a fine musical instrument.

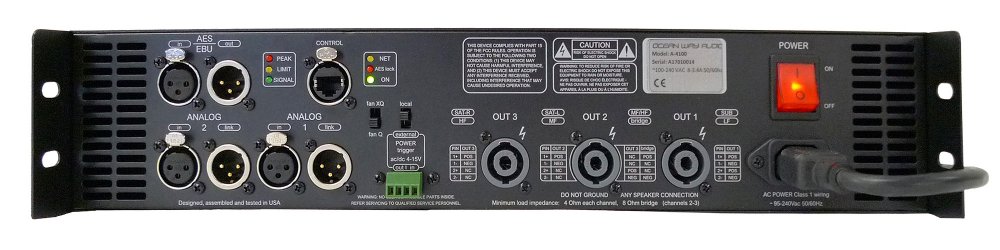

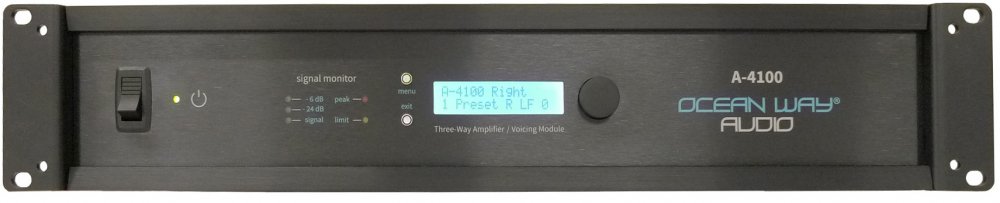

HiRes3.5 - Tri-amped proprietary integrated dual/hybrid waveguide system1" HF driver, 8" LF mechanically time-aligned with twin 12" sub-bass drivers per channelUltra-wide sweet spot, rich detailed controlled 100 H/40 V degree dispersion, 20Hz to 22kHz3400 watts/channel of pure power, Digital & Analog inputs, accepting 24bit/96kHz data streamsCapable of delivering 120db SPL with incredibly solid bass and center imaging performanceCan be set up free-standing or soffit-mounted with supplied remote amplifiersIncludes A-4100: Tri-Amplifier w/OWA Voicing Module & 15" cables
Powered: Yes. Accepts analog/digital inputs 24 bit/96 kHz
Driver Configuration: 3-way, compression-driven horns/waveguides
HF Driver Size/ Amp: 1"/500W per channel
MF Driver Size/ Amp: 8/500W per channel
LF Driver Size/ Amp: Twin 12/2400W per channel
Amplifiers: Rack-mountable, Soffit or Free Standing installations
Horz/Vert Directivity Ctr: 100 / 40 degrees
Frequency Range 3-Way: 20Hz-22kHz
Maximum Peak SPL 3-Way: 120dB
Enclosure Type: Ported
Dimensions: 43H x 17.5 W x 25.5"D
