Ocean Way Audio HR4 rev.2
MPN #HR4 rev.2
High Resolution 4; 2-way active main studio monitor with 250W 1" HF, 250W 8" LF drivers, Hybrid Horn/Waveguide System and 500W bi-amplification

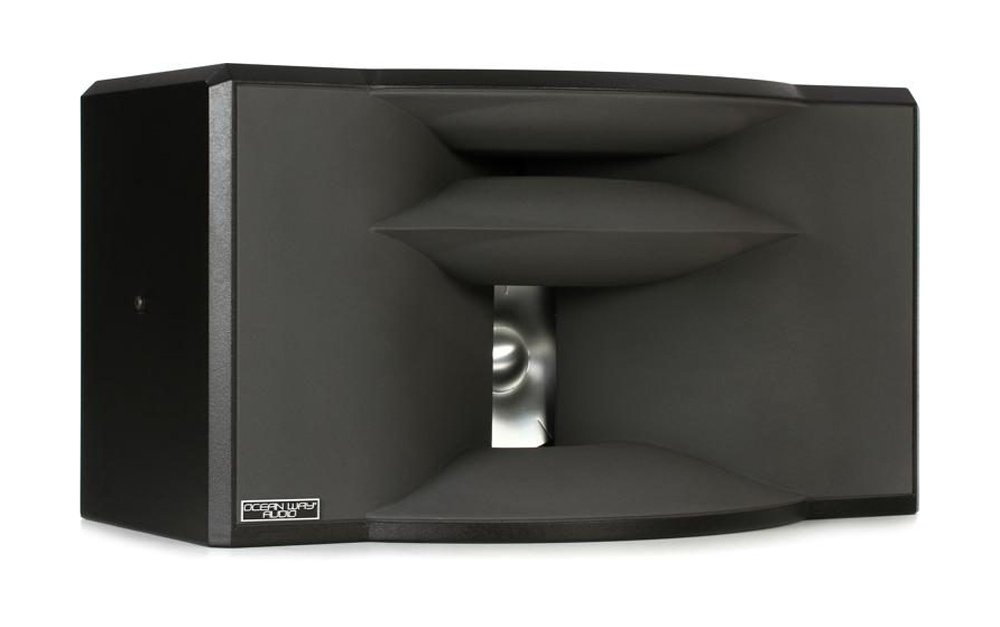

The Ocean Way Audio HR4 Reference Monitor is an accurate, wide dynamic range reference monitor for the recording studio environment. The HR4 is a 24", integrated 2-way dual-horn system that can be placed in any environment to provide an exceptionally accurate monitoring experience.
At the heart of the acoustic design is HR4's dual/hybrid waveguide system delivering a 100x40 degree window. Its unique design is realized with the aid of high-grade, 3D solid modelling. This accurate process allows for creating geometrically-complex surfaces that create accurately-matched and detailed imaging within the system. As a result, the HR4 delivers a stunning 100 degree dispersion pattern over a very wide audio range. An unusually-wide horizontal sweet-spot is revealed with rich detail across a broad area of the listening environment. The consistency of its stereo image, even at the far corners of the room, is delivered due to the highly consistent directivity response of the speaker system.
The HF driver is a high definition design with excellent mechanical linearity. The LF driver is geometrically reinforced aluminum cone with a vented cast aluminum chassis yielding optimum strength and low compression. Combined with the ported cabinet, the system is tuned to perfection with a seamless transition between the drivers. Our two-way, self-powered design delivers an unprecedented level of performance allowing for flexibility of placement in the room with a matched uniform frequency response of 35 Hz to 22 kHz, and an extraordinary 116 dB maximum SPL between channels. In spite of the HR4's minimal footprint, its exceptional low frequency response eliminates the need for a subwoofer. However... for those who wish to play their music exceptionally loud, we offer a 3-Way model comprised of two additional cabinets, each with 12 LF drivers.
High Resolution 4 - Proprietary 2-way compression-driven hybrid horn/waveguide systemUltra-wide horizontal sweet-spot with rich detail across a broad area of the listening zoneUnmatched Ultra-Wide 100 H / 40 V Degree Dispersion, 35Hz to 22kHzHigh resolution 1" HF Driver with excellent mechanical linearityGeometrically reinforced 8" aluminum cone LF Driver within ported cabinetDual/hybrid waveguide with superior detailed imaging250 watts/side, Digital & Analog inputs, accepting 24bit / 192kHz data streams3-Way Option available with a pair of 700 watt/side 12" Ported Subwoofers
Powered: Yes. Accepts analog/digital inputs 24 bit/192 kHz
Driver Configuration: 2-way, compression-driven horns/waveguides
3-Way Version Available: Yes
HF Driver Size/ Amp: 1"/125W
LF Driver Size/ Amp: 8"/125W
AES-3 Digital Inputs: Yes
Horz/Vert Directivity Ctr: 100 / 40 degrees
Frequency Range 2-Way: 35Hz-22kHz
Frequency Range 3-Way: 25Hz-22kHz
Maximum Peak SPL 2-Way: 116dB
Maximum Peak SPL 3-Way: 118dB
Enclosure Type: Ported
Maximum Peak SPL: 110dB
Dimensions: 14"H x 25.5"W x 14"D
Weight 57 lbs.

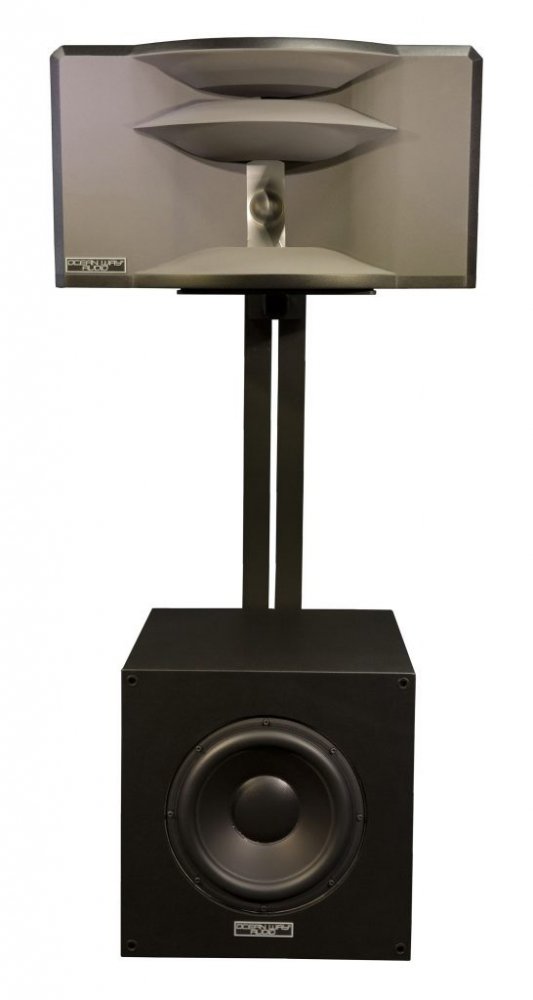

S12A 3-Way Optional Sub: 18"H x 18" W x 21.5"D
