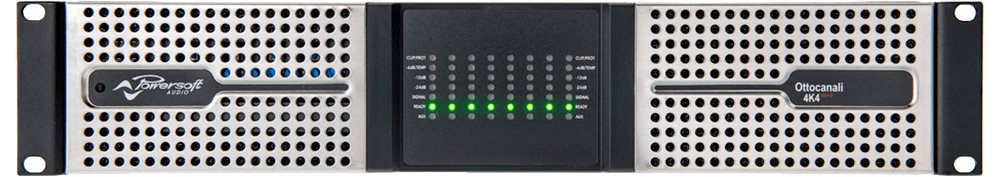

Powersoft Audio OTTOCANALI 4K4 DSP+D
4000W/8-channel flexible amplifier with DSP and Dante
The Ottocanali 4K4 DSP+D is a flexible and reliable 8-channel power amplifier with up to a total of 4,000 W at 4, ideal for multi-zone applications in small to mid-scale installs. Ottocanali 4K4 DSP+D supports any combination of lo-Z loudspeakers, mono-bridgeable channel pairs and 70V/100V Hi-Z distributed lines with no need for output step-up transformers. The Ottocanali 4K4 DSP+D features switchable main/aux signal inputs and offers a wide range of system control, alarms, GPI/O and monitoring functions as well as sound shaping options.
The Ottocanali 4K4 DSP+D implements universal switch mode power supplies with PFC and patented SRM (Smart Rails Management) technology maximizing reliability & efficiency and reducing power consumption.
New Ottocanali 4K4 DSP+D heralds new and innovative level of signal processing. Providing flexible routing and mixing, multi-stage equalization with raised-cosine, IIR and FIR filters, delay up to 2 s in input processing and 100 ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower limiters, and Active DampingControl.
Powersoft's legendary efficiency saves valuable energy, keeping both operational cost and 'carbon footprint' at a minimum: the Ottocanali 4K4 DSP+D shines with outstandingly low power consumption and heat dissipation. This dramatically reduces costs from the AC mains supply and air conditioning/cooling systems - not to mention the benefits to the environment for a greener planet.
MyPowersoft services are available for this product.
Redundant universal switch mode power supply up to 400VAC tolerant with Power Factor CorrectionFixed frequency switchmode output stage for high grade sound accuracyAll models 2 RU for reduced rack cost and spaceDirect drive either low impedance loads or 70V / 100V Hi-Z distributed linesSwitchable 35Hz / 70Hz high pass filter per channelControl and monitoring through ArmoníaPlus
Output power per channel : 450 W @ 2 - 500 W @ 4 - 250 W @ 8
Bridge mode : 900 W @ 4 - 1000 W @ 8
Max unclipped voltage @ 8 : 65V peak
Current : 15A peak
Power supply : Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement : 100-240 V ±10%, 50-60 Hz
Operating voltage : 90 V - 264 V
Power consumption/current draw idle : 115 V: 74 W - 0.85 A - 230 V: 77 W - 0.75 A
1/8 of max output power @ 4 : 115 V: 740 W - 6.6 A - 230 V: 750 W - 3.9 A
Operating temperature range : 0° - 35° C - 32° - 95° F
Thermal dissipation idle : 115 V: 253 BTU/h - 64 kcal/h - 230 V: 263 BTU/h - 66 kcal/h
1/8 of max output power @ 4 : 115 V: 801 BTU/h - 202 kcal/h - 230 V: 839 BTU/h - 211 kcal/h
1/4 of max output power @ 4 : 115 V: 1340 BTU/h - 338 kcal/h - 230 V: 1340 BTU/h - 338 kcal/h
