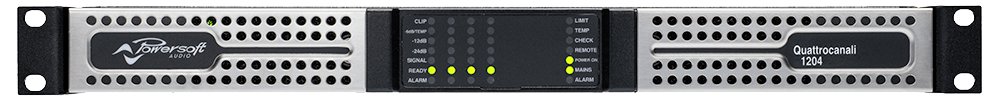

Powersoft Audio QUATTROCANALI 1204
1200W/4-channel flexible amplifier
Quattrocanali 1204 offers the traditionally amazing sound quality and reliability of all Powersoft products.
The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.
Quattrocanali is designed to operate with Lo-Z (from 2 ) and 70V/100V distributed lines, or any mix of the two.
This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.
MyPowersoft services are available for this product
Powersoft legendary universal switch mode power supply up to 400VAC tolerant with Power Factor CorrectionFixed frequency switch-mode output stage for high grade sound accuracyCompact size - all models only 1 RU for reduced rack cost and spaceRemote Control
Output power per Channel : 400 W @ 2 - 300 W @ 4 - 300 W @ 8
Bridge mode : 800 W @ 4 - 600 W @ 8
Max unclipped voltage @ 8 : 70V peak
Current : 33A peak
Power supply : Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement : 100-240 V ±10%, 50-60 Hz
Operating voltage : 90 V - 264 V
Power consumption/ current draw idle : 115 V: 31.0 W - 0.45 A 230 V: 31.8 W - 0.26 A
1/8 of max output power @ 4 : 115 V: 227 W - 2.1 A - 230 V: 251 W - 1.4 A
Operating temperature range : 0° - 45° C - 32° - 113° F
Thermal dissipation idle : 115 V: 107 BTU/h - 230 V: 109 BTU/h
1/8 of max output power @ 4 : 115 V: 262 BTU/h - 230 V: 345 BTU/h
