Presonus CDL-12P
UPC/EAN #673454009198
MPN #CDL-12P
12" LF driver, 8x2" HF array, 2000W peak, 130 dB SPL, 120 degree x 15 degree coverage, DSP presets, flyable, pole-mountable, lightweight, constant directivity

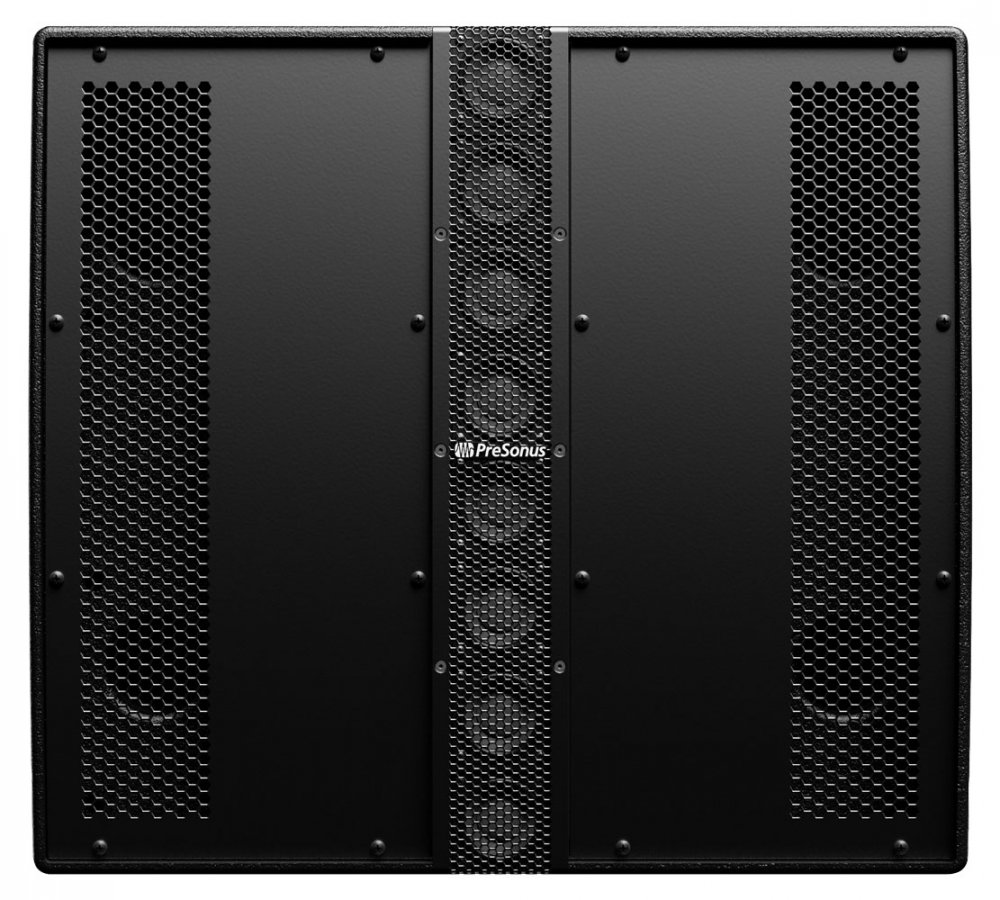

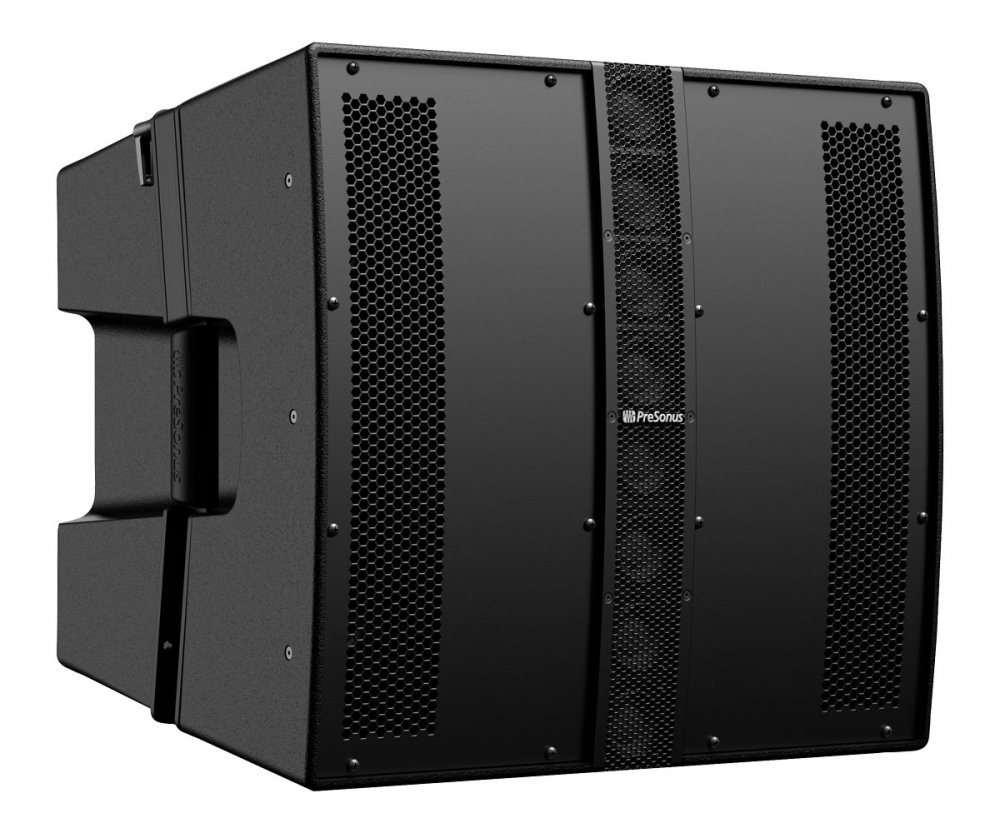

The PreSonus CDL12P Constant Directivity Loudspeaker brings professional-grade performance to portable and mobile sound reinforcement. Designed for touring bands, DJs, and installation professionals who demand consistency and clarity, the CDL12P combines a 12-inch woofer with eight 2-inch high-frequency drivers in a hybrid point-source/line-array configuration. This unique, patent-pending design ensures a tight 120 degree horizontal x 15 degree vertical dispersion with consistent SPL across the listening area - ideal for delivering clear speech and natural music reproduction in any venue.

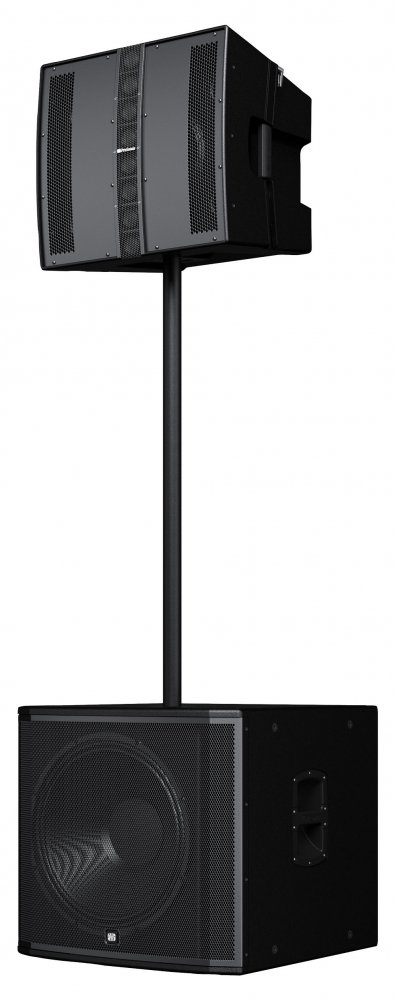

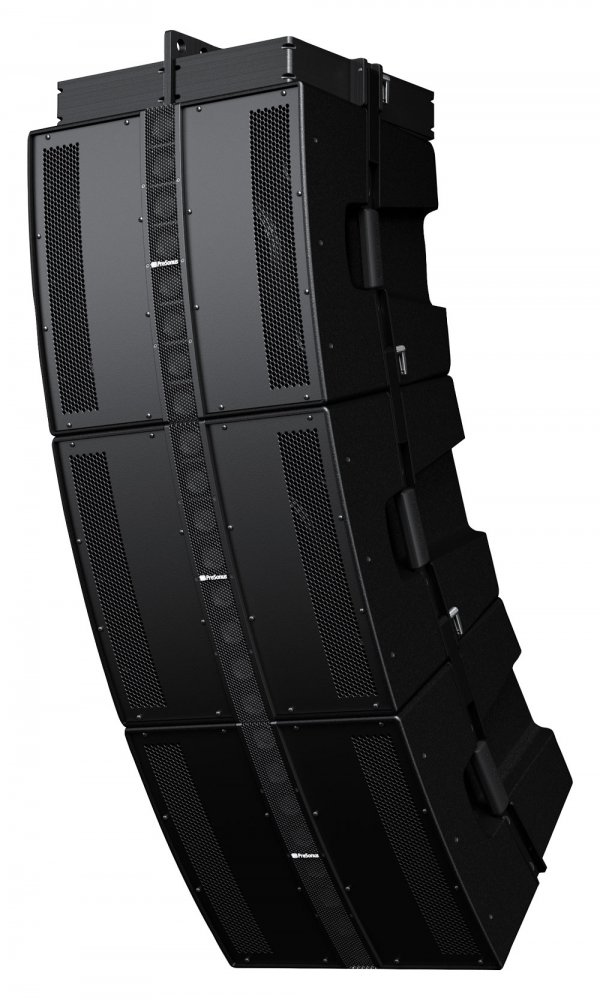

Each CDL12P is bi-amplified with 500W for both the low and high-frequency sections, powered by efficient Class D amplifiers. A low crossover point of 420 Hz minimizes phase interference and comb filtering, making arrays of up to six CDL12Ps sound smooth and coherent across the entire frequency range. Onboard DSP presets streamline configuration, with options for array modes, subwoofer pairing (including CDL18s, ULT18, and AIR18s), and high-pass filtering. The lightweight, rugged plastic enclosure and integrated rigging hardware make it easy to deploy in flown or pole-mounted setups.
Whether used solo or in a stacked array, the CDL12P excels in mobile or fixed applications that require high-output, high-fidelity sound. With its powerful sound, precise coverage, and user-friendly setup, it's a smart solution for audio professionals who need the sonic benefits of a line array in a compact, flexible form.
Features
Hybrid point-source and line-array design for even sound coverage120 degree horizontal and scalable 15 degree vertical dispersion12" woofer and eight 2" HF drivers for clear, consistent audioDual 500W Class D amplifiers with onboard DSP presetsEasy rigging and dual-angle pole mounting for flexible setupsDurable, lightweight enclosure ideal for portable applicationsOptimized crossover at 420 Hz for smooth frequency blendingSupports arraying up to six units for scalable sound reinforcement
Specifications
General Specifications
Product Name: CDL12P Constant Directivity Sound Reinforcement LoudspeakerSeries: CDLProduct Type: Active 2 Way Full Range LoudspeakerColor: BlackSpeaker Type: Hybrid Point Source Line ArrayPower Cable: Locking AC In and OutVoltage Requirements: 100 to 240 VAC 50 to 60 Hz
Power and Amplification
Amplifier Type: Class DTotal Power Output: 2000W Peak 1000W Program 500W RMSLF Power: 1000W Peak 500W Program 250W RMSHF Power: 1000W Peak 500W Program 250W RMSPower Consumption: 4.2ACooling: Free Air Convection

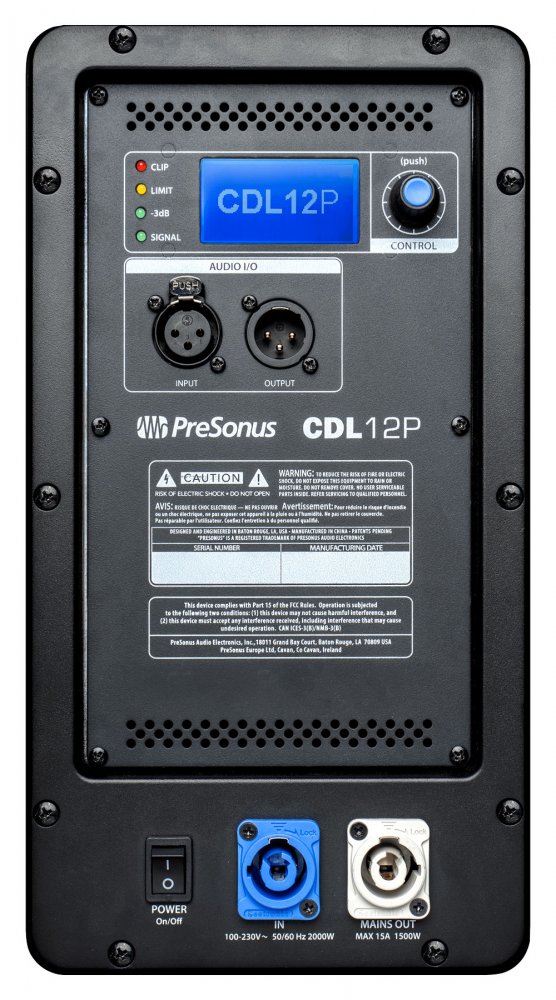

Input Output Connections
Inputs: 1 XLRLine Out: 1 Direct Line Out XLRLine Input Impedance: 40 kOhms
Driver Specifications
LF Transducer: 12 inch with 2.5 inch Voice CoilHF Transducers: 8 x 2 inch Cones with 1 inch Voice Coils
Performance
Peak SPL: 130 dBTotal Harmonic Distortion: Less than 0.05 percent 20 Hz to 20 kHzAmplifier Dynamic Range: 119 dB A WeightedCoverage Pattern: 120 degrees Horizontal x 15 degrees VerticalCrossover Frequency: 420 Hz
DSP and Controls
Onboard DSP Features: High Pass Filter Array Mode 1 to 6 Boxes Sub Mode Off CDL18s ULT18 AIR18sAudio Controls: Preset Select for Array Count High Pass Filter On Off Subwoofer Configuration
Cabinet and Construction
Cabinet Material: 15 mm Eucalyptus PlywoodGrille Material: Powder Coated SteelHandles: 2 SideSuspension: Integrated Rigging 10 to 1 Load RatedPole Socket: Dual Position 0 degrees and 7.5 degrees
Protection Features
Amplifier Protection: Over Current DC Over Under Voltage Over Temperature High FrequencyTransducer Protection: Limiter
Dimensions
Width: 20.5 inchesHeight: 18.5 inchesDepth: 18.25 inches
