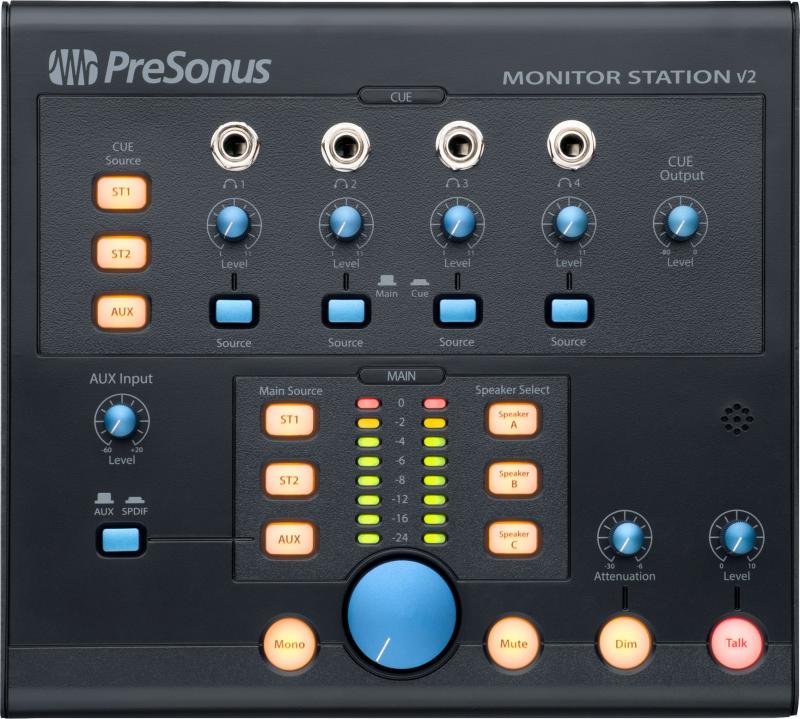

Presonus Monitor Station V2
MPN #Monitor Station V2
Take Control of Your Monitors with the Monitor Station V2. The complete desktop speaker-management solution.
Equip your studio with pro monitoring features for a song.
Manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummer all from your desktop.
Consider your sources.
Switch quickly and easily between up to four audio sources with a selection of input types.
Manage Your Destinations.
Audition your music with your choice of three stereo pairs of speaker outputs, each with separate level control. Four screaming-loud headphone outs and a talkback mic ensure your musicians hear every note and your instructions clearly.
Customize your system for the way you work.
There's more to managing a monitoring system than I/O, level controls, and talkback. The Monitor Station V2 offers powerful options that allow you to configure it for the way you like to work.
Take control of your monitor system.
With its ergonomic, intuitive layout; extensive features and I/O; and PreSonus' famed sound quality, Monitor Station V2 provides a versatile, convenient, and affordable solution for managing your studio monitoring system from your desktop. So sashay down to your PreSonus® dealer and take control of your monitoring system the way the professionals do!

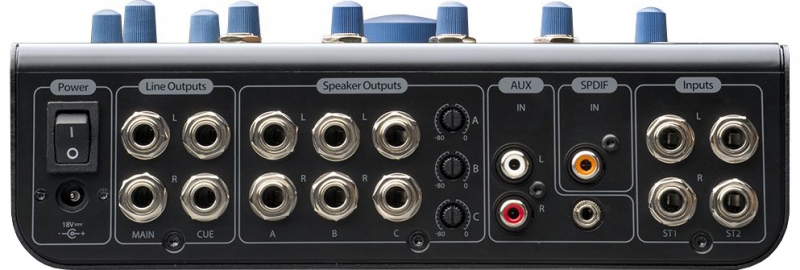

Inputs and Outputs
2 Stereo pairs of ¼" TRS inputs1 Stereo pair of RCA Aux inputs1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)3 Stereo pairs of ¼" TRS speaker outputs with level controls1 Stereo pair of ¼" TRS Main outputs1 Stereo pair of ¼" TRS Cue outputs4 ¼" TRS screaming-loud stereo headphone outputs
Large Main level control3 Individual Main Source (ST1, ST2, Aux) select switches3 Individual Speaker Select switchesCue section with Source select (ST1, ST2, Aux) and output-level controlAux-S/PDIF Select switchAux Input level controlMain Mute, Mono, and Dim switches with variable Dim attenuation
8-segment color LED input meters with selectable reference levelBuilt-in electret-condenser talkback microphone with input-gain control and Talkback buttonConvenient desktop design
Internal Talkback Microphone
Gain Range: +15 to +55 dBType:: Electret condenserSensitivity:: -42 dB
Stereo 1 and Stereo 2 Inputs
Type:: ¼" TRS Active BalancedInput Impedance (Balanced): 10 kS/N Ratio (1 kHz @ +10 dBu, Unity Gain): >105 dBTHD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.0075%Frequency Response (±0.5 dB):: 10 Hz to 65 kHzNoise Floor (20 Hz to 20 kHz, 150 input termination): -96 dBuMaximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N): +22 dBu
Type: RCA Active UnbalancedInput Impedance: 47.5 kS/N Ratio (1 kHz @ 0 dBu, Unity Gain): >115 dBTHD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.01%Frequency Response (±0.5 dB): 10 Hz to 50 kHzGain Range: 80 dB to +10 dB
Types: RCA 75 coaxDynamic Range: 113 dBTHD+N: 0.0025% (1 kHz @ -1 dBFS)Maximum output at 0 dBFS: +18 dBuSample Rates: 44.1, 48, 88.2, 96 kHz
Input Meters (ST1, ST2, and Aux only)
Type: Dual 8-segment LED w/peak holdSensitivity Range: -24 dB to 0 dB
Type: ¼" TRS Active Balanced
Output Impedance (Balanced): 51THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain): <0.01%Frequency Response (±0.5 dB): 10 Hz to 50 kHz
Speaker A, B, and C
Trim Range: -80 dB to 0 dBMain Level Range: -80 dB to 0 dBDim Attenuation Range: -30 dB to -6dB
Cue Level Range: -80 dB to 0 dBDim Attenuation (Talkback activated): -20 dB
Type: ¼" TRS Active StereoMaximum Output (60 load): 150 mW / channelFrequency Response (±1.0 dB): 10 Hz to 50 kHz
Power Supply Type: External DC Transformer/Internal Line
Input Connector Type: Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
Monitor Station Input Voltage Range: 18 VDC
Power Requirements (Continuous): 10W
Height: 2.5" (63.5 mm)
Depth: 8.5" (216 mm)
Width: 9" (228.6 mm)
Weight: 6 lbs. (4.54 kg)
