Presonus StudioLive SE 16
UPC/EAN #673454013003
MPN #STUDIOLIVE-SE16
StudioLive Series III SE 16 digital mixer, 40 channels, 26 buses, 17 motorized faders, 64x64 USB, AVB/Milan networking, onboard SD recorder, Studio One Pro included
The StudioLive Series III SE 16 Digital Console Mixer is a 40-channel, 26-bus powerhouse designed to deliver pristine studio-quality sound in a rugged, stage-ready format. Featuring 17 motorized faders, a 64x64 USB audio interface, and Milan-certified AVB audio networking, this mixer combines flexible connectivity with high-end processing for live performance, recording, streaming, and broadcast applications. Its split-fader design and high-contrast user interface enhance visibility and workflow, while onboard SD multitrack recording and seamless DAW integration (with included Studio One Pro and Capture software) enable powerful, one-click Virtual Soundcheck and real-time multitrack capture.
Under the hood, the FLEX DSP Engine powers advanced Fat Channel processing, giving users access to modeled compressors and EQs inspired by iconic hardware units-alongside four effects buses, 24 DCAs, and 16 fully configurable FlexMixes. Remote control is made easy with Metro and Universal Control, letting engineers manage routing, levels, and processing from anywhere, while performers can control their own monitor mixes via QMix-UC. Built for versatility and precision, the StudioLive SE 16 is the ideal solution for live events, touring, installations, and worship spaces demanding a professional, all-in-one digital mixing solution.
Features
All-in-One Mixing Console: 40-channel, 26-bus digital mixer with 17 motorized faders for hands-on control and smooth automation.Integrated Multitrack Recording & Streaming: Record to onboard SD card or via 64x64 USB interface; supports seamless playback, live streaming, and one-click Virtual Soundcheck.Studio-Quality Sound Engine: 32-bit floating-point DSP, 115 dB converters, and XMAX-Remote preamps deliver pristine, low-noise audio on stage or in studio.Flexible Connectivity: Supports AVB networking with StudioLive Stage Boxes and Milan-compatible gear for scalable I/O solutions.Powerful Onboard Processing: Includes full Fat Channel Collection-modeled EQs, compressors, reverb, and more-with customizable channel strip workflow.Remote Access and Control: Configure and manage the mixer remotely with Metro, Universal Control, and QMix-UC personal monitor mixing appVersatile Mixing Tools: 16 FlexMixes, 4 subgroups, 4 effects buses, and 24 DCAs offer deep routing and mix customization.Intuitive and Ergonomic Design: High-contrast touchscreen, redesigned fader caps, and streamlined layout maximize visibility and ease of use.Free Software Included: Comes with Studio One Pro DAW and Capture software for professional recording and editing right out of the box.
Specifications
General Specifications
Product Name: StudioLive Series III SE 16 Digital Console MixerSeries: StudioLiveSKU: 2779200308Color: BlackWeight: 23.15 lbsDimensions: 17.59 in W x 22.97 in D x 6.51 in HPower Consumption: 85 WVoltage Requirements: 100-230 VAC 50-60 HzOperating Temperature: 0 to 40 Celsius
Mixing and Processing
Total Channels: 40Buses: 26FlexMixes: 16 configurableSubgroups: 4DCAs: 24Motorized Faders: 17 touch-sensitiveDSP: 32-bit floating point dual-core FLEX DSP engineAD/DA Conversion: 115 dB dynamic rangeInternal Bit Depth: 32-bitTotal System Latency: 1.9 ms
Recording and Interface
USB Audio Interface: 64 x 64 USB 2.0Integrated SD Recorder: WAV formatSD Bit Depth: Record 24-bit, Playback 16 or 24-bitSD Sample Rates: 44.1 or 48 kHzSD Media Support: FAT16 SD and FAT32 SDHC up to 32 GBFile Format: WAV
Software Integration
DAW Compatibility: Studio One Pro, other DAWsIncluded Software: Studio One Pro, CaptureVirtual Soundcheck: One-click via CaptureRemote Access: Metro and Universal ControlMonitor Mixing App: QMix UC

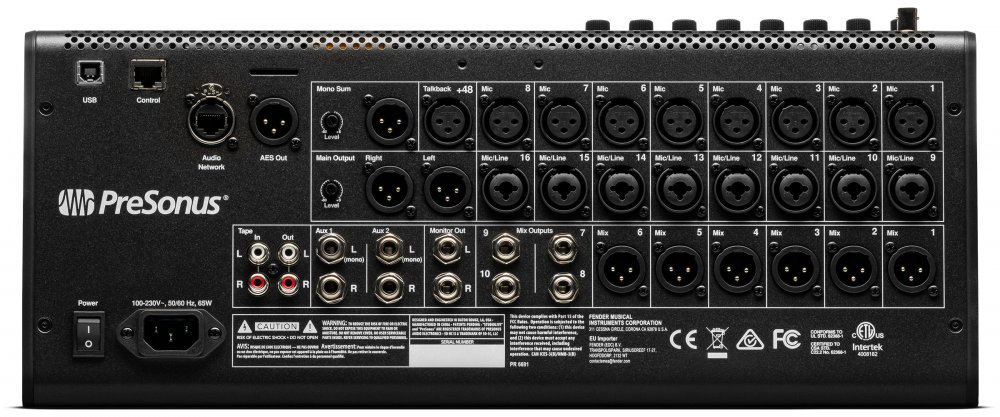

Audio I/O
Microphone Inputs: 17 XMAX-Remote preampsMic Input Type: XLR Female balancedMic Input Impedance: 1 kOhmMic Gain Range: 0 dB to 60 dBMic Max Input Level: +12 dBuMic SNR: 94 dBMic THD: <0.005%Line Inputs: 1/4 in TRS balancedLine Input Impedance: 10 kOhmLine Input Max Level: +18 dBuLine Input SNR: 94 dBLine Input THD: <0.005%Line Outputs: 1/4 in TRS balancedLine Output Max Level: +18 dBuLine Output Impedance: 100 OhmsXLR Outputs Max Level: +24 dBuXLR Output Impedance: 100 OhmsTape In/Out: RCA stereo unbalancedTape In Max Level: +12 dBuTape Out Max Level: +18 dBuTape Out Impedance: 100 OhmsHeadphone Jack: 1/4 in TRS stereoHeadphone Output Power: 100 mW per channel at 60 OhmsHeadphone SNR: 96 dBHeadphone THD: 0.01%Headphone Frequency Response: 20 Hz to 20 kHz
Digital Connectivity
USB: Type B USB 2.0AVB Audio Network: Neutrik etherCONNNetwork Control: RJ45AES EBU Output: XLR Male
Audio Processing Features
Fat Channel Processing: 8 compressors and 7 EQ modelsModeled Hardware: Brit Comp, FC 670, Tube EQReverb: XL presets, diffusion, predelay, room size, dampingEffects Buses: 4Customization: Scribble strip displays, dynamic Fat Channel
Monitoring and Control
Remote Control: Full control via Metro, Universal Control, mobile devicesPersonal Monitoring: QMix UC supportDisplay: Flat ergonomic screen with high contrast UIFader Caps: Ergonomic design for visibility and comfort
