Presonus StudioLive SE 24

UPC/EAN #673454013065 MPN #STUDIOLIVE-SE24

Be the first to write a review

Free shipping in Canada. Conditions

StudioLive Series III SE 24 digital mixer, 40 channels, 26 buses, 25 motorized faders, 64x64 USB, AVB/Milan networking, onboard SD recorder, Studio One Pro included

The StudioLive Series III SE 24 Digital Console Mixer is a 40-channel, 26-bus digital mixer featuring 25 touch-sensitive motorized faders, a 64x64 USB audio interface, and Milan-certified AVB networking, designed for professional live sound, recording, and streaming workflows. With 33 XMAX-Remote preamps and 32-bit floating-point processing, it delivers ultra-low noise and studio-grade clarity in a sleek, rack-mountable form factor.

Equipped with Studio One Pro and Capture software, the SE 24 offers integrated multitrack recording, playback, and one-click Virtual Soundcheck-right from the console. The intuitive layout includes 16 fully configurable FlexMixes, advanced Fat Channel processing with modeled vintage EQs and compressors, and four FX buses. With remote control via Metro, Universal Control, and QMix-UC, this mixer empowers engineers and performers alike with full system access from any device, anywhere. Designed to grow with your system, the SE 24 supports networked stage boxes and Milan-compatible gear, ensuring total flexibility and future-ready performance.

Features

Full-Featured Digital Mixer: 40-channel, 26-bus mixer with 25 touch-sensitive motorized faders and intuitive, ergonomic layout.

Integrated Multitrack Recording & Streaming: Record every channel via 64x64 USB interface or onboard SD card; includes one-click Virtual Soundcheck.

Pristine Studio Sound On Stage: Equipped with 33 XMAX-Remote preamps, 32-bit floating-point DSP, and 115 dB A/D"D/A converters.

Flexible AVB Audio Networking: Seamlessly integrates with StudioLive Stage Boxes and Milan-certified gear for scalable system expansion.

Comprehensive Signal Processing: Includes the full Fat Channel Collection with 7 modeled EQs and 8 compressors, plus advanced reverb and limiter features.

Remote Access and Control: Configure and manage your entire mix from anywhere using Metro, Universal Control, and QMix-UC for personal monitor mixing.

Customizable Routing and I/O: 16 FlexMixes, 4 subgroups, 4 effects buses, 24 DCAs, and multiple network and USB ports provide deep routing flexibility.

Streamlined Workflow Design: High-contrast display, redesigned fader caps, and compact footprint support long sessions and tight spaces.

Professional Software Included: Comes bundled with Studio One Pro DAW and Capture software for recording, editing, and virtual soundcheck.

Specifications

General Specifications

Product Name: StudioLive Series III SE 24 Digital Console Mixer

Series: StudioLive

SKU: 2779200309

Color: Black

Weight: 30 lbs

Dimensions: 25.98 in W x 22.97 in D x 6.51 in H

Power Consumption: 85 W

Voltage Requirements: 100 to 230 VAC 50 to 60 Hz

Operating Temperature: 0 to 40 Celsius

Mixing and Processing

Total Channels: 40

Total Buses: 26

FlexMixes: 16 configurable as auxes subgroups or matrix

DCAs: 24

Subgroups: 4

Motorized Faders: 25 touch sensitive

DSP Engine: 32 bit floating point dual core FLEX

AD and DA Converters: 115 dB dynamic range

Total System Latency: 1.9 ms

Internal Bit Depth: 32 bit

Digital Audio Bit Depth: 24 bit

Reference Level for 0 dBFS: plus 18 dBu

Crosstalk Adjacent Channels: minus 87 dB

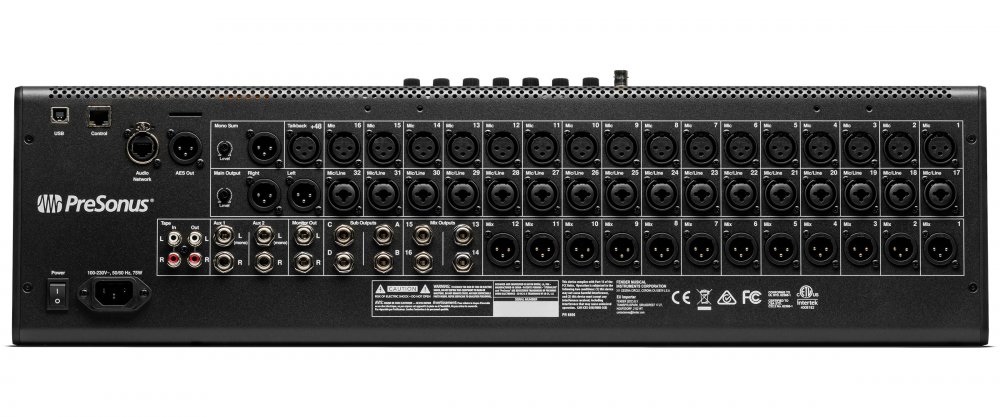

Audio I/O

XMAX Remote Preamps: 33

Microphone Input: XLR female balanced

Mic Input Impedance: 1 kOhm

Mic Gain Range: 0 to 60 dB

Mic Max Input Level: plus 12 dBu

Mic SNR: 94 dB

Mic THD: less than 0.005 percent

Line Input: 1/4 in TRS female balanced

Line Input Impedance: 10 kOhm

Line Input Max Level: plus 18 dBu

Line Input SNR: 94 dB

Line Input THD: less than 0.005 percent

Line Output: 1/4 in TRS female balanced

Line Output Max Level: plus 18 dBu

Line Output Impedance: 100 ohms

XLR Output Max Level: plus 24 dBu

XLR Output Impedance: 100 ohms

Tape I/O: RCA stereo unbalanced

Tape In Max Level: plus 12 dBu

Tape Out Max Level: plus 18 dBu

Tape Output Impedance: 100 ohms

Headphone Output: 1/4 in TRS stereo

Headphone Max Output: 100 mW per channel at 60 ohms

Headphone Frequency Response: 20 Hz to 20 kHz

Headphone SNR: 96 dB

Headphone THD: 0.01 percent

Digital Connectivity

USB Interface: USB 2.0 Type B

USB Audio Channels: 64 x 64

AVB Network Ports: Neutrik etherCONN

Network Control Port: RJ45

AES EBU Output: XLR male

Recording and Storage

Onboard SD Recorder: WAV format

SD Bit Depth: Record 24 bit Playback 16 or 24 bit

SD Sample Rates: 44.1 and 48 kHz

Media Format: FAT16 SD and FAT32 SDHC

SD Storage: SD card 2 GB SDHC card up to 32 GB

Software Integration

Included Software: Studio One Pro Capture

Virtual Soundcheck: One click with Capture

DAW Compatibility: Studio One Pro and major DAWs

Remote Control: Metro suite Universal Control app

Personal Monitor Mixing: QMix UC

Audio Processing Features

Fat Channel: 8 compressors and 7 EQ models

Modeled Processors: Brit Comp FC 670 Tube EQ

Reverb: XL presets with advanced parameters

Customization: Scribble strip displays dynamic interface

Control and Interface

Display: High contrast ergonomic flat screen

Fader Caps: Redesigned for comfort and visibility

Control Access: Routing levels processing from any location via Metro or mobile devices
