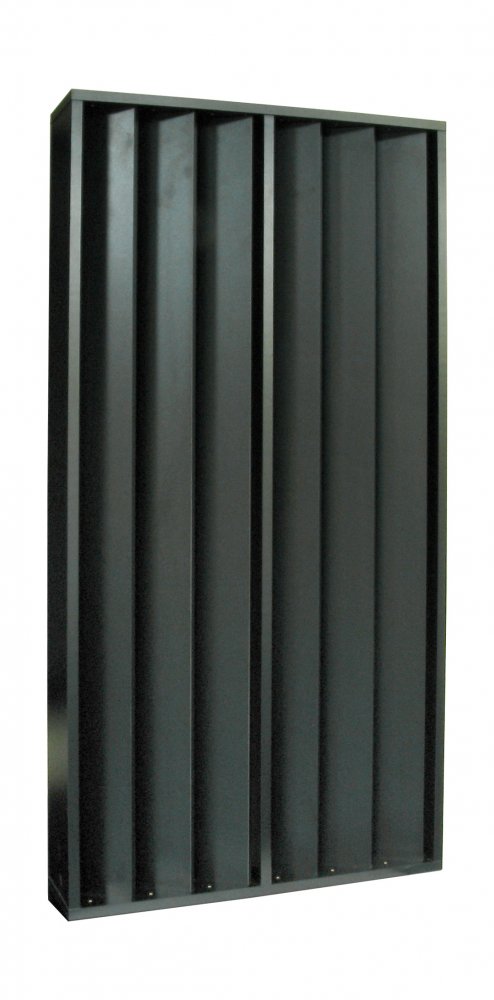

Primacoustic Flexifuser Variable Pitch Diffuser
Combination variable slat diffuser and absorber, 24" x 48" x 8"
The Primacoustic FlexiFuser is an innovative acoustic device that combines diffusion with absorption to disperse high frequency flutter echo and control primary reflections.
The Primacoustic FlexiFuser is an innovative acoustic device that combines diffusion with absorption to disperse high frequency flutter echo and control primary reflections.Measuring 24" x 48" (60.96cm x 121.92cm), the FlexiFuser is equipped with six variable pitch slats that span the full top-to-bottom height. These are rotated at varying angles to disperse high frequencies, creating the desired energy spread that best suits the room and seating position. Behind the slats is a high-density 2" (5.08cm) thick acoustic panel that effectively absorbs directional energy down to 250Hz while eliminating resonant build-up behind the slats.
Made from hard, heavy wood composite for maximum reflection, the Flexifuser ships flat to save freight. Assembly takes less than 15 minutes using standard household tools. The 3" (7.62cm) wide slats can be fixed in a predetermined position using the supplied guide pins or left free to rotate after assembly is complete. The absorptive acoustic panel is made from 6lb high-density glass wool for even absorption right down into the critical lower mid range zone. Micromesh encapsulated with resin hardened edges, the Broadway panel is then covered in an architecturally neutral grey fabric that easily integrates into most room décors.

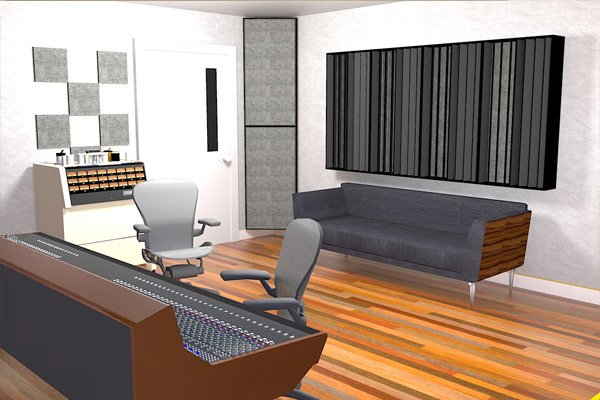

FlexiFusers are typically mounted behind the listening position in an array of three or more units that span the width of the work area and are hung in place using a simple French cleat. Once in position, they introduce a sense of space and air into the room while absorbing powerful reflections, standing waves and bothersome flutter echo. This makes the Flexifuser particularly well suited for control rooms, more demanding home theatres and smaller studios where near-wall primary reflections are of utmost concern.
The FlexiFuser is a combination diffuser and absorber that helps eliminate standing waves and flutter echo without over deadening the room.

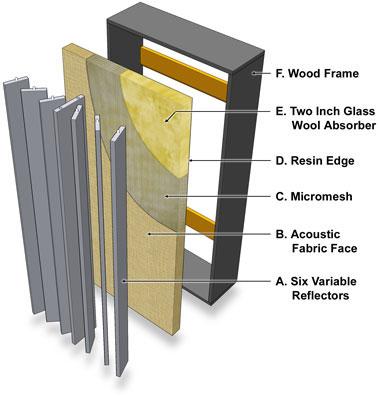

The innovative design begins with six variable pitch slats (A) that can be rotated or set in position to redirect sound energy away from the primary listening space. Behind the slats is a high density 6lb glass-wool absorber (B). This works double duty by eliminating any internal resonance while further absorbing unwanted room reflections. This is augmented with air space behind the panel to increase bass absorption.
The outer frame (F) is made from easy to clean black melamine coated MDF wood composite. The FlexiFuser ships flat in kit form to save freight costs and assembles in about 30 minutes using standard household tools. Once together, the device is wall mounted using the supplied French cleats. The FlexiFuser comes with a grey acoustic panel.
Combination variable slat diffuser and absorberEliminates flutter echo and standing wavesAllows you to adjust diffusion angles to suitIdeal for recording studios and home theatre
Frame Material: Black melamine laminated MDFDimensions: 24" x 48" x 8" (610mm x 1219mm x 203mm)Panel Material: Formed, semirigid inorganic glass fibers;Density 6.0 lbs. pcf. (96 kg/m3)Fabric Facing: Acoustically transparent polyesterOrder Number: Z840-1135-08Mounting Hardware: Wall mounting cleat, wood screws and drywall anchors included.
