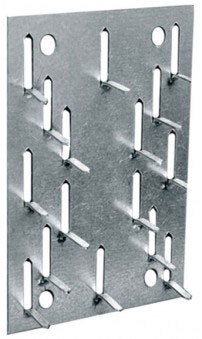

Primacoustic Push-On Impaler has been developed to increase the speed of installation for commercial contractors.
This employs a series of sharp, protruding darts that allow the acoustic panel to be precisely positioned on the wall without having to fret about a hanging offset. The design also allows panels to be butted up end-to-end for seamless installations where larger acoustic surfaces need to be created.
Shipped 24 to a box, the Push-On Impaler is made from a heavy galvanized steel plate and is equipped with elongated mounting slots for stud mounting. Installation is equally easy in plaster board, sheetrock or masonry using the triple-action Cobra Anchors.
For more security in high traffic zones, the Push-On Impaler is equipped with a glue zone at the center of the panel. This allows you to add a dab of adhesive to firmly hold the panel in place. This is also a good idea when installing Broadway panels in public places such as schools. Since the adhesive only makes contact with the Impaler and the panel, you do not suffer the problem associated with foam panels that causes wall defacement due to the glue residue.
Protruding spinal darts for direct push-on installationLets you snug panels together end-to-endMinimal wall defacement only requires filling a hole
Material: 20 gauge galvanized steelDimensions: 3" x 5" (7.62cm x 12.70cm); Offset 3.5" ( 8.89cm) from wall surfaceAttachment Points: 4 (Use an appropriate fastener for wall surface)Max Load Limit: 10lbs (4.53kg) dependant on wall fastenerNumber per Box: 24 per box
Manufacturer Part Number : F101-1003-00
April 25, 2019
Primacoustic Impaler - An ideal solution
I used these push on impalers to intstall 1 inch thick 4 x 8 foot edge hardened fibreglass panels in my listening/music room. These impalers made the installation a breeze and the panels are very securely attached to the wall. There is an option to add Read more
glue between the panel and impaler but my panels on the wall are so solid I didn't need to do that.
Very Highly recommended!
