MPN #Z860 1002

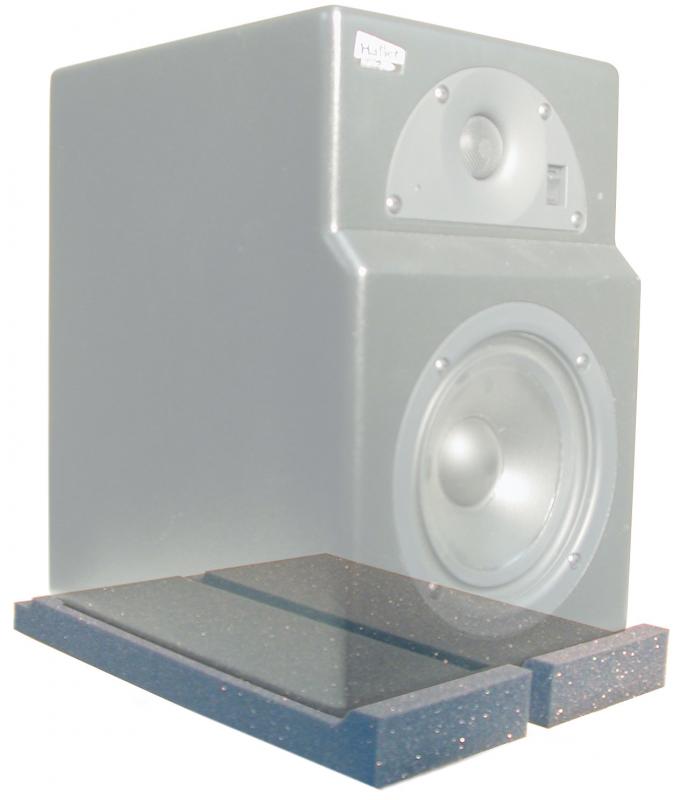

The IsoPlane is a monitor isolation pad designed to decouple the sound from the loudspeaker so that it will not resonate with the desk or shelf.
This helps reduce an effect called comb-filtering that occurs when various frequencies add or cancel with each other when coupled.
The IsoWedge is angled while the IsoPlane is flat. This allows the user to select between either platform shapes to optimize the studio setup. The IsoPlane can also be used to decouple turntables and other devices that can be adversely affected by sound resonating through the floor and furniture.
Sold in sets of four units, the IsoWedge and IsoPlane are designed to be used in pairs and spaced under the monitor as a means to distribute the weight. The cost effective design makes them ideal for home studio use and other applications where vibrations are an issue and decoupling is required.
IsoPads were conceived to improve the accuracy of your studio monitors and home theater loudspeakers by minimizing the transfer of vibrations from loudspeakers to the structures supporting them. IsoPads are available in two profile shapes for horizontal and angled applications.
The IsoPlane system consists of 4 pieces of high density, low compression polyurethane foam, enough for two loudspeakers or two turntables. Each piece measures 12.75" x 4.5" with a maximum overall height of 1.5". The IsoPlane is cut with a planar profile making it useful for isolating equipment that requires a level surface.
The ISO Wedge system consists of 4 pieces of high density, low compression polyurethane foam, enough for two loudspeakers. Each piece measures 12.75" x 4.5" with a maximum overall height of 2". The ISO Wedge is cut with a 6° slope and is intended to accommodate monitors when placed on a tall meter bridge or low table top where the monitor speakers will need to be aimed down or up for the best on-axis positioning.
Eliminates resonance from loudspeakers to shelfMade from high density open cell acoustic foamDown-fire angle to optimize monitor placementCost effective solution for home studio recording
Core Material: High density polyurethane foamDensity: 1.8lbs per cubic foot (28.83 kg/m3)Color: Dark charcoal grey, UV resistantProfile: HorizontalQty: 4Height: 1.5", 4cmWidth: 4.5", 11cmDepth: 12.75", 32cmMax Load: 44 Lbs, 20 Kg
