Prism Sound ADA-8XR AD Analog Input Module

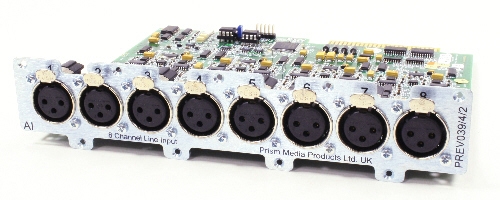

The 8C-AD Analogue Line Input Module type PREV039/4/2 provides eight electronically-balanced analogue input channels to the ADA 8XR, on eight female XLR connectors.

Input line-up level (sensitivity) is variable for each channel over the range 0dBFS=+5.0dBu to 0dBFS=+24.0dBu, in 0.5dBu steps plus a fine trim.

Each channel has a Prism Sound Overkiller progressive limiter capability, which prevents the A/D converter from reaching full-scale, even when the input level significantly exceeds the selected input range. More information about the Prism Sound Overkiller can be found in the Technical Background section of the Operation Manual.

Control of the input line-up level and trim, and of the Overkillers, is via menus which are present in the ADA-8XR Menu System if the Module is fitted.
  • Connections : Electronically balanced inputs, female XLRs
  • Differential input impedance : 21k5 Ohm
  • Full-scale input range (software-controlled) : +5dBu..+24dBu in 1dBu steps, trims in 0.05dBu steps
  • Absolute gain accuracy : +/-0.05dB
  • CMRR : 60Hz:<-100dB, 1kHz:<-90dB, 20Hz..20kHz:<-65dB
  • Overkiller : Software selectable On/Off
  • THD+N : (997Hz, -1dBFS) -105dB (0.0006%)
  • Dynamic range : (997Hz, -60dBFS) 112dB
  • IMD (SMPTE/DIN, 60Hz@-3dBFS & 7kHz@-12dBFS) : <-100dB
  • Maximum aharmonic spurium (997Hz @ -1dBFS) : <-130dBFS
  • Frequency response fs=192kHz : -0.05dB: 6.2Hz..50.2kHz; -3dB: <1Hz..77.7kHz
  • Frequency response fs=96kHz : -0.05dB: 6.1Hz..43.3kHz; -3dB: <1Hz..48kHz
  • Frequency response fs=48kHz : -0.05dB: 5.5Hz..22.8kHz; -3dB: <1Hz..24.0kHz
  • Frequency response fs=44.1kHz : -0.05dB: 5.0Hz..20.1kHz; -3dB: <1Hz..22.0kHz
  • Passband ripple: 96kHz : <0.015dB; 48kHz: <0.015dB
  • Inter-channel phase difference : <0.03 degrees
  • Channel separation: 1kHz : >125dB, 20Hz..20kHz: >117dB
  • Group delay (input to AES3 output) : 20/fs
