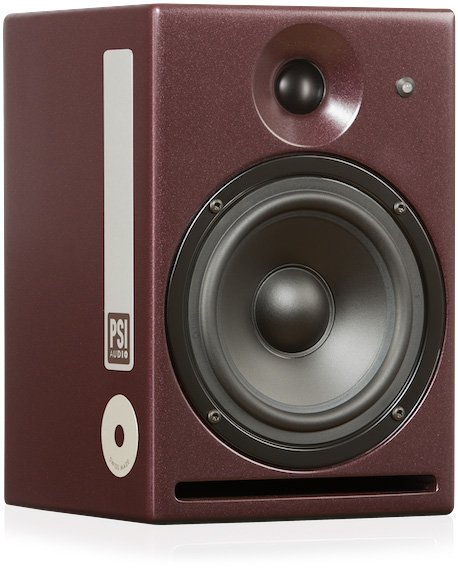

Housed in an extremely compact cabinet, the A14-M Studio is designed to implement highest possible SPL and broad bandwidth. Designed for studio applications. Red color.
The A14-M Studio full range speaker is the smallest member of the PSI Audio A-Series professional studio monitor range. Housed in an extremely compact cabinet, the A14-M Studio is designed to implement highest possible SPL and broad bandwidth. The A14-M Studio is ideal for studio application where the ultimate in precision and portability is required. Packed into its compact dimensions, is all the technology of its larger brothers.
The powerful bi-amplified output features the unique "AOI" output stages, while the active crossover, with integrated "CPR", delivers unprecedented impulse behavior with excellent stereo imaging. The crossover is also Studio optimized for maximum phase coherence, projecting a wide horizontal and vertical ideal listening area. Designed to work in harmony with the full range of A series monitors the A14-M Studio also makes ideal rear speakers in a surround sound setup, or can be developed in to a more powerful system by adding the A225-M sub thus protecting your investment.
Also available: A14-M Broadcast. Equipped with protective grill, mounting bracket and front level setting to become a perfectly versatile and portable high end monitor.
Flat frequency response.
Optimised directivity by phase coherency.
Protection circuits with overload indicator.
Real balanced input.
Designed for stereo and multichannel monitoring.
Magnetically shielded for use close to video monitors.
Power RMS: 70 + 30W
Program Power: 100W
Input Impedance: Sym, 10k Ohms
Sensivity for 100 dB @ 1m: 0.775 V
Signal to Noise Ratio: 96 dBA
Continuous Max SPL@1m: 101 dB (single)
Input Overload: 24 Vpp
Program Max SPL@1m: 112 dB (pair)
Response at -6dB: 56 - 22000 Hz
Tolerances: ±2.5 dB (65Hz - 18kHz)
Distortion THD: less than 1.8% (95Hz-15kHz)
Phase tolerances: ±45° (260Hz - 16kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB: 100° x 100° (H x V)
System: 2 Way(s)
Crossover frequency: 3.5 kHz
Woofer's dim. Ext. / Diaphragm: Ø147mm / Ø104mm
Tweeter's dim. Ext. / Diaphragm: Ø70mm / Ø24mm
Connectors: 1 x XLR F / 3P
Signal input: 1=GND, 2=(+), 3=(-)
Dimensions W x H x D mm: 163 x 243 x 170
Gross / Net Weight: 6.2 / 5.5 kg
Voltage: 115/230V (50-60Hz)
Consumption Standby-Quiescent-Max: 1.4 - 6 - 100W
Mean / Max Humidity: less than 75% / less than 90%
