Perfectly suited for surround sound and near-field applications, the A17-M is ideal for studio application where the ultimate in precision is required. Red color.
A classic near-field precision monitor, the A17-M is the ideal entry model to the PSI Audio range. Perfectly suited for surround sound and near-field applications, the A17-M is ideal for studio application where the ultimate in precision is required. Its compact form incorporates the full range of PSI Audio's outstanding technologies.
The powerful bi-amplified output features the unique "AOI" output stages, while the active crossover, with integrated "CPR", delivers unprecedented impulse behavior - with excellent stereo imaging. The crossover is also optimized for maximum phase coherence, projecting a wide horizontal and vertical ideal listening area.
Designed to work in harmony with the full range of A series monitors the A17-M also makes ideal rear speakers in a surround sound setup, or can be developed in to a more powerful system by adding the A225-M sub - thus protecting your investment.
Very broad bandwidth in a compact cabinet.
Flat frequency response.
Optimised directivity by phase coherency.
Optional metal bracket.
Protection circuits with overload indicator.
Real balanced input.
Designed for stereo and multichannel monitoring.
Magnetically shielded for use close to video monitors.
Power RMS: 80 + 40W
Program Power: 120W
Input Impedance: Sym, 10k Ohms
Sensivity for 100 dB @ 1m: 0.775 V
Signal to Noise Ratio: 96 dBA
Continuous Max SPL@1m: 103 dB (single)
Input Overload: 24 Vpp
Program Max SPL@1m: 114 dB (pair)
Response at -6dB: 43 - 23000 Hz
Tolerances: ±2.5 dB (50Hz - 20kHz)
Distortion THD: less than 1.5% (100Hz-12kHz)
Phase tolerances: ±45° (180Hz - 20kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB: 90° x 90° (H x V)
System: 2 Way(s)
Crossover frequency: 3.0 kHz
Woofer's dim. Ext. / Diaphragm: Ø175 mm / Ø130 mm
Tweeter's dim. Ext. / Diaphragm: Ø100 mm / Ø25 mm

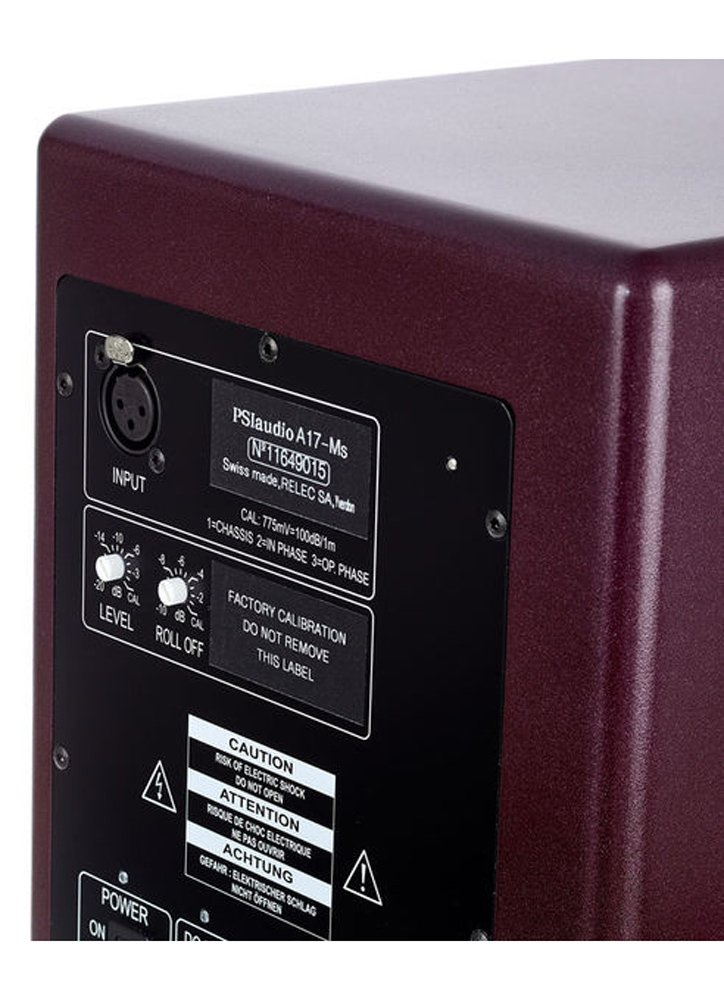

Connectors: 1 x XLR F / 3P
Signal input: 1=GND, 2=(+), 3=(-)
Dimensions W x H x D mm: 200 x 320 x 230
Gross / Net Weight: 9.5 / 8.4 kg
Voltage: 115/230V (50-60Hz)
Consumption Standby-Quiescent-Max: 1.4 - 6 - 100W
Mean / Max Humidity: less than 75% / less than 90%
