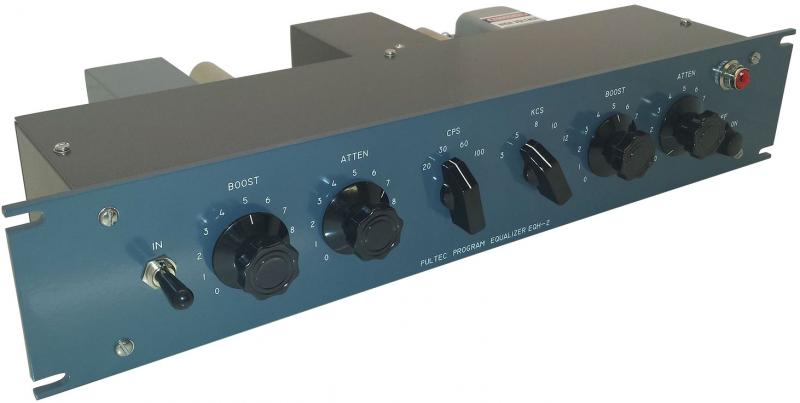

The EQH-2 was originally introduced in 1956, as a compact option to the 3U model EQP-1. The low-frequency boost/atten curves are identical to those of the EQP-1A and the high-frequency peak boost frequency centers are comparable to those of the EQP-1A. The EQH-2 has fixed bandwidth for the high-frequency peak boost and a fixed high-frequency attenuation frequency of 10 kHz. The line amp is the same minimalist class A output stage as used in the MEQ-5. Many engineers, among them well-known L.A./Nashville engineer/producer Dave Cobb, believe it provides a more transparent sound than the EQP-1A/EQP-1A3.

20, 30, 60, 100 CPS shelf boost

0 - 13.5 dB20, 30, 60, 100 CPS shelf attenuate

0 - 17.5 dB3, 5, 8, 10, 12 KCS peak boost

0 - 18 dB; 10 KCS shelf attenuate, 0 - 16 dB

Input Transformer: 600 Ohms

Output Transformer: 600 Ohms

Noise: Below -75 dBm

Distortion: 0.15% at +10 dBm into 600 Ohms

Amplifier: Flat, 20 CPS to 20 KCS, +0 / -1 dB, ref 1 KCS

Tubes: 1 ea 12AX7, 6AQ5, 6X4
