The CP8 is a compact powered Loudspeaker, 8-Inch, 1000W combining high performance, superior quality and lasting reliability
High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.
The 1000 Watt (peak) power module delivers ample burst and continuous power for the loudspeaker's matching transducers. Convection cooling provides heat dissipation, even in extreme climates, while contributing no additional background noise. Carefully tailored, subtle and sophisticated dynamics processing is used to protect the drivers from damage and the performance from distortion. The result is a highly accurate and musical sound that maintains full signal integrity, even when pushed to high SPL.
CP produces a big sound from a small package. Ultra-compact and remarkably light weight, CP is easy to load, carry, lift and deploy in a wide range of portable and installed applications.
CP presents a compact, unobtrusive and stylish appearance that looks great in a wide range of applications. Both models can be utilized as either main PA (with included pole mount), floor monitor or installed via optional quick-connect yoke mount.
CP provides one-touch access to preset contours for the most commonly-used applications including Default (Full-Range), Default with External Subwoofer, Dance, Dance with External Subwoofer, Floor Monitor and Speech.
Compact and powerful performance
1000 Watt peak power Class-D amplifier module
Easily selected contours for commonly-used applications
Advanced DSP with Intrinsic Correction for superior sound quality and speaker protection
Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
Light weight and highly portable
Professional appearance looks great in any application
Use for main PA, stage monitor, or instrument amplifier
35 mm pole socket
Optional yoke, tote, and outdoor cover accessories
Complete EASE and CAD information available online

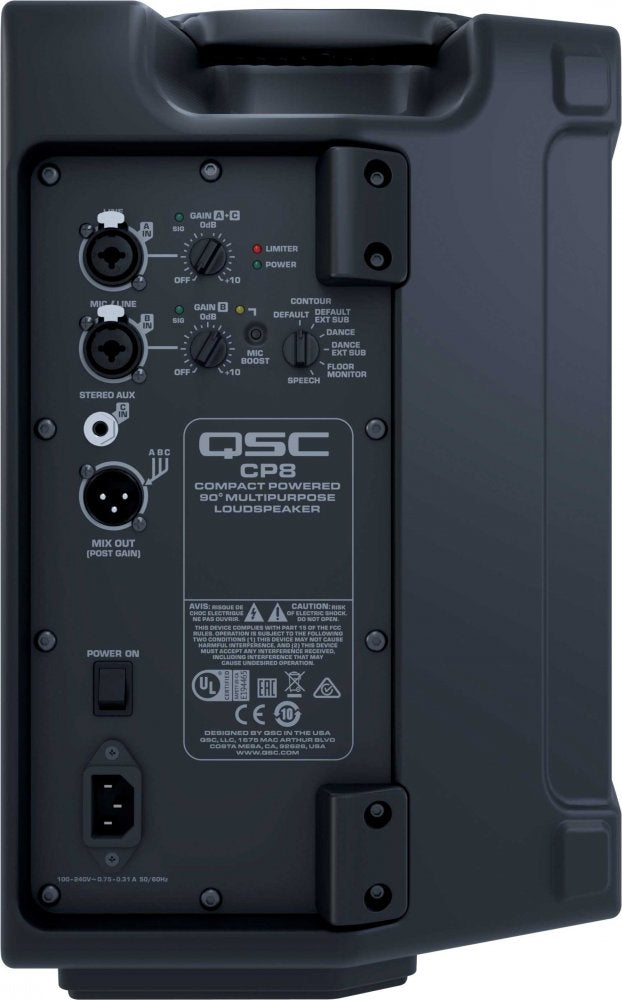

LF Transducer: 8 in (203 mm), cone HF Transducer: 1.4 in (35.6 mm) compression driver Frequency Response (-6 dB): 56 - 20 kHz Frequency Range (-10 dB): 53 - 20 kHz Nominal Coverage Angle: 90° Axisymetric Maximum Rated SPL1: 124 dB Amplifier: Class D Peak: 800 W (LF), 200 W (HF) Controls:
Power 2 x Gain
Mic Boost Push Switch
6-way Contour Selection Switch Indicators:
2 x Input Signal LED
Input B MIC selected LED
Limiter active LED Connectors:
2 x locking XLR/F ¼" combo (Line Input and Mic/Line input)
1 x 3.5 mm TRS (Stereo Input)
1 x XLR/M (Mix Output)
1 x IEC power connector AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz AC Power Consumption 1/8th Power: 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A Enclosure Material: Polypropylene Attachment Points: M10 threaded insert Color: Black (RAL 9011) Grille: 18 Gauge powder-coated steel Dimensions (HxWxD):
16.2 x 10.7 x 10.1 in
411 x 273 x 256 mm Net Weight: 21.0 lbs (9.5 kg) Shipping Weight: 25.5 lbs (11.4 kg) Regulatory: EMC, UL, CB Optional Accessories: CP8 Tote, CP8 Outdoor Cover, CP8 Yoke
