TouchMix Compact Digital Mixers are designed for Musicians, Production professional and live performance venues for live. 16 Mic Preamps

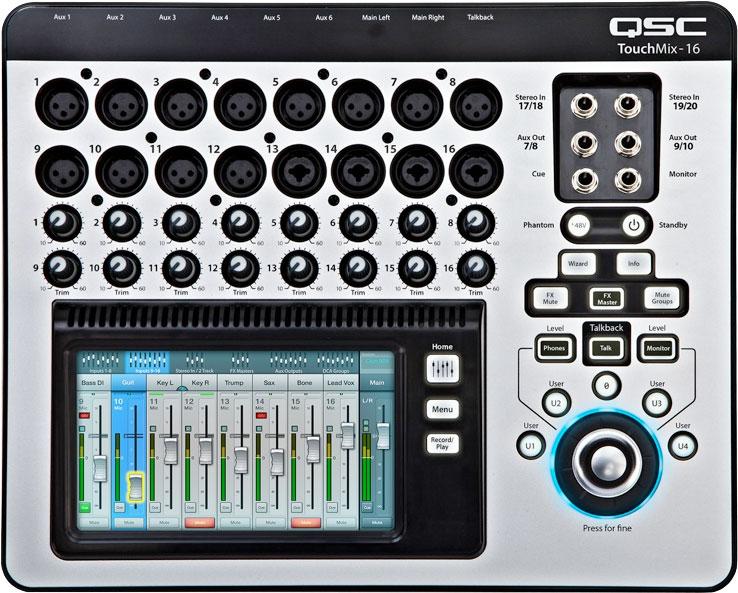

QSC TouchMix compact digital mixers are designed for musicians, production professionals and live performance venues that need the power and capability of a large "concert" mixing console in a compact, affordable and easy to use form. TouchMix-8 and TouchMix-16 mixers have the functionality to satisfy demanding professionals combined with a range of features and functions that help the less experienced user achieve quality results.
The QSC TouchMix Series represents a breakthrough in innovation and digital mixer design - the result of a remarkable collaboration between QSC and industry icons Greg Mackie and Peter Watts (M&W Pro Audio Ltd.) TouchMix not only resets the bar for performance and value, but also redefines the user experience for both professionals and novices alike.
20 full-function inputs: 12 mic, four mic/line (XLR/TRS Combo), two stereo line (TRS), talkback (XLR), USB 2-trackOutputs: six aux (XLR), two stereo (TRS), main R/L (XLR), cue (TRS), monitor (TRS)TRS aux outs drive wired in-ear monitors (IEM) directly.Four-band full parametric EQ, variable high-pass and low-pass filters on all input channels.Gate and compressor on all input channels.Four professional quality stereo DSP effects plus a pitch corrector.1/3-octave graphic equalization, limiters, delay and notch filters on main and aux. outputs.Eight DCA and eight mute groups.Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.Wizards, info and preset libraries assist the user with channel setup, effects selection and more.Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair.Remote control via mobile devices. Wi-Fi interface included.

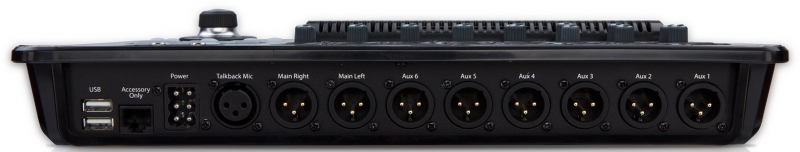

Inputs: 12 mic, four mic/line (XLR/TRS Combo), two stereo line (TRS), talkback (XLR), USB 2-trackOutputs: Six aux (XLR), two stereo (TRS), main R/L (XLR), cue (TRS), monitor (TRS)Dimensions: 3.5" x 14.2" x 11.7" (89 mm x 360 mm x 297 mm)Weight: 5.9 lb. (2.98 kg)
