Quagliardi Pro Audio QUAG-DIA
MPN #QUAG-DIA
$275.00
Économisez 20.7%, Prix suggéré $347.00
Stereo passive DI with custom QUAGLIARDI transformers, -20 dB pads, ground lift, rugged aluminum build, and balanced XLR outputs for stage or studio reliability.

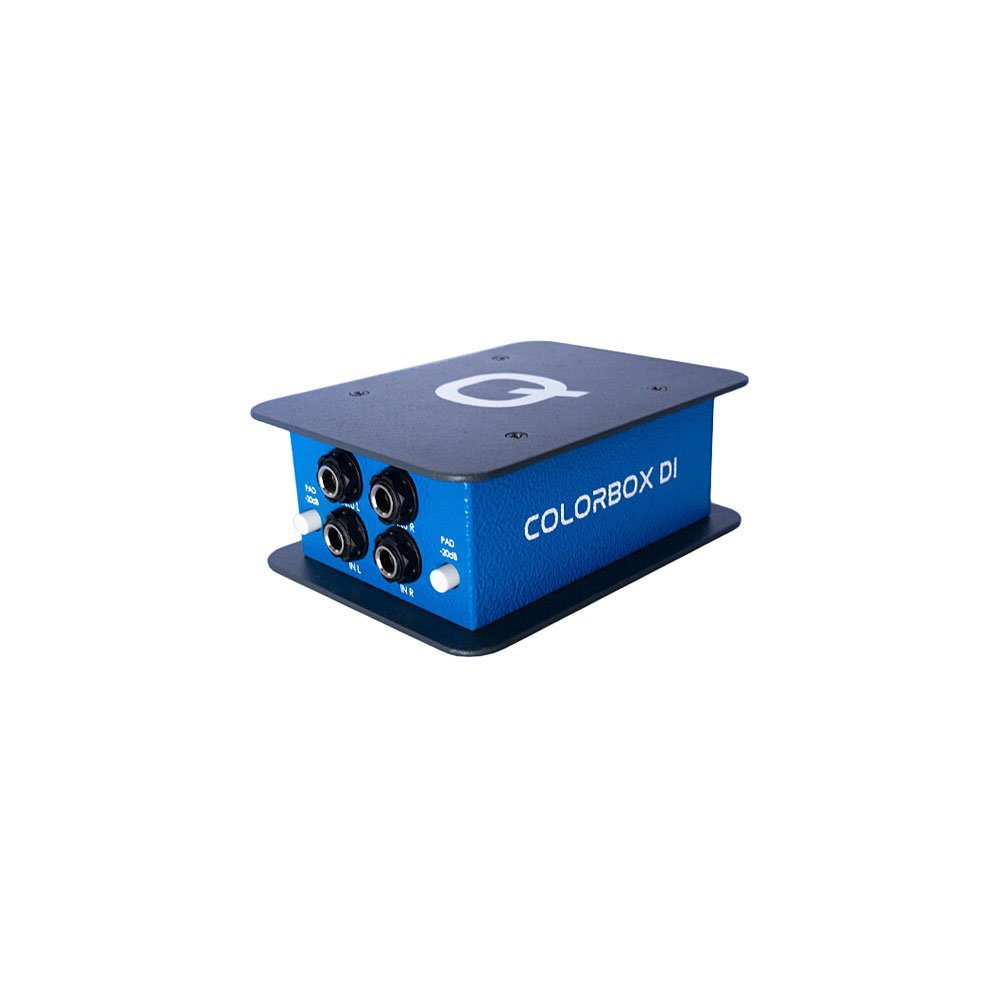

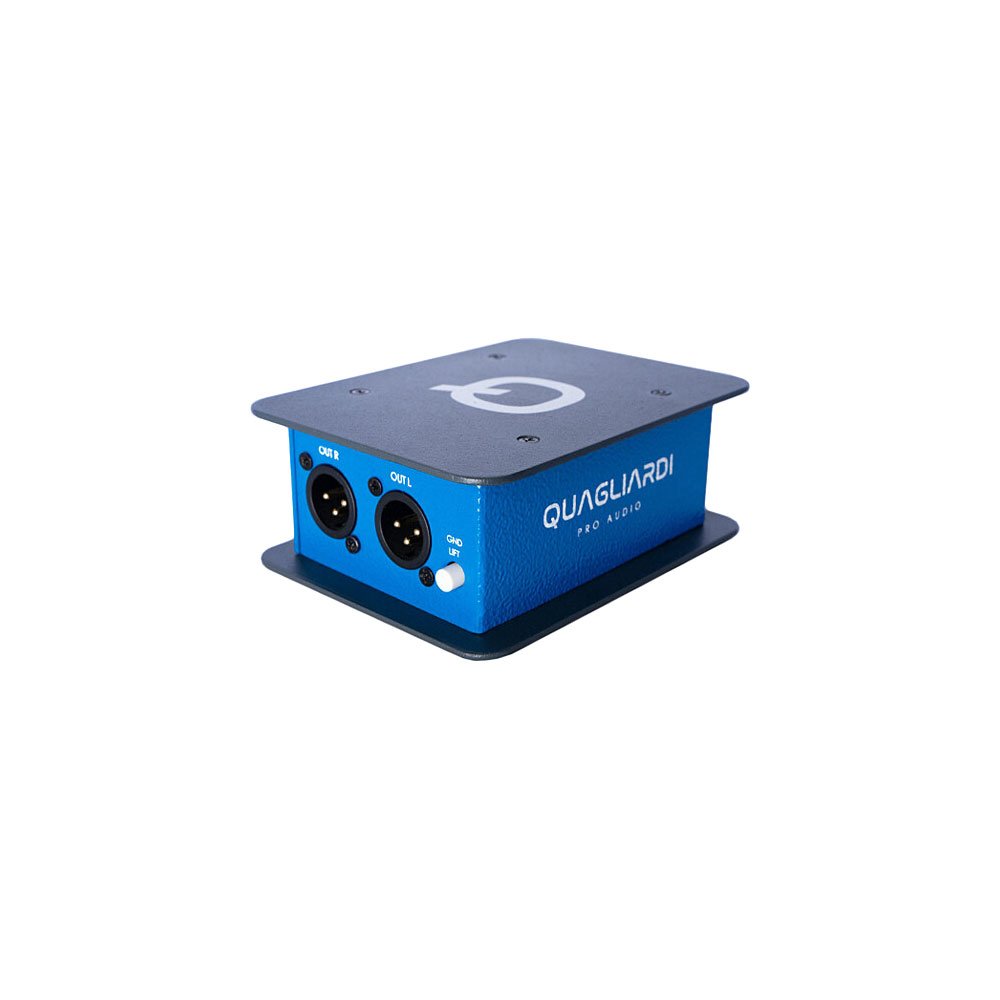

The COLORBOX from Quagliardi Pro Audio is a rugged, high-quality stereo passive DI box designed for seamless integration of unbalanced instrument signals into professional mixers and PA systems. Ideal for keyboards, drum machines, synths, and other stereo sources, the COLORBOX ensures pristine signal integrity while adding the smooth, musical character of custom Quagliardi permalloy-core transformers.
With its passive design, the COLORBOX requires no external power, making it both reliable and convenient for stage and studio use. Each channel includes an individual -20 dB pad, allowing you to accommodate hot input signals without distortion. A ground lift switch helps eliminate hum and buzz caused by ground loops, ensuring a clean, professional output every time.
The DI features dual 1/4" TS inputs with thru connections for flexible routing, along with balanced XLR outputs for direct connection to mixing consoles or recording interfaces. Its lightweight yet durable aluminum chassis is built to withstand the demands of touring, while recessed switches and connectors protect against accidental damage. Whether on stage or in the studio, the COLORBOX Stereo Passive DI Box delivers transparent performance with a touch of analog warmth, making it an essential tool for any serious musician or engineer.
Caractéristiques
Stereo passive DI box for connecting unbalanced stereo instruments to mixers or PA systemsCustom QUAGLIARDI transformers with permalloy cores for smooth, vintage-style warmthPassive design " no power requiredTwo independent channels with individual -20 dB padsGround lift switch eliminates ground loop humConnectivity: 2 - 1/4" TS unbalanced inputs, 2 - 1/4" TS thru outputs, 2 - XLR balanced outputsRugged aluminum enclosure protects connectors and switches for stage and studio reliabilityLightweight and portable (approx. 1.4 lb)
Spécifications
General Specifications
Type: Standard DI (Direct Injection) BoxChannels: 2 (Stereo)Design: Passive (no power required)Circuitry: Solid-stateTransformers: Custom QUAGLIARDI PRO AUDIO transformers with permalloy cores
Controls & Features
Input Pad: -20 dB switchable pad (per channel)Ground Lift Switch: Yes (helps eliminate ground loops)Polarity Reverse: NoEQ/Tone Shaping: No low-cut or high-pass filter
Connectivity
Inputs: 2 x 1/4" TS unbalanced instrument inputsThru Outputs: 2 x 1/4" TS unbalanced instrument outputsBalanced Outputs: 2 x XLR 3-pin male outputs
Power
Power Requirements: None (fully passive design)
Construction
Enclosure: Lightweight, durable aluminum chassisProtection: Recessed connectors and switches for stage reliability
Dimensions & Weight
Package Weight: 1.405 lbBox Dimensions: 9.5 x 9.2 x 2.7 inches
