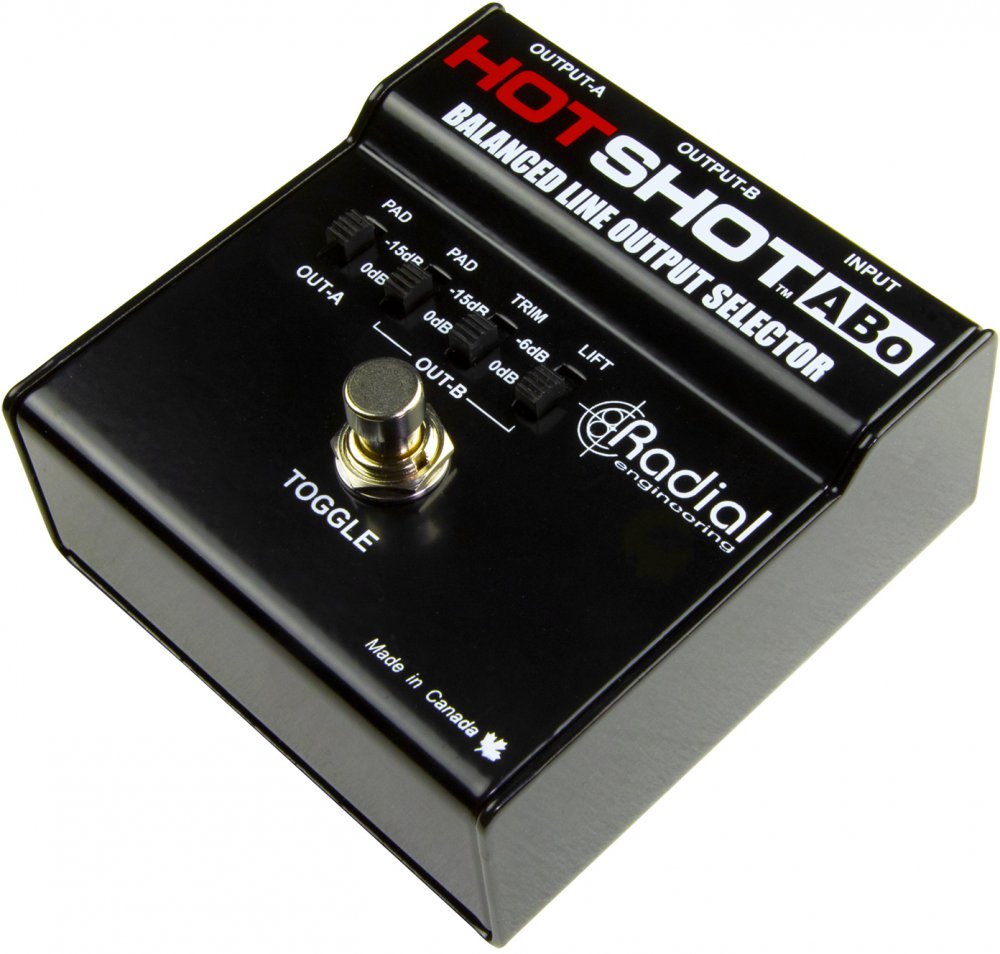

The Radial HotShot ABo is an XLR balanced output selector that can instantly toggle one input between two output destinations via a latching footswitch.
The HotShot ABo is a balanced output selector switch that lets you take an audio source and redirect it to two destinations by depressing a latching footswitch. It features separate -15dB pads on each output to better balance the signal levels. And since it is completely passive, powering is not required to make it work.
This makes the HotShot ABo ideal for a variety of applications including driving two channels on a mixing console for dry and wet effects routing, to divert a mic from the PA system to the monitors or intercom, for temporarily muting the signal such as when coughing or for talkback mic control to the talent from the producer's desk.
Ultra compact and extremely rugged, the HotShot ABo is made in Canada with 14 gauge steel and durable powder coat finish to handle the rigours of professional touring. Heavy duty latching footswitch and glass-nylon connectors are designed to provide years of trouble-free performance and are backed-up with a 3-year transfe..
Easy use, the HotShot ABo delivers instant footswitch control to divert the audio signal to two destinations for greater efficiency on stage.
On-stage line output signal AB redirector
Toggle switch for one-push operation
Pads allow using devices with different signal levels
Ground lift to eliminate buzz caused by ground loops
Heavy-duty construction, switches and components
Circuit Type : Passive, true-bypass
Frequency response : 20Hz ~ 20kHz
Switch type : Latching
Dynamic range : Unlimited
Ground lift : Pin-1 on input B
Pad : -15dB on both inputs
Toggle : Selects between input A or B
Construction : 14 gauge steel
Finish : Durable powder coat
Size : 3.6"w x 3.9"d x 2"h (92 x 99 x 51mm)
Weight : 1.25 lb (0.56 kg)
Conditions : For indoor use at temperatures between +5° c and +40° c
