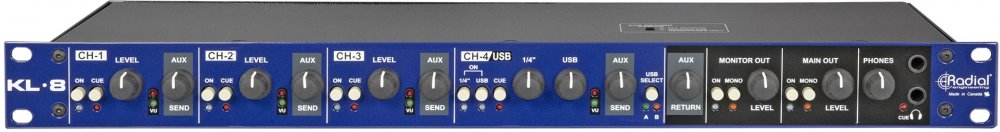

The KL-8 is a rackmount keyboard mixing station designed to provide complete control over a professional keyboard setup, both on-stage and in the recording studio.
The KL-8 allows you to mix up to four keyboards send a stereo or mono feed over XLRs to the PA system. 1/4" TRS insert connections allow you to connect a stereo volume pedal and control the overall output, and XLR monitor outputs and headphones are provided for monitoring your signal on stage.
Integrate a soft-synth on stage
The KL-8 can take the MIDI output from a controller to play a soft-synth on your laptop. High quality digital-to-analog converters give you great sound quality on local monitors and at the PA system.
Combine analog and digital on stage
Mix four keyboards together with the output of a laptop soft-synth, making the KL-8 the center of your performance setup. Stereo Auxiliary send and return connections allow you to incorporate rackmount effects or pedals into the signal chain.
Put yourself in control of the mix

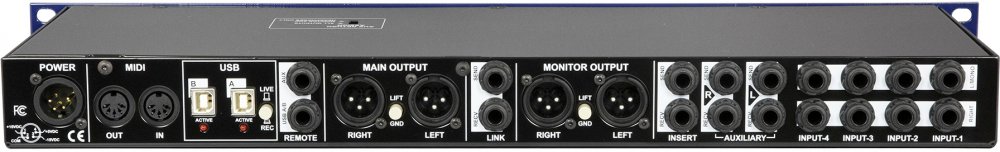

The KL-8 is a powerful mixing station created with keyboard pros in mind, with a number of features designed specifically to streamline and enhance any keyboard setup. You can connect up to four keyboards in mono or stereo, with level controls, aux sends, and LED indicators for each. A stereo aux send/receive is available to feed rackmount reverbs and delays and effects pedals, or it can be used as an additional input for a fifth keyboard. MIDI and USB connections make it easy to control a laptop soft-synth, utilizing high quality 24bit/192kHz digital audio converters. The KL-8 also features multiple output options, with transformer-isolated XLR main outputs to feed the PA, monitor outputs for a set of speakers on stage, and dual headphone outputs for local monitoring and testing.
Redundant USB inputs
When you can't afford to have a break in the performance due to laptop failure, the KL-8 allows you to set up redundant laptop systems and seamlessly transition from one to another. A secondary USB input on the KL-8 allows you to keep your backup laptop at the ready - when failure occurs simply hit the USB select switch on the front panel or use the optional JR-1L remote footswitch to instantly switch to the backup system.
Silent cueing and monitoring via headphones
A built in headphone amp and dual 1/4" TRS outputs give you the option to practice and record silently, or cue up individual inputs on stage without feeding signal out to the audience over the PA system. Each input channel on the KL-8 is accompanied by a Cue switch that will remove that input from the main and monitor outputs and reroute it directly to the headphones, so you can easily adjust patch settings and test playback over USB without affecting the performance.
Ultimate rack-mount keyboard mixer4 mono or stereo analog inputs for keyboards, each with level controlsTwo USB inputs for redundant computer systems... allows the user to have a backup rig or to switch between computers for different soft-synths.MIDI I/O allows the KL-8 to be a MIDI interface via USBStereo XLR Main and Monitor outputs, both transformer isolated.Main and Monitor outputs can be switched to Mono.Stereo AUX send/receive jacks for effects or for additional audio routing (a click track or sub-mix for the keyboard players monitors for example)AUX send level controls on each channel and a global AUX return level control.Remote foot switch inputs for both USB select and AUX.Recording mode allows for use as a recording interface in the studio.CUE switch on each input allows player to route keyboards to monitors or headphones... set up sounds without playing through the PA.Built-in headphone amplifier for monitoring or for silent practice.Multiple KL-8's can be linked for players with more than 4 keyboards.Locking XLR power input and inline PSU with IEC connector.
Why the KL-8 over the Keylargo
An additional stereo input.Redundant USB inputs can be critical for players using Mainstage, etc.The ability to route the AUX return to just the monitors/headphones.Transformer isolation on both main and monitor outputs.Linkable for large setups.Built-in headphone amplifier.Rack-mount form factor can be desirable for some users.Switching power supply for international use.
