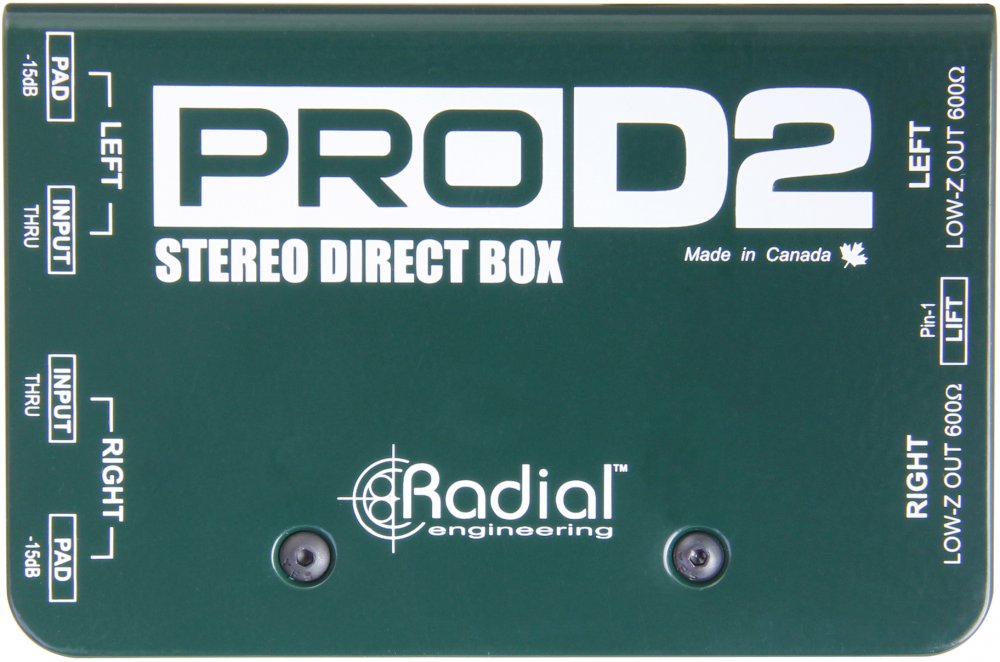

Radial Engineering ProD2

The Radial ProD2 is a high performance stereo direct box designed to easily interface keyboards to the PA and recording system without noise.

The Radial ProD2 is a compact stereo direct box developed specifically to address the needs and challenges of interfacing a stereo keyboard to a professional audio system. This passive DI features two independent channels with separate inputs and thru-puts for the artist's stage amp and two fully isolated outputs for the PA system.

At the heart of the design are two high performance Eclipse ET-DB2 transformers. These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion. Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics. Transformers are particularly adept at eliminating hum and buzz caused by ground loops.

As with all Radial products, the ProD2 is built tough to handle the rigors of professional touring. A 14-gauge steel ultra rigid i-beam skeleton frame eliminates opportunity from outside stress to flex the sensitive PC board and cause premature solder joint failure. The innovative book-end design creates a protective zone around the connectors and switches further increasing lifespan. And a full bottom no-slip pad adds mechanical isolation and electrical insulation to further reduce opportunity for noise.

The Radial ProD2's warm sound, legendary build quality and compact design have made it the most popular stereo direct box made today.
  • Stereo direct box designed for keyboards
  • Smooth, warm sound rounds out digital edge
  • Able to handle huge transients without choking
  • May be rack mounted for touring rigs
  • Specifications
  • Audio circuit type : Passive, transformer based
  • Number of channels : Dual mono
  • Frequency response : 20Hz ~ 18.5KHz (± 0.2dB)
  • Dynamic range : 128dB
  • Maximum input : +18dB @ 20Hz
  • Total harmonic distortion : 0.01% from 20Hz~20kHz @-10dB
  • Phase deviation : 1° @ 100Hz; 8° @ 20Hz
  • Input impedance : 140k Ohms, unbalanced
  • Output impedance : 150 Ohms, balanced

  • Features
  • Transformer : Eclipse ET-DB2, 12:1 ratio
  • Shield : Faraday, MuMETAL® can
  • Input pad : -15dB
  • 180° polarity reverse : Inverts absolute phase

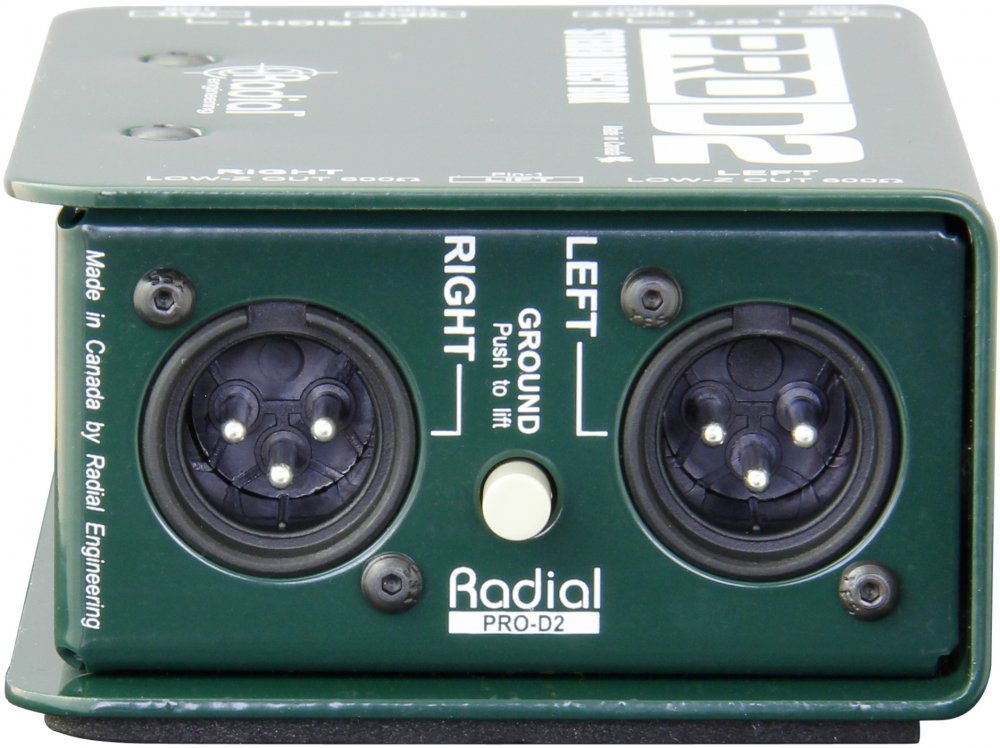

  • Ground lift : Disconnects pin-1 at XLR output
  • XLR configuration : AES standard (pin-2 hot)

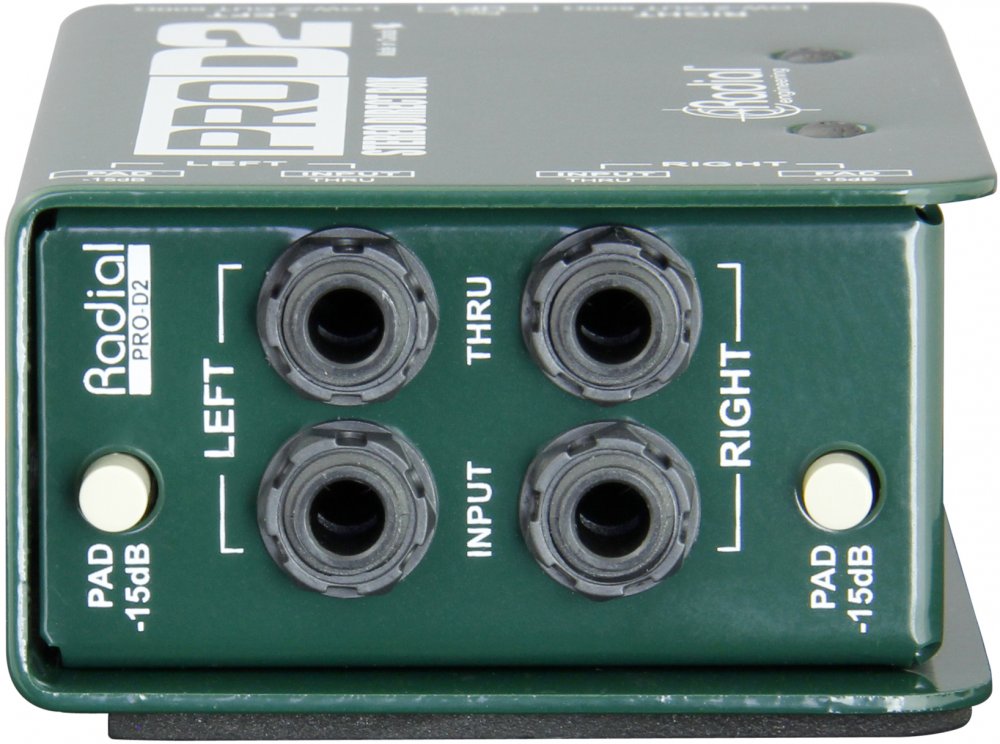

  • Connectors : 1/4" in & thru, XLR-M out

  • General
  • Construction : 14 gauge steel chassis & outer shell
  • Finish : Durable powder coat
  • Size : (W x H x D) 70 x 108 x 44mm (2.75" x 4.25" x 1.75")
  • Weight : .54kg (1.2lbs)
  • Shipping size: W x H x D : 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
  • Shipping weight : 0.61 kg (1.35 lbs)
  • Power : Passive, no power required
  • Conditions : For use in dry locations only between 5°C and 40°C
  • Reviews
    Price *
    Eligible for free shipping in Canada. Learn more
    Additional information
    For more information about the ProD2, please visit the website of Radial Engineering
