UPC/EAN #676101035847     MPN #R800 1100

$149.99

Save 16.7%, MSRP $180.00
Free shipping in Canada for orders over $200

Passive DI for high output acoustic, guitar bass & keyboards

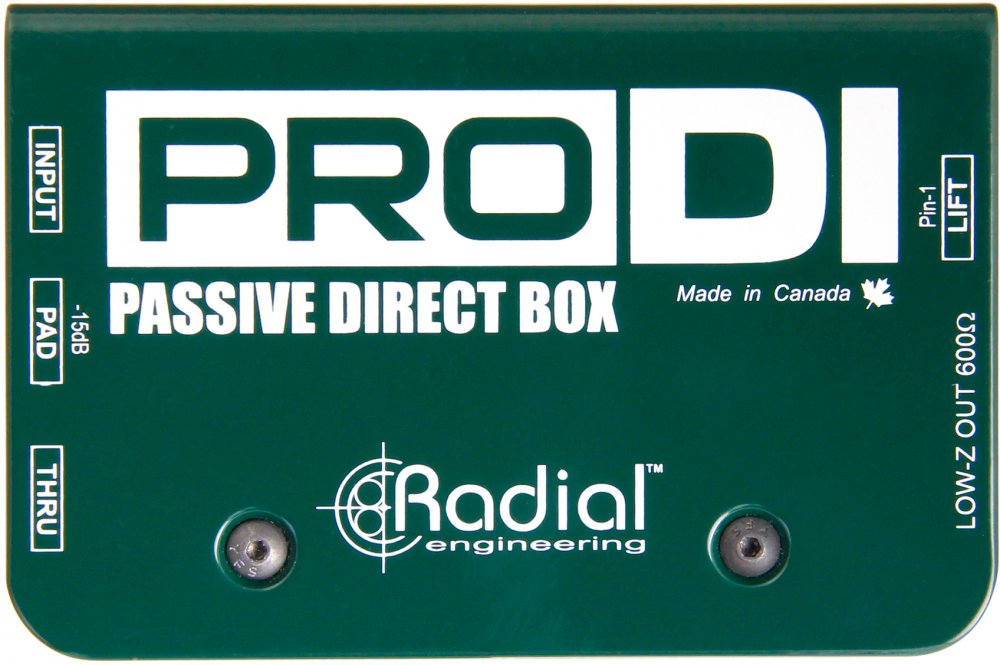

The Radial ProDI is a passive direct box that combines exceptional audio performance with solid dependable construction, making it the ideal general duty direct box for stage and studio.

The heart of the ProDI is a custom wound Radial transformer. It features an exceptionally high 140k input impedance to reduce loading while enabling the ProDI to handle extreme signal levels at all frequencies without distortion. This is further improved upon with an internal MuMETAL shield to protect against electromagnetic fields that can cause unshielded transformers to distort.

This compact direct box begins with 14-gauge steel I-beam skeleton for added rigidity and Radial's unique book-end design that creates a protective zone around switches and connectors. Glass filled nylon connectors and high cycle switches combine with the mil-spec PCB and internal RF filtering to provide durability and noise-free performance. A full bottom no-slip pad provides both mechanical isolation and electrical insulation to further protect against the rigors of professional touring.

The ProDI is ideally suited for instruments such as bass guitar, active acoustics, keyboards and just about anything else! When you consider all of the features and the affordable price tag, it is no wonder the Radial ProDI has become one of the most popular direct boxes ever made.

The Radial ProDI... Spectacular performance at a price that anyone can afford!
  • Compact passive direct box for stage and studio
  • Able to handle huge transients without distortion
  • Transformer isolation eliminates noisy ground loops
  • Plug and play easy to use feature set - on stage or in the studio
  • Mono (ProDI)
  • Audio circuit type : Passive, transformer based
  • Number of channels : Single channel (mono)
  • Frequency response : 20Hz ~ 18.5KHz (± 0.2dB)
  • Dynamic range : 128dB
  • Maximum input : +18dB @ 20Hz
  • Total harmonic distortion : 0.01% from 20Hz~20kHz @-10dB
  • Phase deviation : 1° @ 100Hz; 8° @ 20Hz
  • Input impedance : 140k Ohms, unbalanced
  • Output impedance : 150 Ohms, balanced

  • Features
  • Transformer : Eclipse ET-DB2, 12:1 ratio
  • Shield : Faraday, MuMETAL can
  • Input pad : -15dB
  • 180° polarity reverse : Inverts absolute phase
  • Ground lift : Disconnects pin-1 at XLR output
  • XLR configuration : AES standard (pin-2 hot)

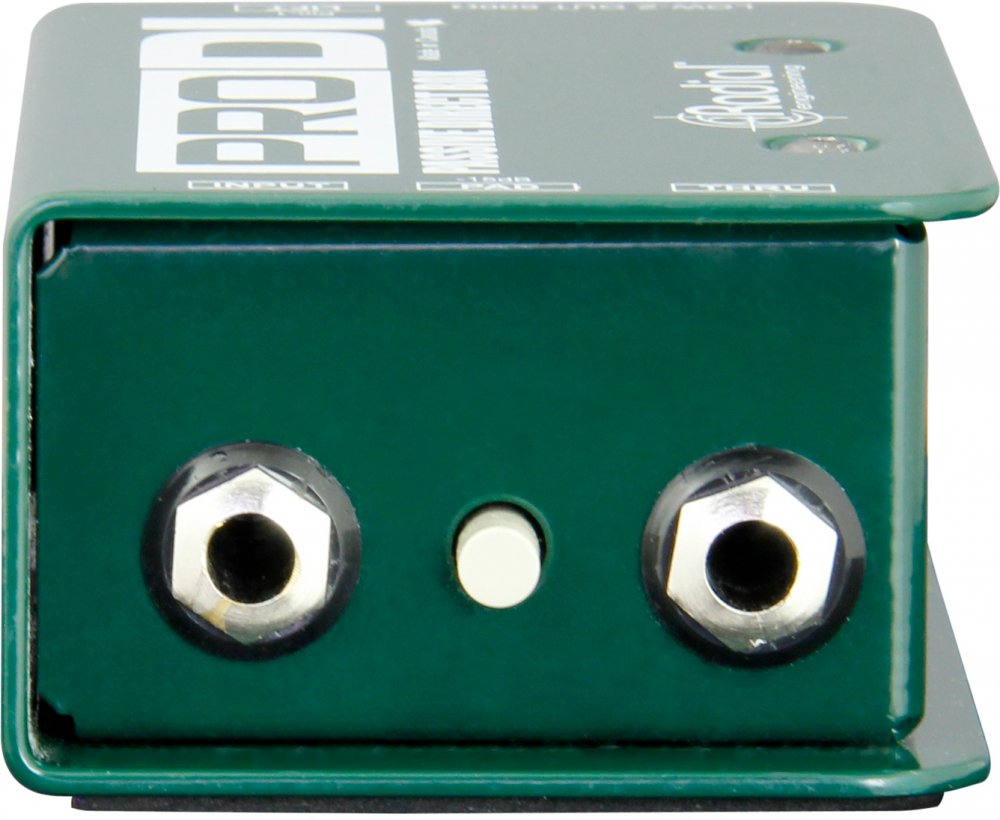

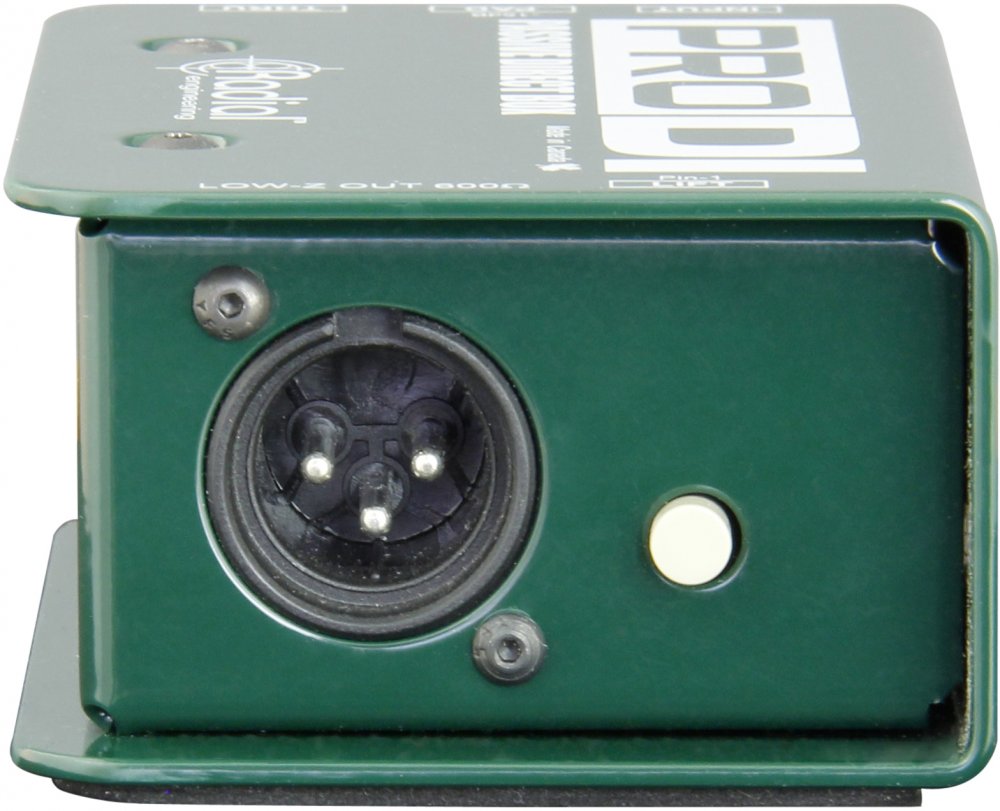

  • Connectors : 1/4" in & thru, XLR-M out

  • General
  • Construction : 14 gauge steel chassis & outer shell
  • Finish : Durable powder coat
  • Size : (W x H x D) 70 x 108 x 44mm (2.75" x 4.25" x 1.75")
  • Weight : .54kg (1.2lbs)
  • Shipping size: W x H x D : 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
  • Shipping weight : 0.61 kg (1.35 lbs)
  • Power : Passive, no power required
  • Conditions : For use in dry locations only between 5°C and 40°C
  • 5.0
    jon
    Montreal
    May 2, 2019
    The basics
    Have 4 of these in my permanent Mic Kit. Never Leave home without them.
    4.0
    Warne
    Toronto
    April 12, 2019
    A must have
    Great DI box. Simple, pure, no nonsense. Every studio should have one.
