The Shotgun is a guitar-signal distribution amplifier that is able to drive up to four amps simultaneously without introducing hum or buzz typically encountered with ground loops.

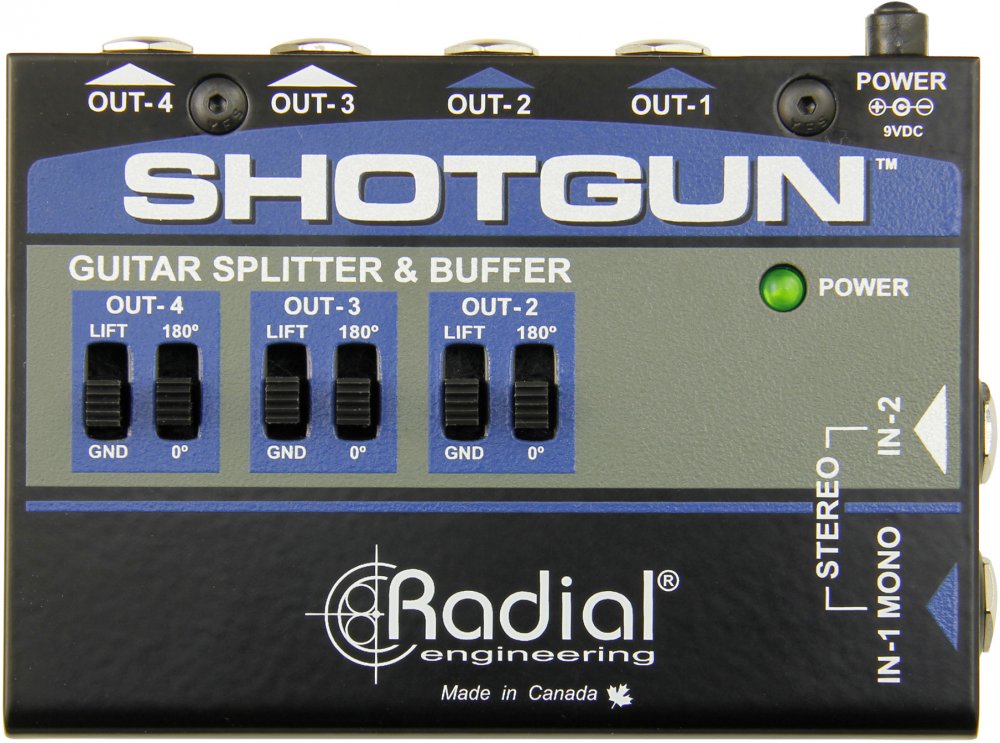

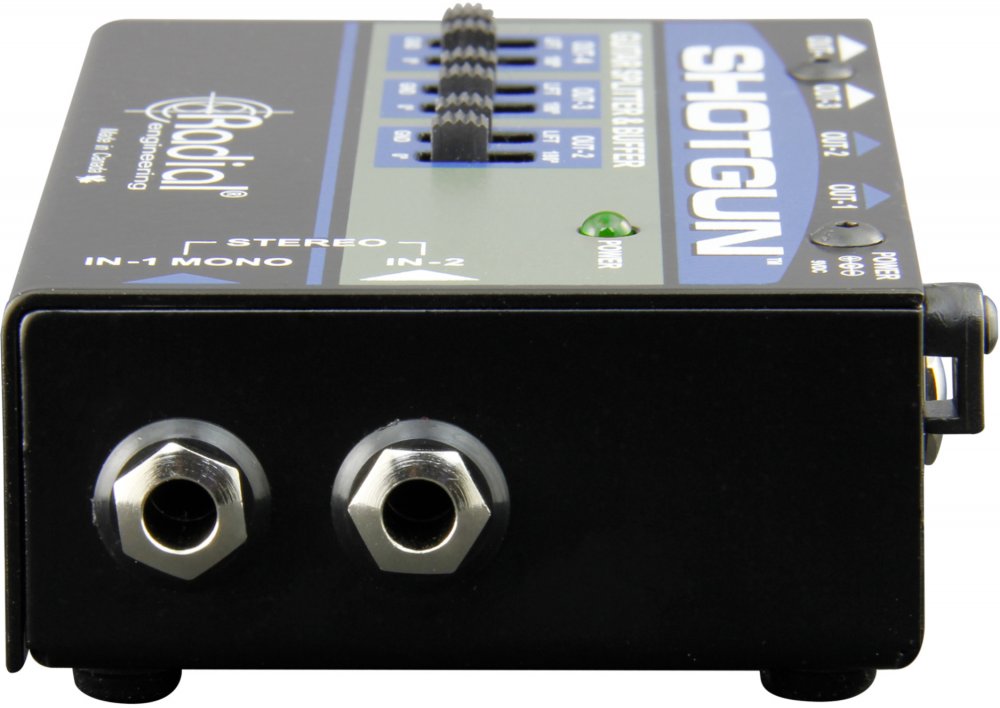

The Shotgun is a compact guitar-level signal buffer designed to drive up to four amplifiers simultaneously and fit nicely on any pedalboard. It features two inputs with a switching jack on input-2 that - when connected - changes the architecture from a 1x4 mono distribution system to a 2x2 stereo setup. The Shotgun is equipped with CLC - Radial's unique Consistent Load Compensation circuit that retains a stable input impedance to ensure the character of the signal remains unchanged, no matter if you use one or two sources.
Inside, a carefully designed low noise buffer circuit with a full-surface ground plane delivers your tone further - up to 15 meters (50') without noise. This is augmented with isolation transformers on outputs 2, 3 and 4 to help eliminate the nasty buzz and hum caused by ground loops when multiple amps are connected together. And like all Radial products, the Shotgun is made tough to handle the rigors of professional touring. Powering is done using standard 9V supply or multi-pedal power brick.
When used in the 1x4 mono-mode, the Shotgun will effortlessly drive multiple amplifiers, direct box outputs and modeling amplifiers at the same time. In 2x2 stereo-mode, you can connect the output from your stereo chorus to the Shotgun and drive two or four amps in stereo, in phase, without noise.
The Shotgun... delivers more boom, less smoke and bullet-proof performance!
Configurable for 1x4 mono or 2x2 stereo
Isolated outputs eliminate ground loops
Buffered outputs drive extra long cables
CLC Consistent Load Compensation circuit
Audio circuit type: Buffered signal distribution with 3 isolated outputs
Frequency response: 20Hz ~ 20kHz
Dynamic range: 92dB
Noise floor: -86dBu
Equivalent input noise: -90dBu
Maximum input: +8dBu
Total harmonic distortion: <0.02% @ -20dB
Inter-modulation distortion: ~0.02%
Input impedance: 220K
Output impedance: 1.8K
Clip level - output +4dBu
Switches: Ground Lift & Phase Invert
Power: 9 VDC - 25mA, center negative
Construction: 14 gauge steel chassis and outer shell
Finish: Durable powder coat
Size: L: 4.5" x W: 3.62" x H: 1.37" (114.3 x 91.95 x 34.80mm)
Weight: 1.1lb (.49kg)
Conditions: For use in dry locations only between 5°C and 40°C
