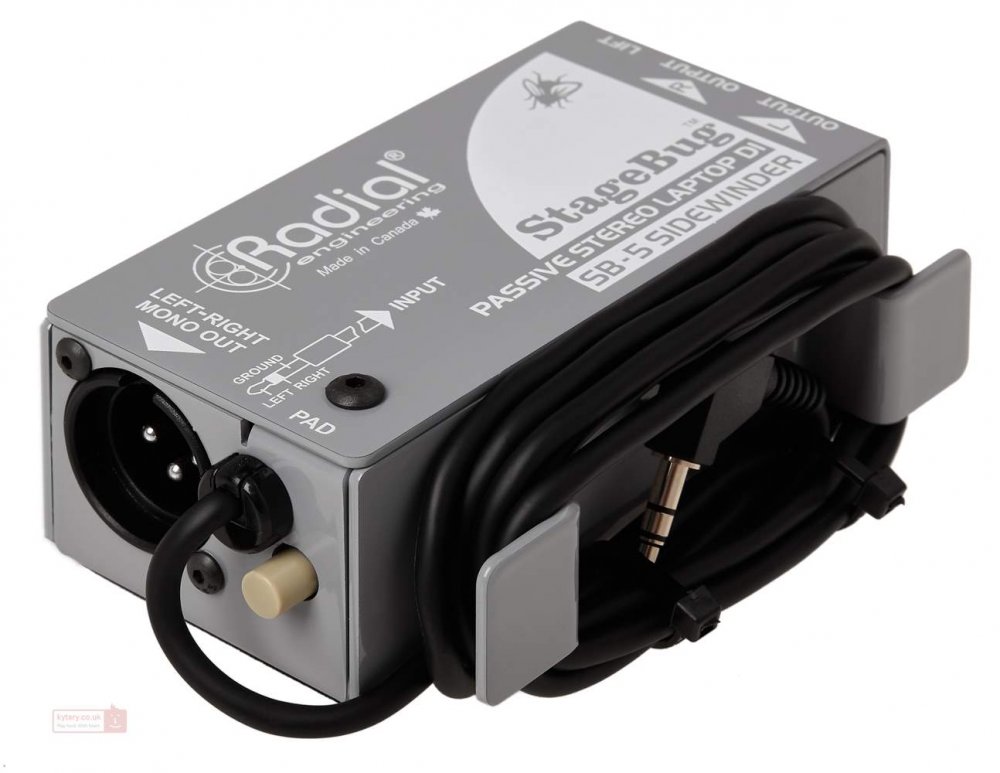

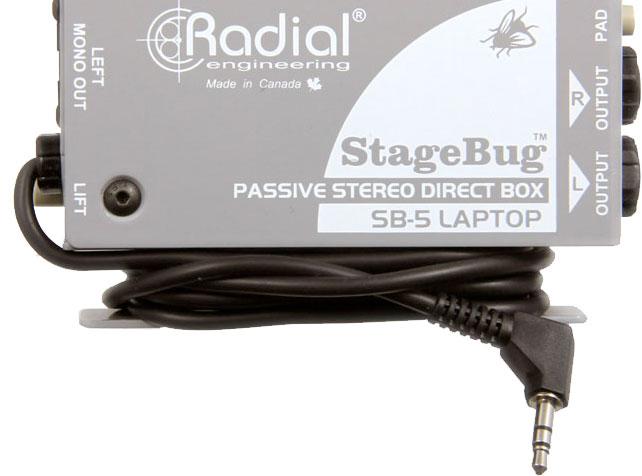

Radial Engineering StageBug SB-5 Sidewinder Laptop DI

The Radial StageBug SB-5 is a compact stereo direct box designed to accommodate laptop computers, tablets and other consumer audio products when amplifying the signal through a PA.

The Radial Stage Bug SB-5 is a compact stereo direct box designed to accommodate laptop computers, tablets and other consumer audio products when amplifying the signal through a PA system.

The passive design begins with an integrated input cable that connects from the headphone out via a flexible 1.5m (5') cable that is terminated with a standard 3.5mm (1/8") stereo connector. The cable is secured via a clamping strain relief and is wrapped using the sidewinder cleat for easy storage. This of course eliminates having to locate a cable making it easier to deploy in fast paced work environments. Inside, the signal is sent to a pair of custom wound transformers where the impedance is lowered and the signal is balanced for long cable runs - upwards to 100 meters (300'). Transformers further benefit by isolating the computer from the PA system to help eliminate hum and buzz caused by ground loops. This is augmented with a ground lift switch to further reduce ground contamination.

A choice of output connectors is available including a stereo set of ¼" TRS jacks for full stereo operation or an XLR out that automatically sums the left-right program material to mono. This can save valuable channels on the PA system and makes setup easier in situations where full stereo reproduction is not required. A -15dB input pad may be engaged to reduce sensitivity and enable extra high output sources to be connected without distortion.

These features combine to make the SB-5 the perfect tool-kit DI for the AV technician, media manager or traveling musician equipped with a computer.
  • Stereo direct box for laptop computer
  • Integral 1.5m cable with sidewinder cleat
  • Transformer isolation eliminates noise
  • Plug & play easy to use - no power required
  • Specifications
  • Audio circuit type : Passive, transformer based
  • Number of channels : Two channels, mono or stereo outputs
  • Frequency response : 20Hz ~ 20KHz (± 1dB)
  • Dynamic range : 100dB
  • Maximum input : +20dB
  • Total harmonic distortion : 0.01% @ 1kHz
  • Phase deviation : 2° @ 100Hz; 5° @ 50Hz
  • Input impedance : 40k Ohms, unbalanced
  • Output impedance : 2.8k Ohms, balanced

  • Features
  • Transformer : Custom design
  • Input pad : -10dB
  • Auto Merge : Sums left & right sources to mono at XLR
  • Ground lift : Disconnects pin-1 at 1/4" TRS outputs
  • XLR configuration : AES standard (pin-2 hot)
  • Input connector : 3.5mm (1/8") integrated 1.5m (5') cable
  • Output connectors : 1/4" TRS stereo / XLR-M mono merge

  • General
  • Construction : 14 gauge steel chassis & outer shell
  • Finish : Durable powder coat
  • Size : (L x W x D) 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)
  • Weight : 0.55 lbs (250 grams)
  • Shipping size : (L x W x D) : 8" x 5" x 3" (203mm x 127mm x 76mm)
  • Shipping weight : 0.8 lbs (365 grams)
  • Power : Passive, no power required
  • Conditions : For use in dry locations only between 5°C and 40°C
