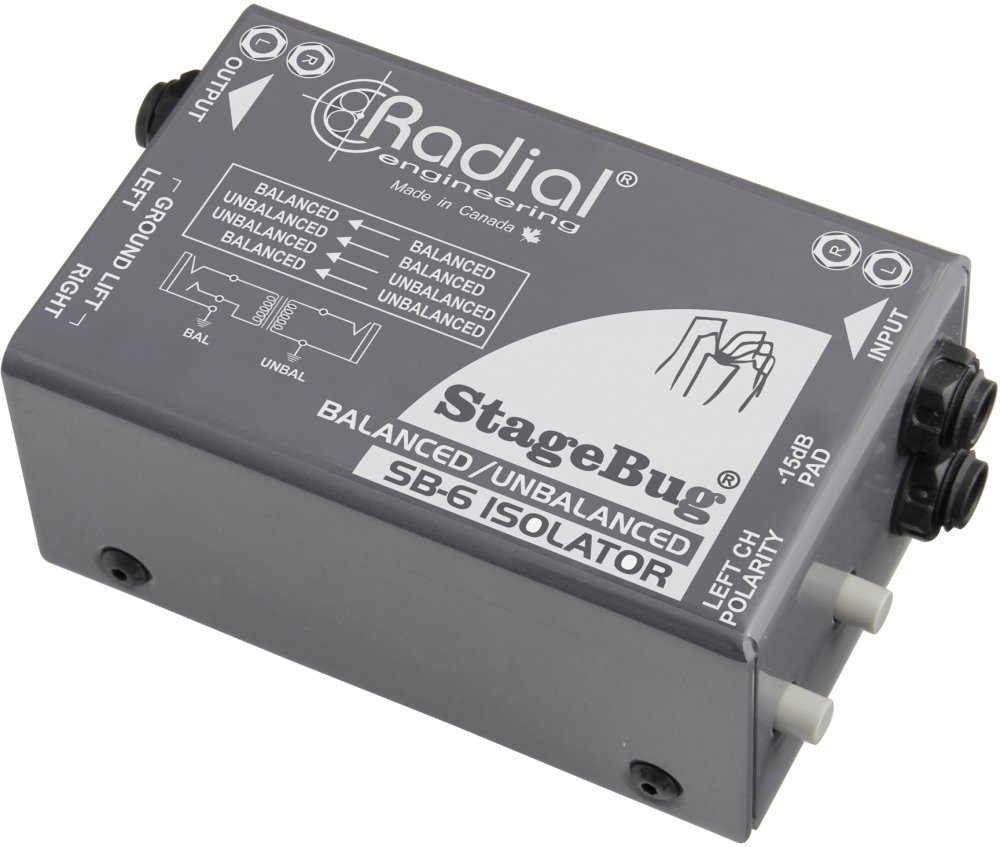

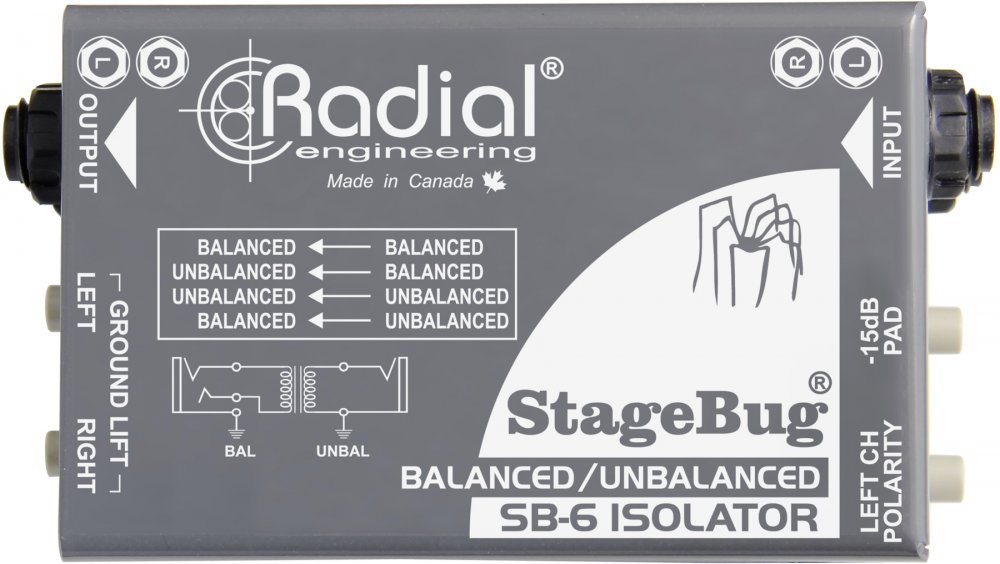

Radial Engineering StageBug SB-6 Stereo Isolator
UPC/EAN #676101040681
MPN #R800 0160
$179.99
Save 16.7%, MSRP $216.00
Compact stereo isolator for bal/unbalanced signals, passive
The Radial Engineering SB-6 is a passive isolator that has been designed to work with both balanced and unbalanced signals.
As detailed in the graphs below, the SB-6 is exceptionally linear throughout the audio range and exhibits nearly flawless phase shift even in the lower registers. Very low distortion from -40dB to +10dB makes the SB-6 ideally suited for instruments, consumer audio devices and pro-balanced audio signals, while the compact size makes it easy to integrate in just about any situation.
Features
Isolator for balanced and unbalanced signalsEliminates hum and buzz caused by ground loopsExceptionally linear from 20Hz to 20kHzAutomatically configures for hi-Z or lo-Z signal chains
Specifications
Audio circuit type: Passive Transformers
Transformer: Eclipse Custom
Frequency response: 20Hz-20KHz +/-1db
Dynamic range: >140db
Gain: -2dB
Total harmonic distortion: <0.0008% @ 1kHz
Phase Deviation: >5° @ 30Hz
Input Impedance: Varies with Load/47K
Output Impedance: 600
Maximum Input: >+25dBu
Features

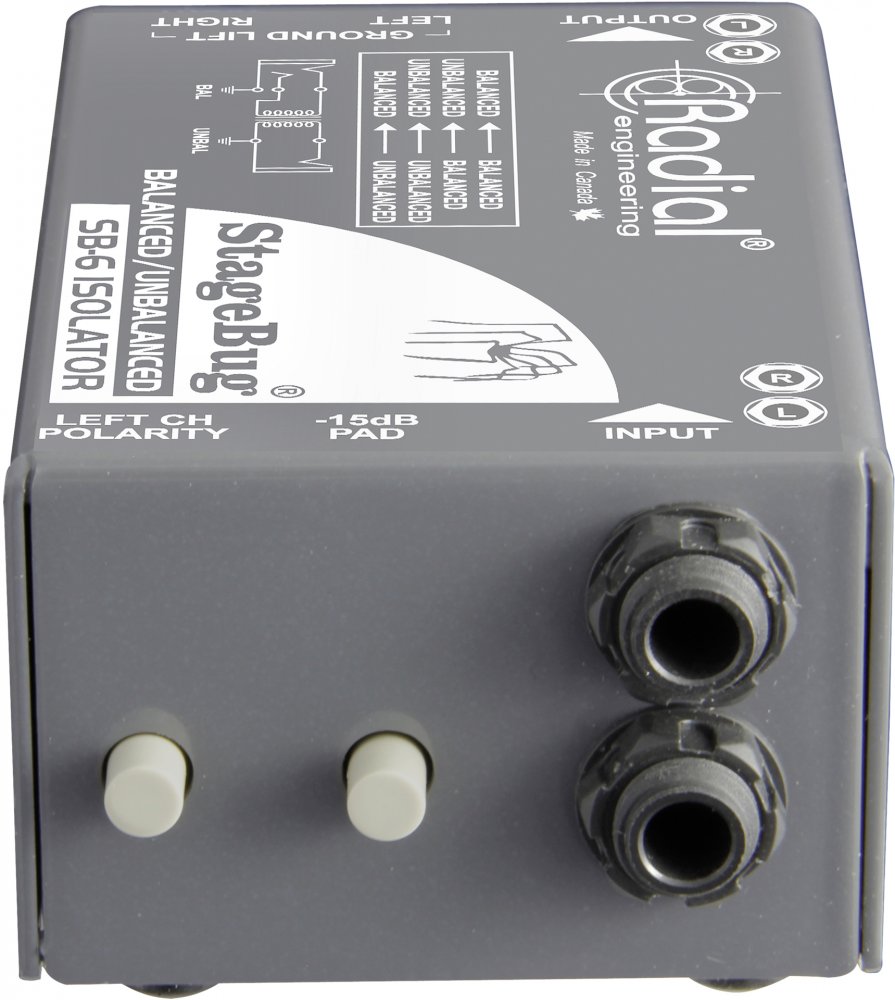

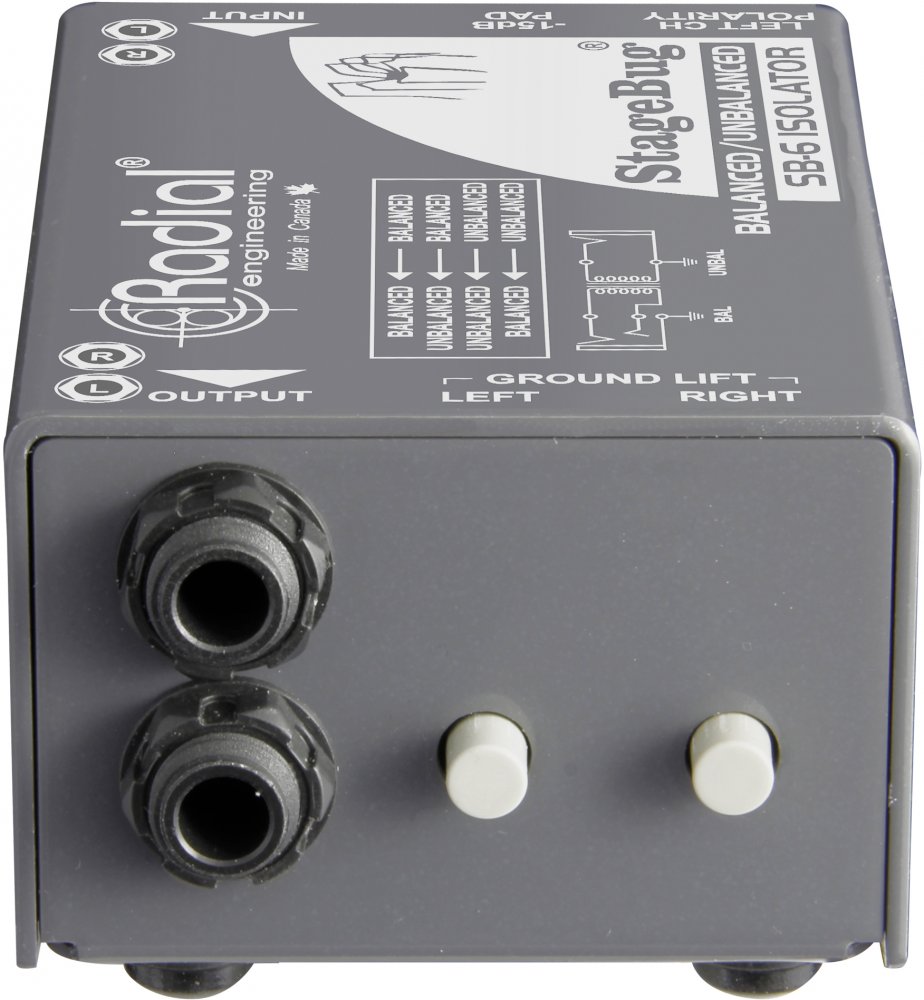

Input pad, 180° polarity reverse, Ground lift
Input Connectors: 1/4" TRS
Output Connectors: 1/4" TRS
General
Construction: 14 gauge steel chassis & outer shell
Size (L x W x D): 3.92" x 2.54" x 1.7" (100mm x 65mm x 43mm)
Weight: 0.9 lbs (408 grams)
Shipping size (L x W x D): 8" x 5" x 3" (203mm x 127mm x 76mm)
Shipping weight: 1.0 lbs (453 grams)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
Write a review about the Radial Engineering StageBug SB-6 Stereo Isolator
![]()
5.0
@autowahband
Ottawa
September 21, 2022
Enfin!
Enfin, on est parvenu à supprimer le hum du set up stéréo du guitariste... C'est la solution si vous jouez à deux amps. Ça coupe le ground loop, ou quelque chose comme ça.
