The Radial Powerhouse is a 10-slot power rack for 500 series modules designed to provide maximum density for professional studio setups.

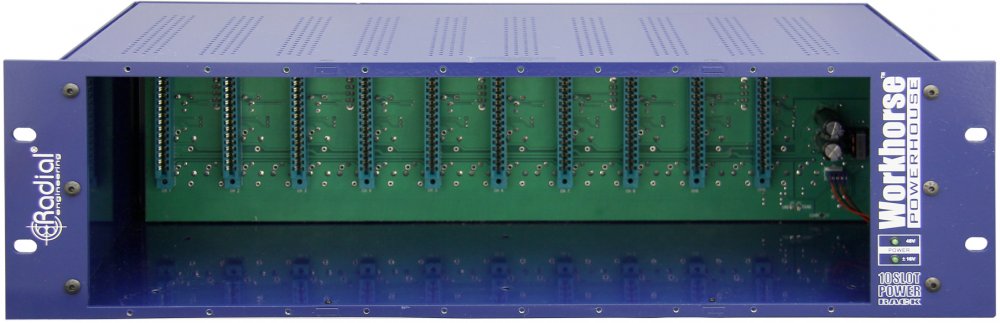

The Powerhouse is a 10 module 500 series power-rack designed to accommodate both older and newer 500 series modules and provide the studio with maximum density in a standard 19" rack frame.

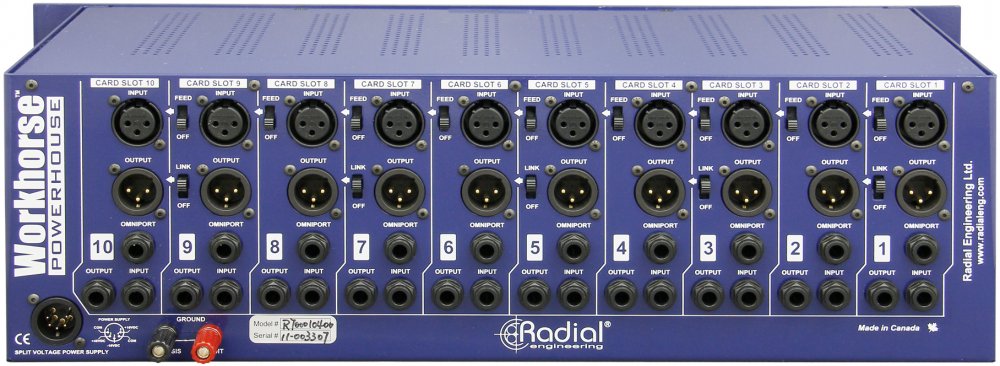

The design begins with heavy 14 gauge steel construction and durable powder coat finish for maximum shielding against noise and greater durability when subjected to road use. An 'easy glide' slider tray makes it painless to align the PCB connector to the 15 pin card edge receptacle when swapping modules. Once connected, the rear panel sports a standard array of XLRs to connect to and from the workstation or mixer. This is augmented with a series of ¼" TRS connectors that enable cross-patching and open the door to the excitement of parallel signal processing. Instead of having to hard patch modules together using a cable, the Powerhouse incorporates an innovative feed switch that instantly connects the signal to the adjacent module. This makes building signal chains quick and eliminates the need for extra cables. And unlike older racks that require soldering when modules are used in stereo, the Powerhouse is equipped with a stereo link function that takes care of the task with a simple slide of a switch.
Unlike older racks that are limited to an average of 130 milliamps per slot, the Powerhouse boasts a 1600 milliamp power supply that lets you share the power as needed. This means it can deliver 300 milliamps to your two tube preamps and still have over 1000 milliamps left in the pool! And just like all Workhorse racks, the Powerhouse is equipped with extra safety features to ensure safe use when mixing and matching various brands.
The Powerhouse delivers more flexibility than all others.
10-slot design for maximum densityIndividual XLR & ¼" TRS i/o on each slotEasy-Glide module alignment trayInnovative feed and link functions
Circuit type : Connection buss from modules to connectorsFormat : 19" rack mount, 3 rack spaceNumber of slots : 10Input connectors : 10 balanced XLR male, 10 ¼" TRSOutput connectors : 10 balanced XLR female, 10 ¼" TRSCompatibility : Adheres to the Whos-Doc and VPR Alliance
Omniport : YesFeed switch : YesStereo link : Yes48V phantom power : Yes on all channels
Available current : 1600 milliampsAverage current : 160 mA per slotCard slot impedance : Module dependentGround connections : Chassis & audio groundXLR pin wiring : AES standard: pin-1 ground, pin-2 (+), pin-3 (-)Power supply : External 100V - 240V AC with 48V PhantomPSU Connection : Locking 5 pin XLR female on cableShipping size (W x H x L) 11.50" x 13.25" x 21.25"Shipping weight : 13.40lbsConditions : For use in dry locations only between 5°C and 40°C
