HomepageRecording HardwarePCI/PCIe › RME HDSPe RayDAT

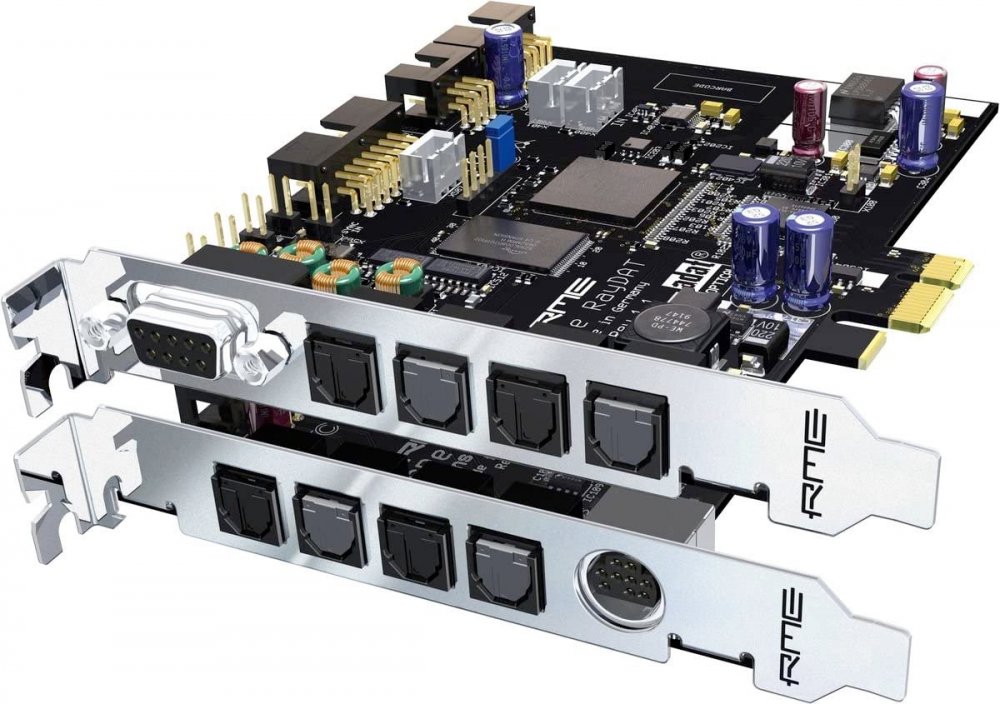

The RME HDSPe RayDAT is a multi-channel, multi-format and multi-task tool in stunning professional quality, the ideal solution from recording up to the final mastering.

For the first time, even SPDIF (phono) and AES/EBU (XLR) are simultaneously operational due to separated hardware and record/playback devices. RayDAT offers no less than 4 x ADAT optical I/O, SPDIF I/O and AES/EBU I/O. That's a whopping 36 channels of inputs and outputs. On top, there are 2 MIDI I/Os and TotalMix, RME's unsurpassed DSP-based real-time mixer/router, with hardware-calculated level metering and complete MIDI remote capability. HDSPe RayDAT also supports the optional TCO for synchronization to timecode (LTC/video).

Internal ADAT inputs and outputs allow to add up to two TDIF ports directly inside the computer via RME's optional expansion boards.

HDSPe RayDAT is the newly developed PCI Express version of the HDSP 9652. A genuine PCI Express core consequently takes full advantage of the new format, achieving significant performance gains in multitrack audio. Thanks to RME's secure flash update technology, firmware improvements, adjustments, and bugfixes can be installed easily at any time.
  • 4 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
  • 1 x SPDIF digital I/O, 192 kHz-capable
  • 1 x AES/EBU digital I/O, 192 kHz-capable
  • 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
  • Up to 36 inputs and 36 outputs can be used simultaneously!
  • DIGICheck, RMEs unique metering- and analysing tool
  • TotalMix: 2592 channel mixer with 42 bit internal resolution
  • Native PCI Express - no PCI to PCI Express bridge used
  • S/MUX poured in hardware: 16 channels 24-bit/96kHz for record and playback on ADAT optical
  • Specifications
    Supported sample frequencies:
    Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz.
    Externally 28 kHz - 200 kHz.

    8 buffer sizes/latencies available:
    0.7 ms, 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms
  • All settings changeable in realtime
  • Automatic and intelligent master/slave clock control
  • Enhanced Mixed mode: All inputs and outputs simultaneously operational
  • Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
  • TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode
  • DIGICheck, RME's ultimate measurement, analysis and test tool
  • Unique status windows for record and playback, showing mode and sample
  • Super low jitter design: < 1 ns in all clock modes
  • Reviews
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the HDSPe RayDAT, please visit the website of RME
