$4499.00 (Special)

Save $1000.00, Regular $5499.00
Free shipping in Canada. Conditions

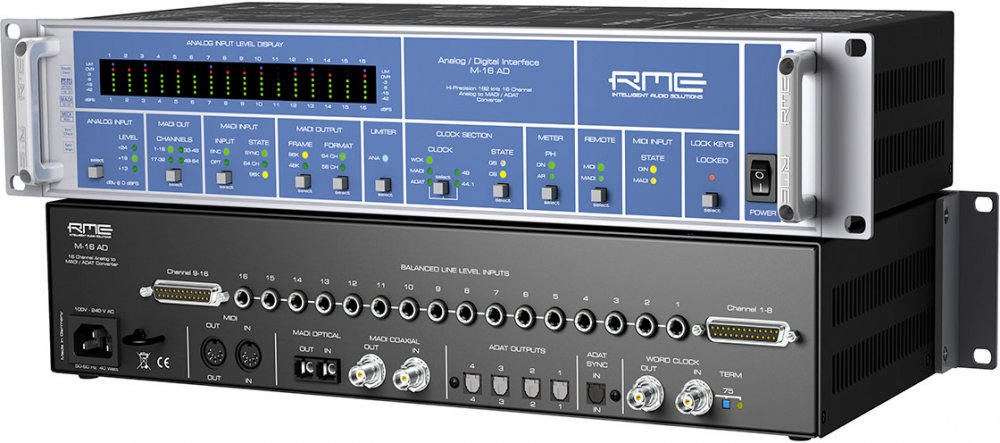

The M16D combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock, resulting in a state-of-the-art AD conversion - 32 times!



The unit's unique set of features includes analog limiters, three hardware reference levels up to +24 dBu, MADI and ADAT I/O up to 192 kHz, 6.3 mm TRS and D-sub inputs, remote control via MIDI, and operation across a wide range of mains voltages, all packed into a 2U enclosure. An extraordinary limiter, conceived and optimised for professional studio, stage, and broadcast applications, offers essential operational safety with its capability to limit an input's overload of up to 17 dB without audible distortion (max. input level + 30 dBu).

The M16D provides multichannel conversion in reference quality - at an unbeatable price/performance ratio!

Features

  • 16-channel AD converter, fully symmetrical design, 116 dBA
  • 19" enclosure with only 2 units height
  • 1 x MADI I/O, 32 chanels @ 96 kHz, 16 channels @ 192 kHz
  • 4 x ADAT Out, 16 channels @ 96 kHz, 8 channels @ 192 kHz
  • Automatic Delay Compensation: no user operation necessary when stacking units
  • Analog limiter can be activated
  • 16 LED level meters with 5 LEDs each
  • 16 LEDs to display the Limiter state per channel
  • SteadyClock(TM) - pristine sound quality independently from the quality of the external clock signal
  • SyncCheck(TM) - unique technology to check clock synchronization
  • All settings are stored permanently
  • Fully remote controllable via MIDI and MIDI over MADI
  • No fan
  • Lower power consumption, 40 Watts
  • Specifications

  • Input AD: 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path
  • Output AD: 4 x ADAT optical, 1 x MADI optical/coaxial
  • Dynamic Range AD: 113 dB RMS unweighted, 116 dBA
  • THD AD: < -110 dB (< 0.00032 %)
  • THD+N AD: < -104 dB (< 0.00063 %)
  • Crosstalk AD: > 130 dB
  • Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu
  • Frequency response AD, -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)
  • Frequency response AD, -0.5 dB: < 5 Hz - 45 kHz (sf 96 kHz)
  • Frequency response AD, -1 dB: < 5 Hz - 80 kHz (sf 192 kHz)
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)
  • Jitter: Typical < 1 ns for internal, Word Clock, ADAT and MADI input
  • Jitter sensitivity: all PLLs operate error-free even at 100 ns
  • Jitter suppression: > 30 dB (2.4 kHz)
  • Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
  • Dimensions: (WxHxD) 483 x 88 x 200 mm
  • GTIN (UPC/EAN) : 4260123362584
    Manufacturer Part Number : M16AD
