The OctaMic II provides 8-Channel 192 kHz / 24 bit AD conversion with eight hi-class microphone and line pre-amplification channels.
Lowest distortion, excellent signal to noise ratio and perfectly linear frequency response transmit and amplify the microphone signals truly unchanged.
The OctaMic II includes some significant enhancements compared to the OctaMic:
The balanced TRS inputs of the Neutrik Combo XLR jacks are phantom power-free and can be operated as real line inputs too. The improved design of the input circuits allows for a maximum input level of +21 dBu with a convenient gain range from 6 dB up to 60 dB.Improved signal to noise ratio (SNR) ADC 107.5 dBImproved THD, especially at higher gainsOptimised heat dissipation by a new and larger housing with improved convectionInternal wide range power supply with line filter, insensitive to voltage fluctuationsSuper-stable, short circuit proof 48 V phantom power

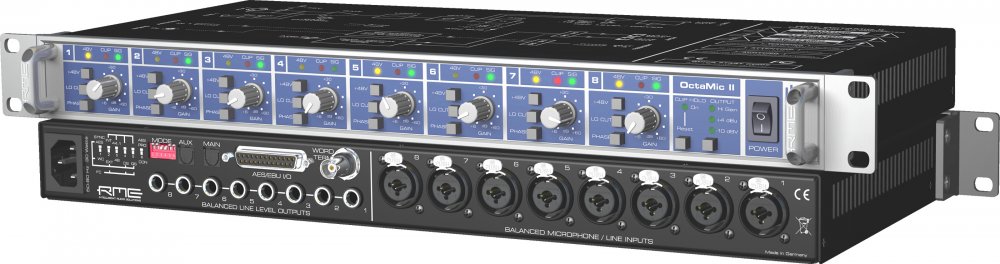

OctaMic II offers 8 balanced XLR mic / line inputs via Neutrik XLR/TRS combo jacks. Each channel contains switches for 48V phantom power, a low cut filter and phase reversal. Amplification can be set between 6 and 60 dB. LEDs for signal, clip, and activated phantom power give a complete overview on the unit's status. When the special Clip Hold mode is activated, any detected clip-state will cause the corresponding LED to flash once per second. With this, the user gets a long-term peak detection, and no longer needs to constantly watch the LEDs. At the same time momentary overloads are still displayed correctly.
Frontside switches include power on/off and output level, for a choice of -10 dBV, +4 dBu or Hi Gain (+19 dBu) as reference level. This unusual feature offers two advantages. First, the reference level can be easily switched to match any of RME's current interface devices, from HDSP 9632 through Multiface up to the renowned ADI-8 series converters. Second, the Signal to Noise ratio is optimized, and the Clip-LED will exactly match the ones of the ADI-8 (2 dB below 0 dBFS).
The balanced line level output signal is available at the back of the unit via 8 stereo TRS jacks. The specially developed, internal hi-performance switch mode power supply lets the OctaMic II operate in the range of 100V to 240V AC. It is short-circuit-proof, has an integrated line-filter, is fully regulated against voltage fluctuations, and suppresses mains interference.
The 8-Channel AD-conversion of the OctaMic II operates at up to 192 kHz. The digitized signal is available simultaneously at the double ADAT output (S/MUX, up to 96 kHz), and at a DB-25 connector (4 AES/EBU outputs, up to 192 kHz). The digital part can be clocked internally (master) and externally via word clock, AES/EBU and SPDIF.
RME's outstanding SteadyClock(TM) ensures perfect AD-conversion, as jitter on the external sync-sources is nearly completely removed. All settings are done via DIP-switches on the back of the OctaMic II. Analog outputs and both digital outputs operate fully simultaneously. The choice of reference level affects the analog outputs only, the signal/clip indication and the AD-conversion will react only to the Gain-pots.
8 x Mic / Line Preamp Input (XLR/TRS Combo)8 x Line Output (TRS balanced)8 x AD-converter (up to 192 kHz)2 x ADAT Output (S/MUX, up to 96 kHz)4 x AES/EBU Output (D-sub, up to 192 kHz)1 x AES/SPDIF Sync InputPhase, Low Cut and Phantom power per channelClip Hold Memory
8 balanced XLR/TRS mic/line inputs54 dB gain rangeInput impedance: XLR 2 kOhm, TRS 5 kOhmAnalog input level: from -40 dBu up to +21 dBuMaximum output level: +21 dBuOutput impedance: 75 OhmOutput level switchable Hi Gain / +4 dBu / -10 dBVSignal to noise ratio (SNR): 129 dB EIN @ 150 OhmTHD: < 0.0005 % @ 30 dB GainLarge frequency range (200 kHz) with special EMI input filteringFrequency response -0.5 dB: 5 Hz - 200 kHzHi-pass filter: 80 Hz, 18 dB/oct.Line Out: 1/4" TRS (6.3 mm stereo jack), servo-balancedPhantom power: +48 Volt switchable per channelInternal wide range switching power supply 100-240 Volt ACSNR: >110 dB(A)Supported sample rates: 28 kHz - 200 kHzTHD: < 0.0003 %, < -110 dBSync Sources: AES/EBU (also SPDIF coaxial), wordclock, internal
GTIN (UPC/EAN) : 4260123362331
Manufacturer Part Number : OCTOMICII
