Universal microphone shock-mount ideal for microphones weighing 400 grammes or less (will hold up to 750 grammes in a vertical position) & between 18mm and 55mm in diameter.
For several years, Rycote InVision mounts have been available for narrow-barrelled shotgun and stick microphones in broadcast and videography applications, but not until 2010, and the release of the striking Universal Studio Mount (USM) was there an InVision shock-mount capable of accommodating large-diaphragm recording microphones for use in recording studios.

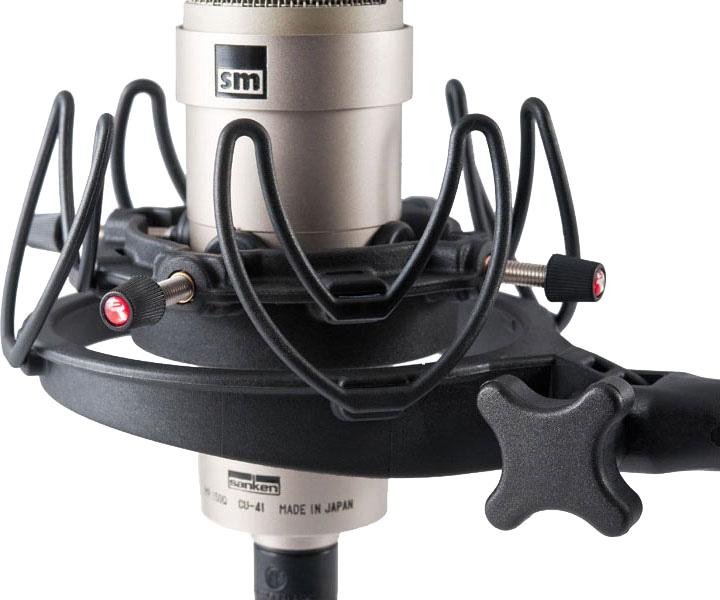

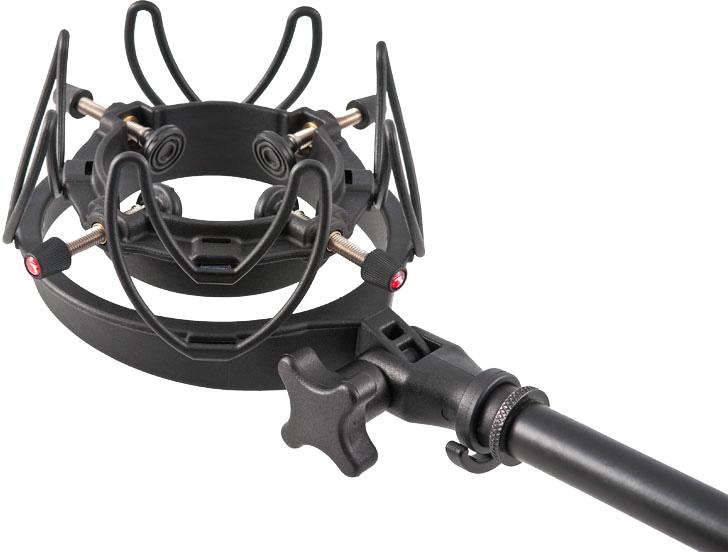

Like the other InVision mounts, the USM makes use of Rycote's patented vibration-resistant Lyre mount, but on this mount the W-shaped Lyres are placed around a central mounting ring with adjustable fasteners, allowing the USM to accommodate any microphone with a diameter of between 18 and 55 millimetres.
The Rycote USM updates the concept of the microphone suspension for the 21st century, completely omitting any elasticated parts and using modern materials to create a virtually indestructible shock-mount with a performance that far outstrips that of the humble 'cat's cradle' suspension. In controlled tests at the Rycote factory, the USM provided up to twice the isolation of traditional microphone suspension systems.
Product Code: 044903
Fits any large-diaphragm recording microphone with a diameter between 18 and 55mm
Complete Pop Filter and Suspension System
USM offers up to 12dB better isolation against unwanted vibrations
Pop Filter provides up to 20dB pops and thumps attenuation, with no HF loss
Width: 120 mm
Length: 170 mm
Height: 70 mm
Weight: 0.16 g
Large-diaphragm recording microphones
Microphone Diameters: 18-55 mm
Microphone Length (up to): 300 mm
Maximum Weight (vertical): 750 g
Maximum Weight (horizontal): 500 g
Suspension Rotation (maximum) 175°
Additional specifications for InVision USM #044901
