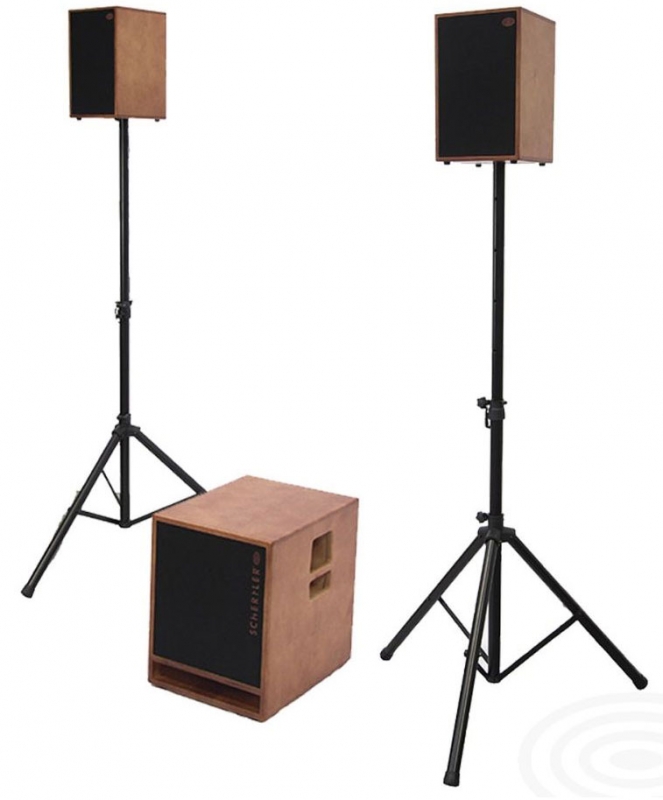

The TOM Wood is a 1000W (500+250+250) analog amplification system consisting of a compact active subwoofer and two passive satellites
The former Pocket Two system has been re-engineered for professional use, featuring an enhanced design and several new control features, such as a mono/stereo switch, for greater flexibility. The subwoofer is constructed using BJT technology, incorporating a linear power supply for excellent bass response and efficient stereo effect. Sub levels can be adjusted from -7dB to +2dB. Each satellite contains a passive crossover featuring a custom coil.
TOM has been specifically developed for use in medium to large sized indoor and outdoor venues, providing powerful coverage for a range of mobile sound reinforcement applications. Easy to transport and set up, the system is also highly effective for live performance situations, proving ideal for acoustic instrument amplification.
Insulated padded bags can be separately purchased for the system components, ensuring safe transportation and storage.
TIM & TOM are available in a choice of wood or anthracite finishes. The more delicate wood finish is perfect for studio or home use, blending with a range of room interiors. The anthracite finish is designed for performance and touring applications, where a more robust exterior finish is required.
Frequency response: 45 Hz- 150 Hz
Sensitivity @ 1W/1m: 99.0 dBSPL
SPL max (calc.): 126 dBSPL
Crossover: Electronic - 24dB/octave
Ferrite magnet circuit
Voice coil diameter 65 mm
Power Handling (Continuous/Peak): 500W/800W
XLR Input (2)
XLR Output (2)
Speakon Output (2)
Impedance: 10 k @ 1 kHz for XLR line
Input sensitivity: XLR 0 dBu (0.775 Vrms) in balance mode
Controls: Volume, Ground Lift Switch, mono/stereo
Box: 18 mm Plywood, bass reflex
Stand Mounting: Top hat composed of welded steel tube ø 36 mm, h=77 mm
Dimensions (LxDxH): 360 x 495 x 490 mm
