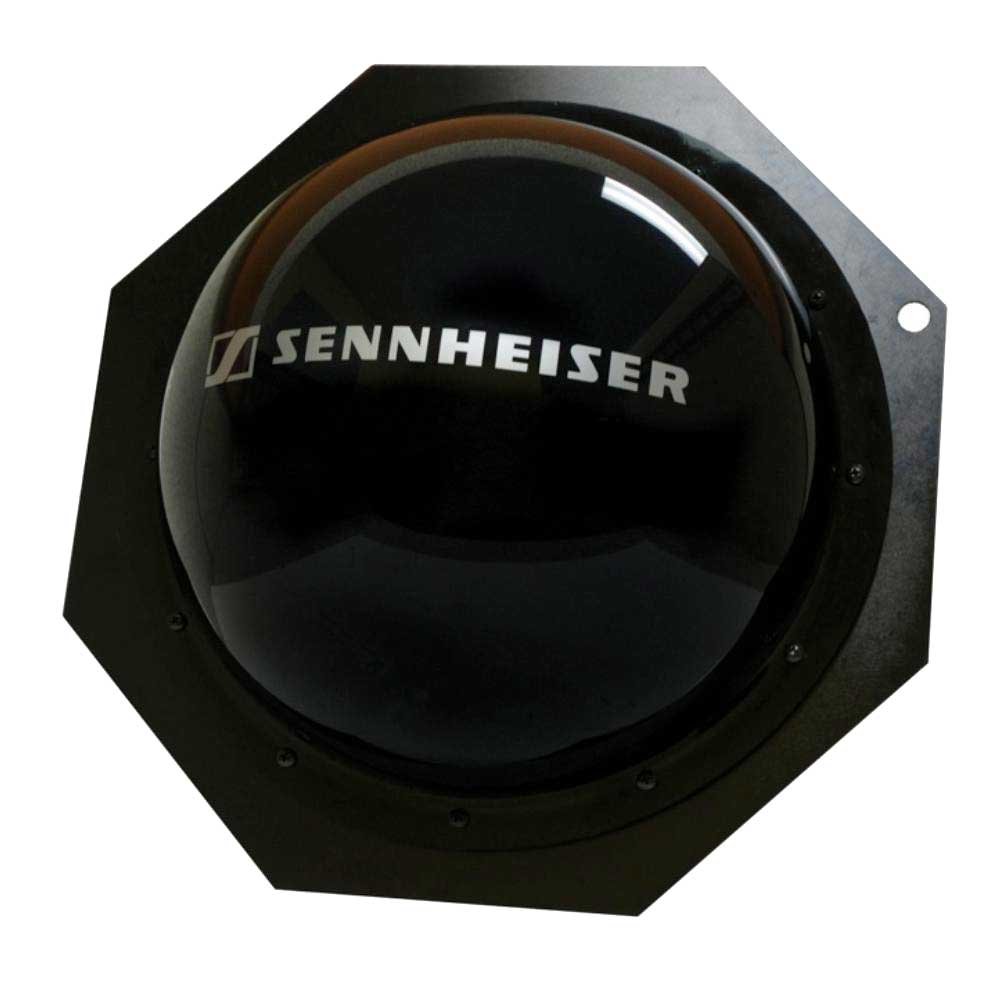

Sennheiser A 5000-CP
MPN #500887
Passive Circulary Polarized UHF Wide-Band Antenna for Wireless Microphones and Monitor Systems (450 - 960MHz)
The A 5000-CP passive antenna provides an optimum solution for both transmitting and receiving RF signals throughout the UHF spectrum. Installations have demonstrated that the circular polarization of this antenna minimizes variations in signal strength and almost eliminates multipath problems, a primary cause dropouts. The gain of this antenna over the entire UHF band is superior to common `off the shelf' antennas.
The wideband design (450-960MHz) of the A 5000-CP allows it to accommodate antenna distribution systems for either wireless monitors or wireless microphones across multiple frequency ranges, offering maximum flexibility when designing complex RF systems.
Features
High GainMinimized MultipathBroadband
Specifications
Dimensions
356 x 356 x 140 mm
Connector
N (female)
Weight
3.1 Ibs. (1.41 kg)
Gain
8 dBi
Frequency range
3db: 450 - 960 MHz
What's in the Box
A 5000-CP
Adapter BNC to N
User Manual
