Sennheiser AC 41-US
UPC/EAN #615104314535
MPN #508244
$1050.00
Save 14.6%, MSRP $1229.00

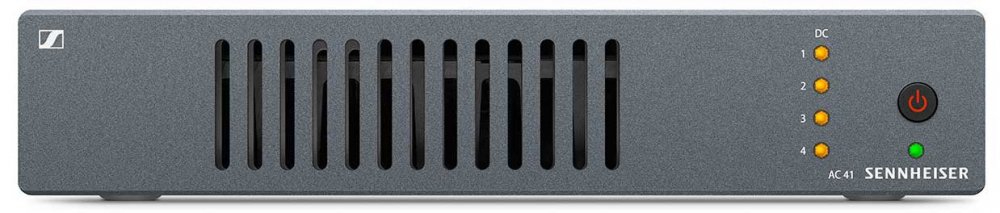

Active antenna combiner for evolution wireless G4 systems. The AC 41 operates up to four wireless stereo transmitters from the ew series using one shared antenna.

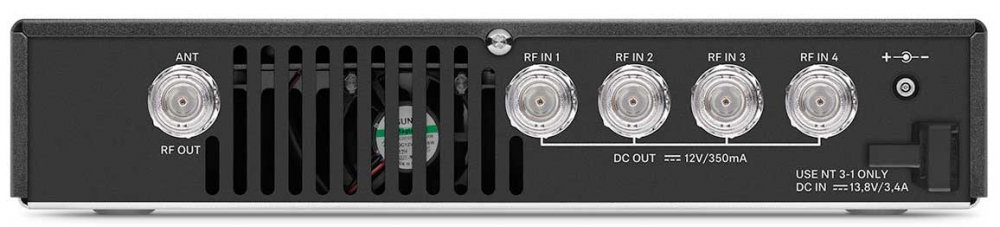

Power is supplied to the SR IEM G4 transmitters over the BNC cables via NT 3-1 power supply (included with the AC 41), making separate power supplies for the transmitters obsolete.
Features
Up to 4 wireless stereo transmitters using one antennaPower supply via BNC cables ensures efficient powering, no need for additional power supply units for the SR IEM G4Compatible with G4 and G3 systems
Specifications
Frequency range:
470 - 870 MHz
470 - 608 MHz
Impedance: 50
Dimensions: approx. 212 x 168 x 43 mm
Weight: approx. 1470 g
Power consumption: max. 3.4 A (with connected transmitters)
Storage temperature: -20 °C to +70 °C (-4 °F to 158 °F)
Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
Power supply:
13.8 V DC (with tabletop power supply unit NT 3-1)
11.4 V DC (protected against reverse supply), 350 mA
RF input: max. 30 mW per input
Transmission loss: 0 dB (±1 dB)
Operating relative humidity: 5 to 95 %
What's in the Box:
1x Active antenna splitter (470-870 MHz EU & UK / 470 - 608 MHz US)
1x NT 3-1 power supply with either EU, UK, US adapters
4x BNC interconnect cables
