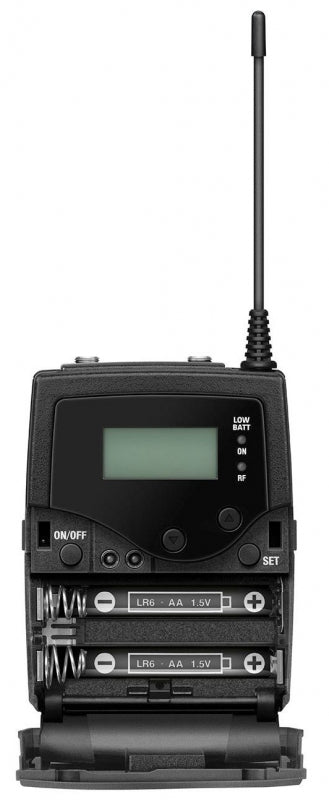

EW 500 G4 is a powerful black camera receiver with increased bandwidth and transmission power for evolution wireless G4 500P Series systems.
For professional film productions, easily mounted on any kind of camera.
Caractéristiques
Professional sound and excellent construction quality
Easy to use and fast setup time
Easy and flexible wireless synchronisation between transmitter and receiver via infrared
Up to 88 MHz bandwidth, up to 32 channels
Range: up to 100 meters / 330 feet
Increased RF output power (10/30/50 mW)
Up to 8 hours of operation time
Spécifications
Frequency range: Aw+: 470-558 MHz Dimensions: Approx. 82 x 64 x 24 mm Compander: Sennheiser HDX
What's in the box
EK 500 G4 camera receiver
2 AA batteries

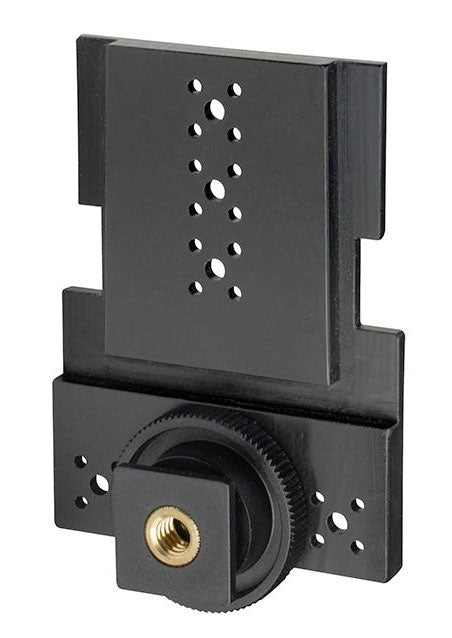

CA 2 camera adapter
CL 1 3.5 mm jack cable
CL 500 XLR to 3.5 mm jack adapter cable
quick guide
safety guide
manufacturer declaration sheet
Dimensions: Approx. 82 x 64 x 24 mm Compander :Sennheiser HDX THD, total harmonic distortion: 0.9 % Weight (incl. batteries): approx. 130 g Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced) Signal-to-noise ratio: Line: 110 dBA, Phones: approx. 90 dBA Switching bandwidth: up to 88 MHz Peak deviation: ±48 kHz Nominal deviation: ±24 kHz Operating time: Typically 8 h Modulation: Wideband FM Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 140 mA
with receiver switched off: 25 µA
Adjacent channel rejection: Typically 65 dB Intermodulation attenuation: Typically 65 dB Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 3520 receiving frequencies
adjustable in 25 kHz steps
20 frequency banks
each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels
