$749.00

Save 20.2%, MSRP $939.00
Free shipping in Canada. Conditions

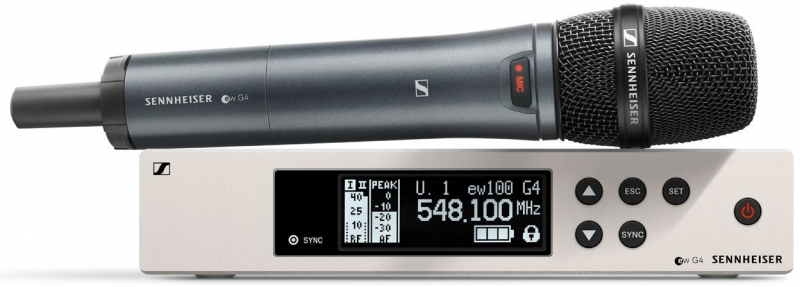

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast,



simultaneous setup of up to 12 linked systems.

State-of-the-art live sound featuring Sennheiser's renowned e 835, e 845 and e 865 capsules on a lightweight aluminum transmitter with integrated mute switch.

Features

  • Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
  • State-of-the-art live sound featuring Sennheiser's renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations
  • Specifications

    EM 100 G4
    Frequency range: A1: 470-516 MHz
    Dimensions: Approx. 190 x 212 x 43 mm
    Compander: Sennheiser HDX
    THD, total harmonic distortion: 0.9 %
    Weight: Approx. 980 g
    Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
    Signal-to-noise ratio: 110 dBA
    Switching bandwidth: up to 42 MHz
    Peak deviation: ±48 kHz
    Nominal deviation: ±24 kHz
    Modulation: Wideband FM
    Power supply: 12 V DC
    Antenna connector: 2 BNC sockets
    Current consumption: 300 mA
    Adjacent channel rejection: Typically 65 dB
    Intermodulation attenuation: Typically 65 dB

    Receiving frequency
  • Max. 1680 receiving frequencies
  • Adjustable in 25 kHz steps 20 frequency banks
  • Each with up to 12 factory-preset channels
  • No intermodulation 1 frequency bank with up to 12 programmable channels

  • RF sensitivity: < 2.5 V for 52 dBA eff S/N
    Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBV
    Equalizer:
  • Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)

  • Temperature Range: -10 °C to +55 °C
    Receiver Principle: True diversity
    Blocking: 70 dB

    SK 100 G4
    Frequency range:
    Dimensions: Approx. 82 x 64 x 24 mm
    Compander: Sennheiser HDX
    THD, total harmonic distortion: 0.9 %
    Weight (incl. batteries): approx. 160 g
    Signal-to-noise ratio: 110 dBA
    RF output power: Max. 30 mW
    Switching bandwidth: up to 42 MHz
    Peak deviation :±48 kHz
    Nominal deviation: ±24 kHz
    Operating time: Typically 8 h
    Modulation: Wideband FM
    Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
    Current consumption at nominal voltage: typ. 180 mA
    with transmitter switched off: 25 µA
    Input impedance: 40 k, unbalanced / 1 M
    Max. Input voltage: 3 Veff
    Powering: 3 V battery / 2.4 V rechargeable battery

    Transmission frequency
  • Max. 1680 transmitting frequencies
  • Adjustable in 25 kHz steps 20 frequency banks
  • Each with up to 12 factory-preset channels
  • No intermodulation 1 frequency bank with up to 12 programmable channels

  • AF frequency response
  • Mic: 80 - 18,000 Hz
  • Line: 25 - 18,000 Hz

  • Temperature Range: -10 °C to +55 °C
    Frequency stability: ±15 ppm

    MMD 835-1
    Sound pressure level (SPL): 154 dB SPL
    Transducer principle: dynamic
    Pick-up pattern: cardioid
    Sensitivity: 2.1 mV/Pa
    GTIN (UPC/EAN) : 615104308725
    Manufacturer Part Number : 507886
